how dimples affect the golf ball flight

by Dante DuBuque Published 3 years ago Updated 2 years ago

  • As the air hits the dimples on a golf ball, small pockets of turbulence are created. ...
  • The air flowing over the ball thus sticks closer to the ball’s surface and flows off the ball further back.
  • This creates a smaller wake, which means less drag and a ball that flies farther and smoother.

Dimples on a golf ball create a thin turbulent boundary layer of air that clings to the ball's surface. This allows the smoothly flowing air to follow the ball's surface a little farther around the back side of the ball, thereby decreasing the size of the wake.Sep 19, 2005

Full Answer

Why are there dimples on a golf ball?

The dimples that are made on the surface of a golf ball during manufacture are purposefully designed to affect the ball in flight, including how far or how short the ball will travel after being hit. The reason why dimples affect the distance the ball can go is because the dimples on the surface of the ball cause the ball to spin in the air.

How does the shape of a golf ball affect its lift?

Dimples also affect lift. A smooth ball with backspin creates lift by warping the airflow such that the ball acts like an airplane's wing. The spinning action makes the air pressure on the bottom of the ball higher than the air pressure on the top; this imbalance creates an upward force on the ball.

What are dimples and how do they work?

The dimples work to break the air around the ball in flight, and have two key characteristics that are measured: Lift and Drag. The ideal dimple design is a combination balancing the lift and drag of the ball. We vary the diameters, shapes, total coverage, edge angles to control these two key variables.

How many dimples are on the my tour ball?

There are 350 dimples on the MY TOUR BALL. Most all golf balls run between 300 and 400 dimples.. The number is not the important factor. We control the size, shapes, depths, edge angles to get the proper flight and trajectory for the ball based on the spin rates of the balls.


Is it better to have more or less dimples on a golf ball?

The number of golf ball dimples is less important than the shape and depth of the dimples. The number of dimples can affect drag, so it is important to not have too many dimples. Between 330 and 400 dimples is the optimum number. More dimples mean more focussed control over the ball trajectory.

Are dimples more aerodynamic?

First, dimples allow air to flow more smoothly around a ball's surface, which decreases the wake and low-pressure area behind the ball, resulting in less drag. Second, the dimples increase lift by causing the air to move faster at the top of the ball, creating lower pressure there.

Do dimples on a golf ball increase drag?

Golf ball dimples reduce drag by creating a turbulent boundary layer flow around the ball. The boundary layer is defined as a thin layer of fluid dragged by the ball. By creating this turbulent boundary layer, the separation point decreases.

How the Magnus effect affects the flight of dimpled and non dimpled golf balls?

The Magnus lift now points down. The dimples aid the rapid formation of a turbulent boundary layer around the golf ball in flight, giving more lift. Without them the ball would travel in more of a parabolic trajectory, hitting the ground sooner (and not coming straight down).

What is the effect of dimples?

The dimples act as artificial turbulators, creating turbulence next to the ball surface and creating two layers of air going around the ball. The top layer is going faster than the bottom layer, i.e., air clings to the ball's surface, which creates turbulence.

How many dimples does a Titleist Pro V1 have?

388 dimpleNew Spherically-tiled Tetrahedral Dimple Designs– featuring a 388 dimple layout for Pro V1, and 348 for Pro V1x – are optimized to each model to maximize distance and flight consistency.

Why are there 336 dimples on a golf ball?

Essentially, golfers would have little hope controlling a smooth golf ball. When dimples are added to a golf ball, it creates a tiny layer of air around the golf ball that significantly cuts down drag. This forces the air to flow over a larger portion of the ball, which results in a much smoother ball flight.

What makes a golf ball fly?

The circular motion of a golf ball as it travels through the air. As a ball moves forward through the air, the dimples cause the ball to actually spin backwards, pulling the airflow downwards. As this happens, the air at the bottom of the ball pushes up against the ball, creating more lift.

Why do cars not have dimples in golf balls?

The dimples in a golf ball promote an earlier transition to turbulent flow and thus reduce the pressure drag of the golf ball, so it can fly further. In a car, the size is large enough to develop a turbulent boundary layer early on. Dimples would not help, but increase drag slightly.

What is the Magnus effect on a golf ball?

They wouldn't refer to it, but it is all thanks to what is called the Magnus Effect, which effects all rotating balls or cylinders when they fly. As a ball picks up speed, air on the front side of the ball is going in the same direction as it's spin. Therefore, it gets dragged along with the ball and deflected back.

How many dimples does a Callaway golf ball have?

Typically though, there are 300-500 dimples on any branded golf ball. For example, TaylorMade has 322 while Callaway has 332 dimples. Then there's Titleist Pro V1, one of the best beginner golf balls, with 352 dimples.

Why is the Magnus effect important?

This concept is important in understanding the physics behind many ball sports. Some aircraft have been built that use the Magnus effect to lift using a rotating cylinder at the front of a wing, this allows the flight at lower horizontal speeds. It is used in external ballistics.

Do dimples make a car faster?

Adam Savage and Jamie Hyneman at Mythbusters tested 3 Ford Taurus cars: one normal car, one car covered in smooth clay, and one covered in clay with 1,082 dimples scooped out. Sure enough, while the smooth cars could drive 26 miles on a gallon of gas, the dimpled car drove almost 30 miles!

Why are dimples aerodynamic?

Dimples on a golf ball create a thin turbulent boundary layer of air that clings to the ball's surface. This allows the smoothly flowing air to follow the ball's surface a little farther around the back side of the ball, thereby decreasing the size of the wake.

Why don't we put dimples on cars?

The dimples in a golf ball promote an earlier transition to turbulent flow and thus reduce the pressure drag of the golf ball, so it can fly further. In a car, the size is large enough to develop a turbulent boundary layer early on. Dimples would not help, but increase drag slightly.

Do dimples reduce skin friction?

Putting dimples on surface will increase the friction drag but will reduce the pressure drag by having the turbulent boundary layer attached farther before separation.

What are golf ball dimples?

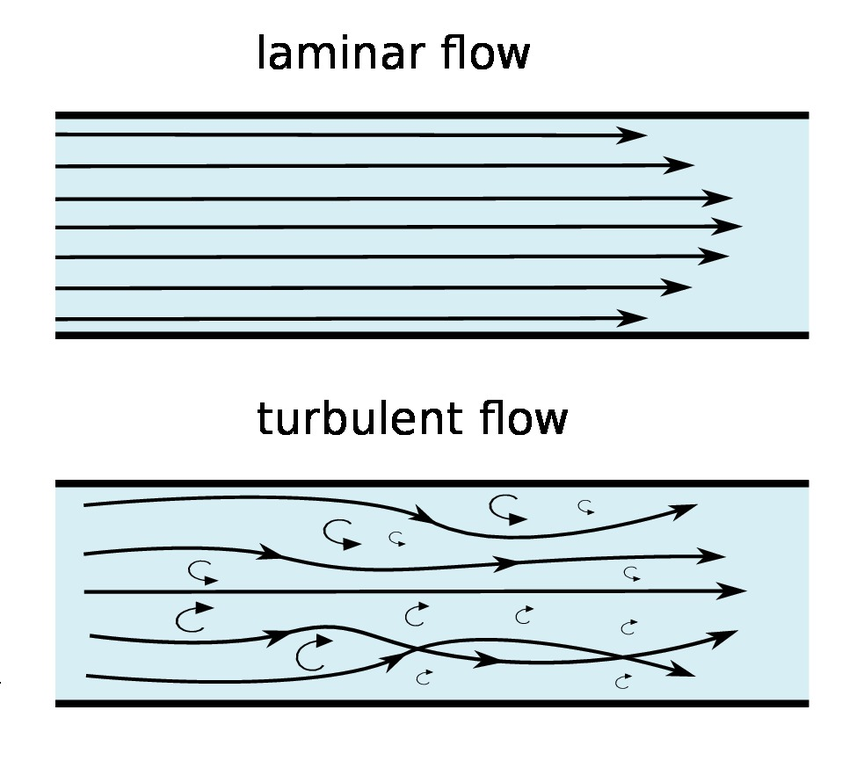

Golf ball dimples and their impact on the ball traveling through the air can be described using fluid dynamics. Basically, there are two types of fluid dynamic flows : laminar and turbulent. In general, many real-life applications are turbulent in nature. This can generally be obtained from a factor called Reynolds number.

How many dimples are there on a golf ball?

The number of dimples on the golf ball is usually between 330 and 500. Golf balls are usually covered with dimples in a highly symmetrical way. The ball will wobble if it’s not symmetrical, or its flight will depend on which part of the ball faces forwards or sideways as the ball spins.

What side of the ball does the ball curve?

Assume that there are dimples on only one side of the ball. The ball tends to curve towards the side with the dimples since the wake is generated towards the side which is smooth. For example, if the ball shown in the below figure is being hit along the same viewing direction, it will travel towards the left.

Why is the reduction of drag important in golf?

Now back to our story; the reduction of drag allows the flight of the golf ball to be faster due to the decreased resistance. Similar to drag, there is another component called “lift”. Lift occurs when the fluid is turned by the solid, which creates an opposing force.

What is the effect of the spin on a golf ball?

The spinning action makes the air pressure on the bottom of the ball higher than the air pressure on the top, and this imbalance creates an upward force on the ball. Ball spin contributes to half of a golf ball’s lift. The other half of lift is provided by the golf ball dimples, which allows for optimization of the lift force.

What is the Magnus effect in golf?

What if the spin is around any of the other two axes? That’s the world famous Roberto Carlos or Beckham’s rocket kick in football. The ball gets to travel in a projectile, and this effect is called the “ Magnus effect “. A similar effect can be seen in the game of cricket when a fast bowler tries to swing the ball.

Which layer of the ball is going faster?

The top layer is going faster than the bottom layer, i.e., air clings to the ball’s surface, which creates turbulence. This reduces the drag and helps the ball to travel farther than a smooth one. This is another new term: drag.

Why are dimples important in golf?

Once we have the final ball design, we measure the spin rates of the golf balls, then design the dimples to optimize the flight. If you have a higher spinning ball, you would look to make the dimples a little deeper, to help keep the flight down. For lower spinning balls, the dimples are ...

How many dimples are in a golf ball?

Most all golf balls run between 300 and 400 dimples.. The number is not the important factor. We control the size, shapes, depths, edge angles to get the proper flight and trajectory for the ball based on the spin rates of the balls.

How do dimples work?

The dimples work to break the air around the ball in flight, and have two key characteristics that are measured: Lift and Drag. The ideal dimple design is a combination balancing the lift and drag of the ball. We vary the diameters, shapes, total coverage, edge angles to control these two key variables. If you get the dimples wrong, you can be substantially short in distance and that is for sure not preferred!

How do dimples affect golf ball spin?

The number of dimples on a ball affects the drag of the ball, not necessarily the spin. The spin of the ball is affected by the depth of the dimples. Shallower dimples mean more spin. The way the dimples on a golf ball are shaped and laid out is more important than the actual number of dimples on the ball.

How does the number of dimples affect the drag of the golf ball?

This means that if you prefer a golf ball to move a little more slowly through the air to compensate for a specific swing or hit style , then the highest number of dimples you can find will be the way to go.

Do Dimples Make A Golf Ball Fly Farther?

Dimples that are on a golf ball are specifically and intentionally designed to alter the aerodynamic properties of the ball while in the air. Part of this is the distance that the ball travels.

What Is The Optimal Number Of Dimples On A Golf Ball?

There is such a wide range of dimples used for golf balls. Some have many, and others have few, but what is the optimal number of dimples on a golf ball?

How Do Dimple Patterns Affect A Golf Ball?

The number of dimples that are on a golf ball is a factor, but what about the pattern of the dimples and how they are shaped? How do dimples patterns affect a golf ball?

What are dimples on golf balls?

The dimples that are made on the surface of a golf ball during manufacture are purposefully designed to affect the ball in flight, including how far or how short the ball will travel after being hit.

Why does a golf ball spin less?

If the golf ball has deep dimples, it spins less while in the air than if it were to have shallow dimples. This also means that the size of the dimples is important for how the ball spins.

How do dimples affect golf ball lift?

A golf ball’s lift comes from its spin. The spinning motion of a golf ball causes the pressure beneath the ball to be greater than the pressure above, which causes lift. The dimples optimize the spinning effect by cutting down drag and increasing the ball’s lift.

Why do golf balls have dimples?

A golf ball’s dimples allow for a smooth, controllable flight and also give the ball lift by impacting the way the air flows around the ball. There is science behind the design, and the dimples are not just for show.

Are All Golf Ball Dimples the Same?

After learning how vital dimples are to a golf ball’s success, you may be surprised to learn that golf ball dimples are not regulated. They can have different shapes, different depths and appear in varying amounts on balls.

Why are dimples important in golf?

Aerodynamics is all about altering the lift and drag on an object, and this is the purpose of the dimples on a golf ball. Aerodynamics is extremely important in the game of golf.

How does a golf ball travel?

To get your ball to travel, you also need lift, and golf ball dimples are key in this aspect as well. About half of the lift you get on a golf ball is caused by the spin on the ball, but the other half is due to how well the dimples optimize this spinning.

How deep is a golf ball dimple?

The average depth of a golf ball dimple is 0.010 inches, but this too can vary slightly.

What happens when air flows over a ball?

The air flowing over the ball thus sticks closer to the ball’s surface and flows off the ball further back.

What do the Dimples on a Golf Ball do to Ball Flight?

A great alternative to this question is, what would happen if there were no dimples on the golf ball? This experiment was conducted by Titleist several years back, and the result was a line drive type shot that wavered on its line. The ball only went about half as far as a dimpled ball, and the ball flight was not nearly as high.

Why do golf balls have dimples?

Very simply stated, if a golf ball were smooth, the air would flow quickly over the top and create quite a bit of turbulence behind the ball.

Are There Different Dimple Patterns and How Do They Affect Ball Flight?

Most golf ball dimples are spherical. They follow a pattern, and generally, one will be shallow, followed by a deep dimple across the surface of the golf ball. Major manufacturers seem to be more likely to change materials or interior makeup of a golf ball before they alter the dimple pattern.

How Many Dimples Will Work Best for My Game?

If all this talk about golf ball dimples has you thinking that the number of dimples on your ball could be causing your slice, you are probably looking for a solution in the wrong place.

What is a dimple in golf?

Dimples give the golf ball the correct amount of lift and drag to promote the best possible result with each swing. Nick Lomas is the founder of GolfSpan, an avid golfer, not quite a pro but has over 15-years of experience playing and coaching golfers from all over the world.

How many dimples are there on a golf ball?

The average golf ball has about 336 dimples on it. Most have anywhere from 250 to 500. The interesting thing about dimples is that they must be symmetrical, but there is no limit to how many you can have on a ball. There was once a golf ball created with 1700 dimples on it.

When did golf balls start to have bumps?

Golf balls began to be produced with raised bumps on them until the very early 1900s.
