How does a golf cart pump work?

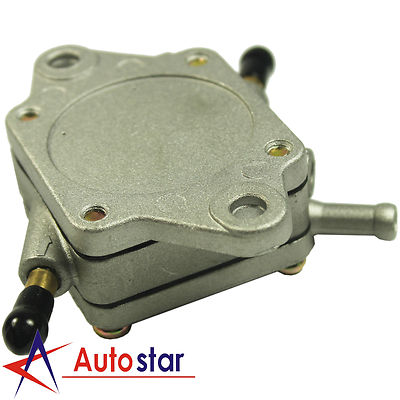

A golf cart pump has a simple design and is smaller than fuel pumps in other vehicles. It is a vacuum-powered pump that uses pressure from the crankcase. This pressure is called pulse and is generated at the bottom of a piston in the cart when the crankcase turns. The pump also has an inlet and an outlet.
How to test a fuel pump on a golf cart?
How to Test a Fuel Pump on a Golf Cart. Check the vacuum and fuel lines if the carburetor fails to get sufficient fuel. These lines are made of rubber and tend to deteriorate over time. Gas leaks or gas odors are signs of faulty fuel lines. A damaged vacuum line has a drastic effect on the fuel pressure as the power of the vacuum gets lost.
How does a fuel pump work?
The pump also has an inlet and an outlet. There are two diaphragms that separate the inlet, outlet and pulse from one another. When the diaphragms start pulsing, the fuel is moved from the gas tank to the inlet chamber. From here, the fuel gets transferred to the outlet chamber and then to the other parts of the engine.
What happens when a golf cart runs out of gas?
If your golf carts runs out of gas, the engine will stop running. This in turn stalls the cart and makes it difficult to control the braking and steering. The fuel line will be filled with air causing the fuel injectors to get clogged or the fuel pump to get damaged.
How do you fix a fuel pump on a golf cart?
10:2015:25Fixing My EZGo Golf Cart New Fuel Pump, Cleaned the Carb and it Runs!YouTubeStart of suggested clipEnd of suggested clipClean it up a little bit stick the new one on and we'll see what happens after a little bit ofMoreClean it up a little bit stick the new one on and we'll see what happens after a little bit of messing with it. The new fuel pump doesn't seem to want to like suck the fuel out of the fuel.
Does a gas golf cart have a fuel pump?
While cars and gasoline-powered golf carts both have fuel pumps, the two operate very differently, so we've put together a short guide to help you know how to check your fuel pump — and what to do if you're worried it isn't working correctly.
How do you test the fuel pump on a Club car DS?
Club Car DSTurn the engine of the golf cart on and remove the gas cap.Keep a rag around the filler hole.Blow hard into the gas tank. You may have to do this a few times until the engine starts purring and the fuel filter has fuel in it.
What causes a gas golf cart to stop running?
Your golf cart may stop frequently while running in case of a faulty spark plug, defective TCI/carburetor, or improperly seated internal baffles and airbox lid. Sometimes, an empty or close-to-empty fuel filler, low battery charge, a binding linkage, or a bad fuel pump can cause a golf cart to stop running.
Why is fuel not getting to the carburetor?
float may be stuck in the closed position or if carburetor equipped with a electric shut off/solenoid it could be faulty/stuck/bad connection. Now if you are getting fuel to carb. and the bowl is filling, either the jets are clogged or you have not adjusted the screws out to the proper settings to allow fuel to flow.
How do you test a fuel pump?
3:576:05How to Properly Test and Diagnose a Bad Fuel Pump - YouTubeYouTubeStart of suggested clipEnd of suggested clipSo you get your black test lead put it on the pen for the ground. And you can use the red test leadMoreSo you get your black test lead put it on the pen for the ground. And you can use the red test lead on the pen. That you verify that you have power to see if you get a reading.
Should fuel filter be full on golf cart?
Please keep in mind that the overall operations of the golf cart do not get affected if the fuel tank stays half full. The fuel filter on both new and older EZGO carts may not stay full due to the vacuum tube which connects the crankcase and the fuel pump, facing a glitch.
What would cause a gas golf cart not to fire?
First, try this: turn the key switch on, hit the accelerator, and check for a clicking noise. If you don't hear clicking, it's time to take a look at your cart's batteries. Make sure the battery is fully charged and the terminals are cleaned and secure. Next, see how the water level in the battery is holding up.
How much fuel pressure should a golf cart have?
To start, you want to make sure that you're working with a 2-4 psi fuel pump. This will be the right amount of pressure for your vehicle. When installing a fuel pump on a golf cart, you should power the pump from the starter motor side of the solenoid.
What makes a gas golf cart start?
In a car, the engine starts when you turn the key, and it keeps running until you switch the ignition off. In a gasoline-powered golf cart, the engine starts when you step on the gas pedal, and it shuts off when you take your foot off the gas.
What happens when golf cart solenoid goes bad?
What Happens To Your Golf Cart When The Solenoid Goes Bad? The large contacts in a gas golf cart may refuse to release, causing the starter to run even after turning off the ignition.
How do you reset a golf cart motor?
First, you'll want to reset your motor. It should have a small reset button (Usually it will be red) located near the main battery supply. Hit the reset button and then put the cover back on the motor. The next step would be to recharge your cart and try turning it on again. If it starts up then you're in luck!
How does a gas golf cart start?
In a gasoline-powered golf cart, the engine starts when you step on the gas pedal, and it shuts off when you take your foot off the gas. That feature helps save gas, cuts down on emissions and helps keep the course quiet, too.
What would cause a gas golf cart not to fire?
First, try this: turn the key switch on, hit the accelerator, and check for a clicking noise. If you don't hear clicking, it's time to take a look at your cart's batteries. Make sure the battery is fully charged and the terminals are cleaned and secure. Next, see how the water level in the battery is holding up.
Why won't My EZ GO start?
Check Ignition Wire If it has, reseat the wire into the solenoid. If the wire appears corroded, wear your work gloves and wipe down the wire and attempt restarting the golf cart. If the cart will not start, then you will need to replace the ignition wire.
How much fuel pressure should a golf cart have?
To start, you want to make sure that you're working with a 2-4 psi fuel pump. This will be the right amount of pressure for your vehicle. When installing a fuel pump on a golf cart, you should power the pump from the starter motor side of the solenoid.
How to test a golf cart fuel pump?
How to Test a Fuel Pump on a Golf Cart. Check the vacuum and fuel lines if the carburetor fails to get sufficient fuel. These lines are made of rubber and tend to deteriorate over time. Gas leaks or gas odors are signs of faulty fuel lines.
What happens if a golf cart runs out of gas?
If your golf carts runs out of gas, the engine will stop running. This in turn stalls the cart and makes it difficult to control the braking and steering. The fuel line will be filled with air causing the fuel injectors to get clogged or the fuel pump to get damaged.
How does a vacuum pump work?
It is a vacuum-powered pump that uses pressure from the crankcase. This pressure is called pulse and is generated at the bottom of a piston in the cart when the crankcase turns. The pump also has an inlet and an outlet. There are two diaphragms that separate the inlet, outlet and pulse from one another. When the diaphragms start pulsing, the fuel ...
How many diaphragms are there in a gas engine?
There are two diaphragms that separate the inlet, outlet and pulse from one another. When the diaphragms start pulsing, the fuel is moved from the gas tank to the inlet chamber. From here, the fuel gets transferred to the outlet chamber and then to the other parts of the engine.
Do golf carts need fuel?
However, golf carts that are used extensively, carry heavy loads or operate in high altitudes may require a higher-octane fuel. But this can be detrimental to the life of the golf cart as mentioned above. To overcome the problems, you can consider fitting a fuel stabilizer to the golf cart.
Can you put an electric fuel pump on a golf cart?
Yes, it’s possible to install an electric fuel pump on a golf cart. The fuel pump must be powered from that side of the solenoid, which features the starter motor. In other words, it must be connected from the large post of the solenoid that goes towards the starter. This ensures that the pump operates only when the starter gets running.
Can you fix a golf cart on your own?
Under NO circumstances should you attempt to fix your golf cart on your own. Doing so is dangerous and could result in serious bodily harm. The information on this website has not been verified for accuracy and should only be used for general information purposes only. Use this information at your own risk. The author (s) and owner of of golfstorageguide.com are NOT trained electricians, mechanics or technicians. The webmaster of golfstorageguide.com and the author (s) is not responsible for any loss in damages, financial loss, personal injury, or death. By using the content on this website, you agree to the terms outlined in this disclaimer.
Why is my fuel pump not working?
Fuel issues aren't always caused by the fuel pump. Performance problems could also be caused by issues involving the crankcase or engine. A leaky crankcase or damaged engine cannot produce effective power. You'll want to take a look for signs of an oil leak, a bad crankshaft seal, or issues with the case gasket.
What is crankcase pressure?
While the more generally recognized term "compression" refers to the pressure limits at the top end of the engine, crankcase pressure actually refers to the pressure present at the bottom end, below the piston. While the pistons move up and down, the crankcase pressure will vary; we call this a "pulse.".
Do golf cart fuel lines deteriorate?
Rubber vacuum and fuel lines will eventually deteriorate. This issue is far more common in older and pre-owned golf carts and ATVs that haven't been given regular tune-ups. If you're having problems with the fuel not making it to the carburetor, check the lines very closely.
