Carefully feed what remains of the lighting harness and its wires into the hole and press the light into the hole. If you drilled the mounting hole properly, your light should stay in place with no difficulty. You may need to go underneath of the cart and pull the light more tautly into the hole.
Full Answer
What voltage do golf cart lights come in?
If you want to use the golf cart lights a lot but don’t want to spring for a voltage reducer (see below), order a pair of 36 or 48-volt head & tail lights. These golf cart lights wire up to all the batteries in the pack and draw them all down evenly. The battery charger then recharges them all evenly and life is good!
Can you put a frame ground on an electric golf cart?
A frame ground is never recommended on any electric vehicle. See illustration below for proper wiring of 12 volt golf cart lights into a 36 volt system. Both of the systems outlined above work very nicely for golf cart lights that will be used only once in a while.
How do you Mount headlights on a golf cart?
Go to the battery and disconnect the negative terminal. A golf cart can have up to six batteries, so disconnect the negative terminal from each of the batteries. The batteries can be found under the front seat. Mount the headlights. For best visibility, try to mount them as high as possible. Use the mounting brackets to clamp the headlights.
How do you extend the life of a golf cart battery?
Use a voltage reducer to prolong the life of your batteries when adding golf cart lights or other electrical accessories. A voltage reducer will draw power evenly from your entire battery pack instead of just a couple batteries.
How do you hook up lights to an electric golf cart?
How to Wire Lights to a Golf Cart: Step-by-Step InstructionsMount the Lights. Disconnect the chassis black wire from the negative battery terminal on your golf cart. ... Mount the Toggle Switch. Mount the toggle switch for the lights on the driver's side of the dash. ... Wire the Lights. ... Secure the Wiring. ... Set the Toggle Switch.
How do you wire a 36 volt golf cart light?
If you have a 36-volt electrical system then it is easy to 'tap' into 12-volts. Wire the 'hot' lead to a positive battery terminal and run the ground wire back to the negative battery terminal on the next battery over that is connected to the first one.
Can you add lights to a golf cart?
Replacing lights in a golf cart can be easy with the right tools. It's easy to replace or add lights to a golf cart. This technique can be used for any golf cart, whether it is powered by gas or electricity. Before beginning, gather all of your tools and materials in one spot that you can easily reach.
How do you wire 12v lights on a 36v golf cart?
2:2914:30Wiring a One Wire 12 Volt Light On a 36 Volt Golf Cart - YouTubeYouTubeStart of suggested clipEnd of suggested clipBy from two to six volt batteries that's a consecutive order to give me 12 volts I have the hot wireMoreBy from two to six volt batteries that's a consecutive order to give me 12 volts I have the hot wire wired in at the main positive lead then get to the negative terminal.
How do you put lights on a Club Car golf cart?
0:166:30Light Kit for Club Car® Precedent® | How to Install Video - YouTubeYouTubeStart of suggested clipEnd of suggested clipToday we're installing a mad jacks light kit designed for a club car precedent included in the kitMoreToday we're installing a mad jacks light kit designed for a club car precedent included in the kit is the headlight and bumper to taillights a main wiring harness including a switch.

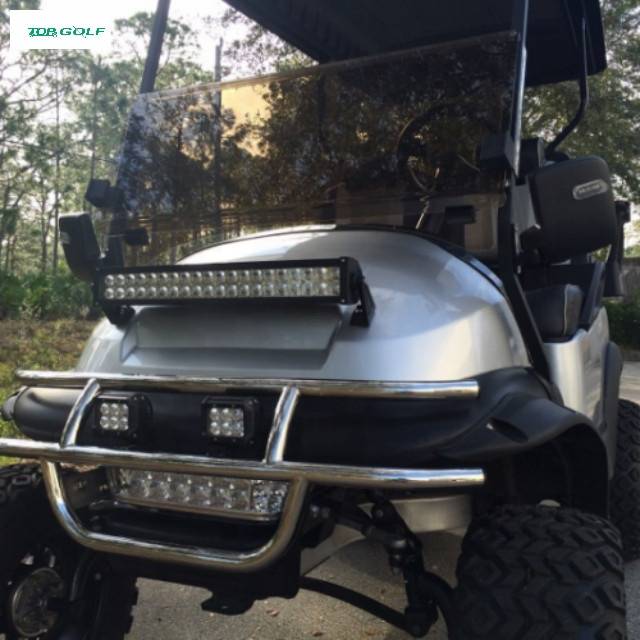

How do you wire a LED light bar to a golf cart?
1:347:30Light Bar | How to Install Video | Madjax® Golf Cart AccessoriesYouTubeStart of suggested clipEnd of suggested clipThe cover from the double sided tape on the backside of our light bar. Now you want to line yourMoreThe cover from the double sided tape on the backside of our light bar. Now you want to line your holes up. And press down firmly on the tape. Now that you have your light bar attached to your canopy.
How much does it cost to add lights to golf cart?
The street-legal kits cost an average of $400 and the available non-street kits cost an average of $250. For the EZGO RXV, there are the EZGO RXV light bar bumper kits for non-street legal and street-legal use. The non-street legal option costs up to $380 on average and is only available as an LED cart light kit.
What voltage are golf cart headlights?
12-voltsBrake lights, tail lights, turn signals, horns, headlights, radios, GPS and similar accessories on your golf cart use 12-volts.
How many amps do golf cart lights draw?
Light kits on average draw +/- 10 amps (based on head and tail lights only). So you have a total amp draw of 15-20 amps. Most voltage converters designed for golf carts have a total amperage rating of 30 amps.
How do you install a 12 volt outlet on a golf cart?
Pull the wire all through the body of the cart and up into the battery container. Now, attach the negative wire to the negative – usually black – terminal on your 12-volt battery. Drag the positive wire through the cart in the same way and connect it to the positive terminal.
How do you hook up 3 12 volt batteries in a golf cart?
2:544:2012 volt battery in a 36 volt golf cart. - YouTubeYouTubeStart of suggested clipEnd of suggested clipGive it a try so 36 volt easy go to mention with these batteries. These are deep cycle deep cycleMoreGive it a try so 36 volt easy go to mention with these batteries. These are deep cycle deep cycle power you have to get deep cycle batteries.
How do you wire 3 12 volt batteries to make 36 volts?
Items you will need Attach a wire running from the negative (-) terminal of the second battery to the positive (+) terminal of the third battery. The remaining two terminals should be the positive (+) on the first battery and the negative (-) on the third battery. These two terminals will now output 36 volts.
How to install golf cart lights?
Step 1. Disconnect the chassis black wire from the negative battery terminal on your golf cart. Then, mount your lights on either the front bumper or top of your golf cart if your cart has a roll bar. If it does not have a roll bar, then clamping the lights to the front bumper is the next best place to install the lights. Step 2.
Why don't golf carts have lights?
By Jackson Lewis. Most golf carts do not come with lights because their primary use is for the day on golf courses. A lot of people have begun using golf carts to get around large areas at work and at homes with large yards.
Do you need a mechanic to install lights on a golf cart?
If you use your golf cart at night for transportation, you should install lights to help you see where you are driving. You do not need to hire a mechanic to install lights on your golf cart. You can install lights on your cart in an afternoon.
How many batteries does a golf cart have?
Go to the battery and disconnect the negative terminal. A golf cart can have up to six batteries, so disconnect the negative terminal from each of the batteries. The batteries can be found under the front seat.
Can you replace lights on a golf cart?
Replacing lights in a golf cart can be easy with the right tools. It's easy to replace or add lights to a golf cart. This technique can be used for any golf cart, whether it is powered by gas or electricity. Before beginning, gather all of your tools and materials in one spot that you can easily reach.
Types of Golf Cart Electrical Accessories
Golf cart electrical accessories may include, but certainly are not limited to, gauges (gas, hour meters, speedometers, volt meters, and charge indicators), lights (head, tail, brake, strobe, spot, security, fog, decorative holiday, marker and turn signal lights), cigarette lighters, power outlets, fans, horns, various switches (light, horn, turn signal, and key), and voltage reducers..
Typical Installation of Golf Cart Electrical Accessories
Most electrical accessories in the golf car industry are powered via a 12VDC source. There are some exceptions with headlights as we offer some 36VDC and 48VDC versions. Providing a suitable 12VDC source for your golf cart electrical accessories will depend on several things.
Gas Golf Cart Electrical Accessories Installation
First, let’s address providing a suitable 12VDC source for golf cart electrical accessories in a gasoline powered golf cart. All gas golf cars draw power from a 12 volt battery for the ignition system to start the car. With this type of system, you wire directly to the battery for the 12VDC source.
36 Volt Golf Cart Electrical Accessories Installation
Installing electrical accessories into a 36 volt golf car provides a bit more of a challenge. Mostly, since the battery bank does not provide 12V already as in the gas installation above. Luckily, 36V systems generally use six 6 volt batteries and six is a divisor of twelve.
48 Volt Golf Cart Electrical Accessories Installation
Installation of 12 volt accessories into a 48 volt system presents its own unique problem. These 48 volt systems typically use six 8 volt deep cycle batteries in series to provide the 48 volts.
