How do you remove the motor from an electric golf cart?
Once all wires have been removed from the electric golf cart motor, you are ready to remove the motor. There are usually three or four small bolts holding the motor onto the differential. They are inserted outboard of the mounting flange through holes and then screw into the threads cut into holes around the motor case.
What is a ¾ motor on a golf cart?
Most modern golf carts which use a helical style differential use ¾ motors, which means the motor is open on the end which mounts to the motor. This open end of the electric golf cart motor does not have a carrier bearing to center the armature as part of the motor.
Does an electric golf cart motor have a carrier bearing?
This open end of the electric golf cart motor does not have a carrier bearing to center the armature as part of the motor. The carrier bearing is typically pressed onto the input shaft and held into the differential via a snap ring.
How do you kill a golf cart battery?
Also, be sure to disconnect BOTH the main negative and main positive wires to the battery bank. This effectively kills the cart and separates all the components from the power within the bank. If your golf cart is equipped with an access hatch over the motor and differential area, remove it to gain access.
How do I change the brushes on my electric motor?
0:425:56Carbon Brush Replacement - YouTubeYouTubeStart of suggested clipEnd of suggested clipIf the rotor is in good condition. Place the connector into the new brush. Place the brush into theMoreIf the rotor is in good condition. Place the connector into the new brush. Place the brush into the motor by pushing slightly against the rotor. Important never touch the tip of the brush.
Does a EZ Go electric golf cart have brushes in the motor?

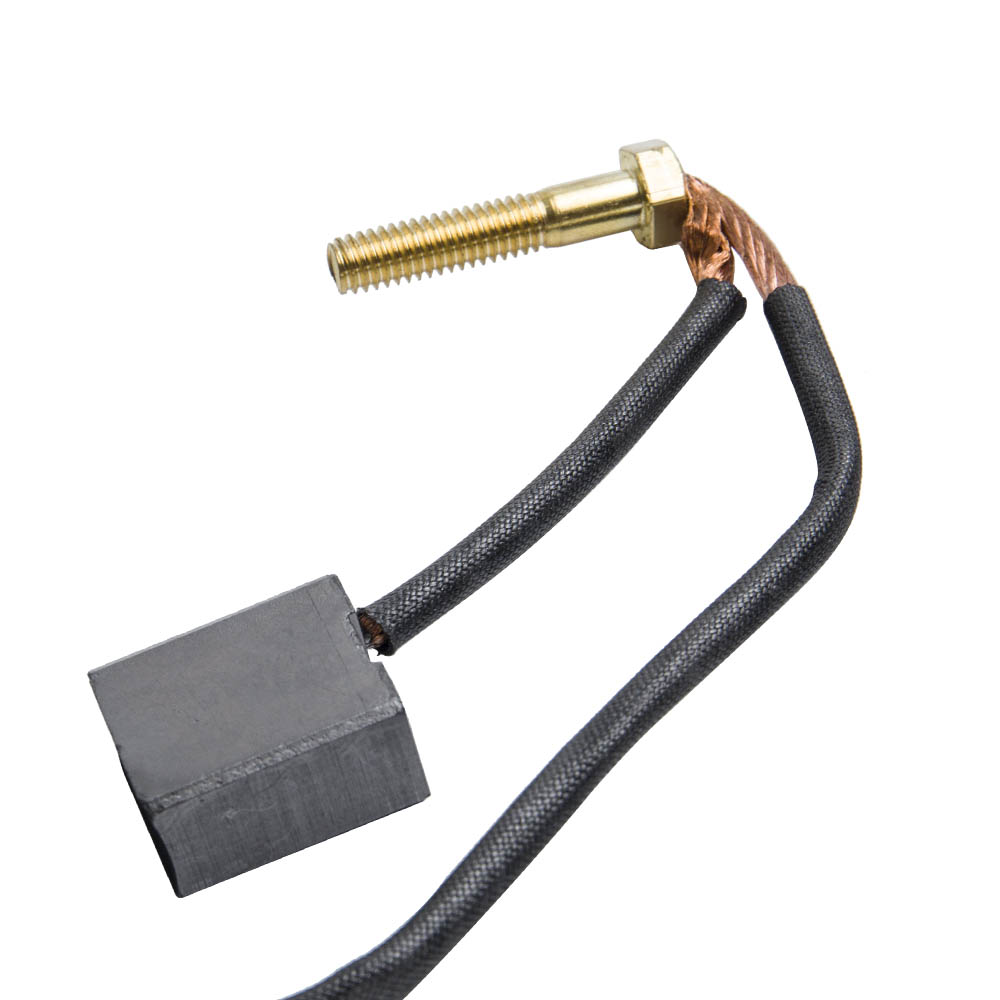

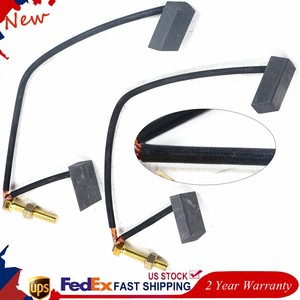

The Electric Motor Brush is an OEM (Original Equipment Manufacturer) replacement brush that should be installed on E-Z-GO Vehicles with a 36 Volt Electric Advance Motor.
How do I know if my motor brushes need replacing?
0:111:09When to Change Carbon Brushes in Power Tools - YouTubeYouTubeStart of suggested clipEnd of suggested clipIf you have to shake your tool or hit it for it to start it's usually the brushes. If you get aMoreIf you have to shake your tool or hit it for it to start it's usually the brushes. If you get a banging sound in the motor. If you're losing rpms. Where you're using the tool or its stalls.
Can I make my electric golf cart faster?
A new battery will increase a golf cart's motor output. The result of the motor output increase is higher speed. Purchasing new batteries with a higher voltage maximum will increase your golf cart's speed dramatically. We highly recommend Golf Cart Batteries, if you plan to replace.
How do I know if my electric golf cart motor is bad?
You have enough going on in your life without your golf car refusing to start when you turn the key in the ignition. If your golf car won't start, is slower than it used to be, or is experiencing other technical problems, you could have a bad motor on your hands.
How do you clean an electric golf cart motor?
0:103:45Cleaning a Surging 1996+ EZGO TXT 36v/48v Electric Motor Golf cart ...YouTubeStart of suggested clipEnd of suggested clipSo i might use both hands to get this off but once you take these two bolts out then this piece.MoreSo i might use both hands to get this off but once you take these two bolts out then this piece. Comes up and put a cable on it. So we can kind of lift. It.
How do you test electric motor brushes?
Slowly rotate the motor shaft, keeping the tester in position. If the tester doesn't light or buzz, or if it flickers or stutters when you turn the motor shaft, the brushes should be replaced. If the springs behind the brushes are damaged, they should be replaced as well.
How do you clean electric motor brushes?
0:013:27DIY: How to Clean the Commutator of an Armature - YouTubeYouTubeStart of suggested clipEnd of suggested clipAt. Www.keytime.com spray the contact cleaner on the commutator then agitate the surface with theMoreAt. Www.keytime.com spray the contact cleaner on the commutator then agitate the surface with the toothbrush. This will remove any oils dust dirt or any other contaminants.
How do I know if my brush is worn out?
If the brush displays signs of breakage, crumbling or burning then it should be replaced. If there is any change in colour to the spring (such as rainbow patterns), this could indicate that there is a broken lead in the spring, and so should be replaced.
Why is my electric golf cart so slow?
Low Battery Usually, the most common reason golf carts slow down is when they don't get enough power output from the battery. If the battery pack charge is very low and your cart is out of power, your cart will run slow.
How do you remove the speed limiter on a electric golf cart?
Basically, an electric speed governor can be controlled by a tiny metal rod that's located by the clutch of your golf cart. First things first: The electric speed governor is connected to a cable. You can adjust your speed by rotating the nut in a counterclockwise rotation.
How fast is a 48V golf cart?
The standard 48v golf cart will travel between 12 to 14 mph. However, if you apply modifications to the vehicle you can expect top speeds of 20 to 24mph.
What to do if your golf cart connectors are cracked?
If you notice your original golf cart cables are cracked or showing exposed wire during your usual inspections they should be replaced immediately. If your connectors are showing signs of corrosion they should be cleaned and protected immediately with a product like BatteryPete’s Corrosion Block or Preventative.
What does resistance mean in golf carts?
Resistance means heat. This is because where ever there is resistance it will generate heat but also severely limit the performance of your golf carts electric system. Picture a beautiful natural fresh water mountain stream. Come Spring time it is flowing well as the snow in the mountains above starts to melt.
