After purchasing a clutch puller for your specific golf cart, insert it into the clutch hole and thread in slightly. Use an air gun to turn the puller inward at a high rate of speed. Once the puller contacts the crankshaft, the pressure created causes it to pop off the tapered fit. Without a puller, golf cart clutch removal is next to impossible.
How to remove a secondary clutch on a Yamaha golf cart?
There are some simple steps involved in removing the secondary clutch on a Yamaha golf cart. Just carefully follow the given steps: First of all, identify the right clutch puller according to the VIN number of the golf cart you are operating. Then use it to remove the drive belt very carefully from the primary and the secondary clutch.
What do you use to adjust the clutch on a golf cart?
They are the clutch puller, an air gun, machine oil, and a rubber hammer. It is necessary to be gentle in the process because if you use excessive force, then the transmission may be damaged. So, take great care while adjusting the clutch and use the clutch puller that matches the cart’s model.
When to replace the clutch on a Yamaha G9 golf cart?
When the cart starts, if it produces any uneven vibrations or jolts, it is better to check the clutch and replace it. There can be a slipping problem with the Yamaha G9 clutch.
What are the problems with the clutch on a golf cart?
There can be various problems with the golf cart clutch, so we need to identify the exact problem. A slipping clutch is a very common issue in golf carts. If there is any problem in how your golf cart runs, you can check for the following problems: There might be a problem with the belt. Check if the belt is too tight or loose.
How to find primary clutch on golf cart?
What is wrong with my golf cart clutch?
Why does my golf cart clutch slip?
How to get clutch out of clutch?
What to do if you have a problem with your G16 golf cart?
What to do if clutch gets stuck?
When the cart starts, if it produces any uneven vibrations or jolts, it is better to?
See more
How do you remove the rear clutch on a Yamaha golf cart?
0:157:43Secondary Clutch Replacement Golf Cart G2-G22 Yamaha - YouTubeYouTubeStart of suggested clipEnd of suggested clipSo we're gonna do order into one I'm gonna put another one on here all right first thing you want toMoreSo we're gonna do order into one I'm gonna put another one on here all right first thing you want to do is take this nut off rare. Which is a 17 milk okay I'm just gonna hit this with the impact.
How do you remove a golf cart clutch?
0:2214:32HOW TO REMOVE AN EZGO GOLF CART WISCONSIN ROBIN ...YouTubeStart of suggested clipEnd of suggested clipPut it on its head. And i'll just take a chisel. And a sledgehammer.MorePut it on its head. And i'll just take a chisel. And a sledgehammer.
How do you know if your clutch is bad on a Yamaha golf cart?
What Kinds of Problems Can a Golf Cart Clutch Have?A sudden inability to maintain even slow speeds when heading uphill or changing elevation.Slowing down to a crawl, then speeding up, then slowing again, seemingly without reason.Jolting during startup.A 'cranking' sound when starting up the golf cart.
Why is my golf cart clutch not engaging?
The battery might be the key reason for the clutch not engaging. If the battery is faulty, the clutch systems will fail to generate enough power and will not function. If this is the case, it is advisable to replace or fix the battery and the issue should be resolved.
How does a Yamaha Golf Cart clutch work?
0:463:28How a golf cart CVT slip drive clutch works - YouTubeYouTubeStart of suggested clipEnd of suggested clipAnd the rear drive clutch actually separates it widens causing the belt to drop down into the clutchMoreAnd the rear drive clutch actually separates it widens causing the belt to drop down into the clutch.
How do you adjust the throttle cable on a Yamaha golf cart?
0:005:15Yamaha G29 Drive Golf Cart Governor Adjustment - MORE SPEED!!YouTubeStart of suggested clipEnd of suggested clipItself by tightening this nut down you're putting more pressure on the spring. So that the governorMoreItself by tightening this nut down you're putting more pressure on the spring. So that the governor has to work harder to pull back on the throttle. Cable.
Why would a centrifugal clutch not engage?
Centrifugal Clutch Won't Engage If your clutch won't engage, It usually means that the engine idle speed is different to the clutch idle speed. This can result in damage. To correct this, change the spring or change the engine speed to below the clutch idle speed.
What does the secondary clutch do on a golf cart?
Yamaha driven clutches are better known as a secondary clutch. This clutch attaches to the rear end and is used to propel your golf cart to higher speeds. The clutch is closed until the motor turns over.
Why does my gas golf cart go slow uphill?
A fully charged battery can create up to 24 volts. With a voltmeter, determine how much current you need by checking if your cart will move on flat ground with a dead battery. If your golf cart's speed drops significantly as it ascends an incline, your batteries may be weak and need replacement.
What is the most common problem associated with clutch?
Experiencing Clutch Problems? Here Are The Most Common Issues.The master or slave cylinder might start to leak. Hydraulic and cable-operated are two kinds of clutches. ... The throwout may wear out. ... The clutch disc may be worn out. ... The flywheel may become warped. ... Your pressure plate may be worn out.
How do you fix a clutch that won't engage?
2:263:28How to Fix a Car that Won't Go into Gear (Clutch Master) - YouTubeYouTubeStart of suggested clipEnd of suggested clipAnd that so air can come out here then we has a giant screwdriver stick it on a clutch pedal. AndMoreAnd that so air can come out here then we has a giant screwdriver stick it on a clutch pedal. And pull the seat. Forward got all that in place then we tighten the line up.
What causes a clutch to stop working?
Sudden failure is most often caused by a broken or loose clutch cable, linkable or a failed hydraulic master/slave cylinder. There can also be leaks in the hydraulic line or even the disc could be contaminated with something like dirt or debris.
How to find primary clutch on golf cart?
There are two clutches in the golf cart. To locate the primary clutch, it is generally the lower one. Consult the cart’s manual to make sure. First, observe exactly how the drive belts have been adjusted to the clutches. After you have noted that.
What is wrong with my golf cart clutch?
If there is any problem in how your golf cart runs, you can check for the following problems: There might be a problem with the belt. Check if the belt is too tight or loose.
Why does my golf cart clutch slip?
There can be a problem with the drive belt, which can cause the clutch to slip. Sometimes the installed belt drive may not match the clutch in the golf cart, causing problems. Just replace it, and you are good to go. Check if the belt drive is misaligned. This is also a common problem with the clutch.
How to get clutch out of clutch?
Do not use too much rough force, but put the crowbar gently behind the clutch and apply pressure. The clutch might slide out smoothly. It is important to increase your pressure evenly and gradually, or you can damage it more than before.
What to do if you have a problem with your G16 golf cart?
If there is any problem with the secondary clutch, it is best to replace it or the drive belt connected to it. If you are unsure about removing the drive belt or the clutch, then you can adjust it.
What to do if clutch gets stuck?
If that is the case, then you will need to complete the following steps: If the clutch gets stuck in any instance, the first thing you should do is use a PB Blaster and add some of it to the clutch. Give it some time to soak.
When the cart starts, if it produces any uneven vibrations or jolts, it is better to?
When the cart starts, if it produces any uneven vibrations or jolts, it is better to check the clutch and replace it.
CVT Components
On a golf cart, the CVT is comprised of three parts; the drive clutch or primary clutch on the engine, the driven or secondary clutch on the differential, and the belt which connects the two. As the rpms of the engine increase, the drive clutch spins with it and with the use of flyweights and centrifugal force, the clutch pulls inward on the belt.
Drive Clutch
Let’s start with the removal of the drive (primary) clutch which is mounted on the crankshaft sticking out of the engine. Before beginning the golf cart clutch removal of either clutch, you must first remove the drive belt. At rest, it is loose enough where you can just work it over the clutches. Once removed, you can then remove the drive clutch.

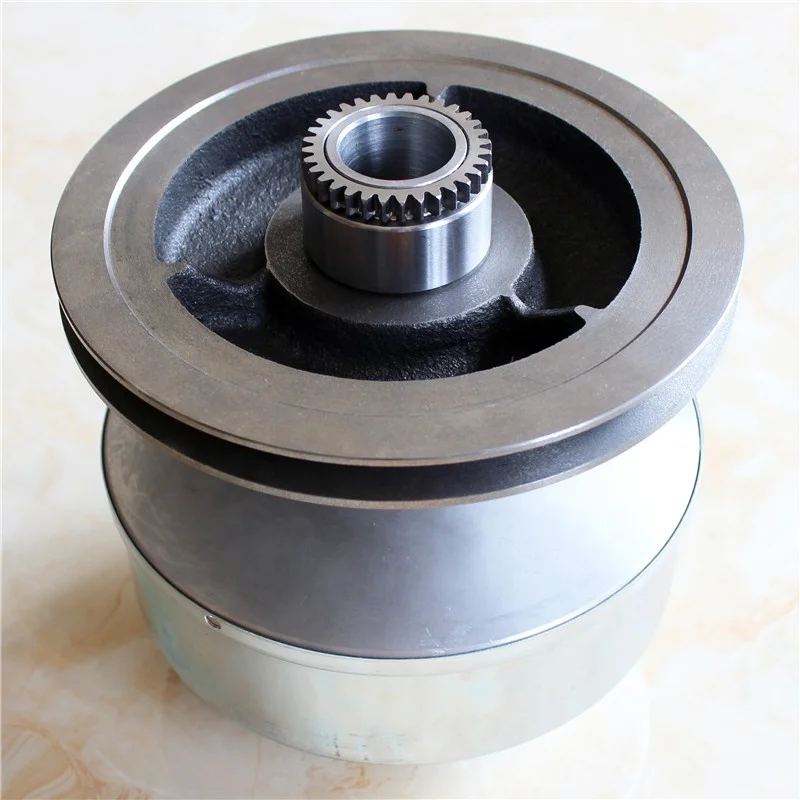

Driven Clutch
As for the driven or secondary clutch, although it may seem easier to remove, it is often the hard one to tackle. When the bolt is removed from the center of the driven clutch, there is literally nothing else holding it on. It is not generally a tapered fit like is used on the drive clutch.
Drive
The drive, or primary, clutch is found on the crankshaft of the engine. A thick, heavy ‘drive’ belt is wrapped around it and links it to the driven clutch, on the differential. At rest, the drive clutch sheaves (or pulley halves) are separated enough that the drive belt rests in between the sheaves & against the center shaft of this clutch.
Driven
The other half of this system is the driven, or secondary, clutch. At rest the driven clutch sheaves are spring loaded together, so the belt sits up at the outer edge of this clutch, NOT down toward the center shaft. It, too, spins around and has a sheave that sides in & out along it’s main shaft but this clutch has no flyweights.
Belt Operation
As the drive belt forces the driven clutch sheaves to separate, the PULLING ratio of the engine changes from maximum (when the belt is at the outer edge of the driven unit) to minimum PULLING power, or top cruising speed (when the sheaves are completely apart).
Driven Issues
The driven clutch can misbehave in many ways. It has one main shaft and the sliding sheave has an internal bushing that will wear, and it has several inclined metal ramps (usually aluminum) with small plastic buttons that protect the ramps as they glide against one another.
Buttons
OK picture this: The engine revs up and the drive belt starts to ride down into the pulley faces of the driven clutch forcing them to separate. The inboard pulley half begins to slide along the main shaft compressing the spring and bringing the funky cup ends and their respective ramps up against one another.
Driven Spring
While we are on the Yamaha driven clutch another failure that occurs is almost impossible to detect but it also impairs the hill pulling power of the car. Keep looking inboard to where the funky spring cap butts up against the differential housing. The spring cap doesn’t actually touch the differential case.
How to find primary clutch on golf cart?
There are two clutches in the golf cart. To locate the primary clutch, it is generally the lower one. Consult the cart’s manual to make sure. First, observe exactly how the drive belts have been adjusted to the clutches. After you have noted that.
What is wrong with my golf cart clutch?
If there is any problem in how your golf cart runs, you can check for the following problems: There might be a problem with the belt. Check if the belt is too tight or loose.
Why does my golf cart clutch slip?
There can be a problem with the drive belt, which can cause the clutch to slip. Sometimes the installed belt drive may not match the clutch in the golf cart, causing problems. Just replace it, and you are good to go. Check if the belt drive is misaligned. This is also a common problem with the clutch.
How to get clutch out of clutch?
Do not use too much rough force, but put the crowbar gently behind the clutch and apply pressure. The clutch might slide out smoothly. It is important to increase your pressure evenly and gradually, or you can damage it more than before.
What to do if you have a problem with your G16 golf cart?
If there is any problem with the secondary clutch, it is best to replace it or the drive belt connected to it. If you are unsure about removing the drive belt or the clutch, then you can adjust it.
What to do if clutch gets stuck?
If that is the case, then you will need to complete the following steps: If the clutch gets stuck in any instance, the first thing you should do is use a PB Blaster and add some of it to the clutch. Give it some time to soak.
When the cart starts, if it produces any uneven vibrations or jolts, it is better to?
When the cart starts, if it produces any uneven vibrations or jolts, it is better to check the clutch and replace it.
