Steps to replace the solenoid: Unplug the negative terminal connected to batteries and remove the controller cover. Disconnect the controller and the solenoid.
Full Answer
How to bypass solenoid on an EZGO golf cart?
How to bypass solenoid on an EZGO golf cart? Sometimes, a person may not have a multimeter or a voltmeter with them. Therefore, to check the solenoid, you can connect the large wires into the solenoid together and see if the cart starts.
Can you upgrade the solenoid on a golf cart?
Upgrading the solenoid will allow upgrading the entire golf cart. However, one can upgrade the solenoid even when the stock solenoid is not doing its job properly. Upgrading the solenoid will help in making the cart powerful. The upgraded solenoid can match the controller amperage.
How do I know if my EZGO PDS solenoid is bad?
EZGO PDS solenoid clicks when the key is switched on. If there are no clicking sounds, then the chances are that there is no connection or the solenoid is damaged. If there is excessive corrosion or dust accumulation in the terminals of the solenoid.
Why does my EZGO golf cart make a clicking sound?
If while pressing the ignition, the cart makes a clicking sound, but the cart does not start, then it can be due to faulty or damaged wiring in the solenoid. How to test the solenoid on an EZGO golf cart?
How do you change a solenoid on a EZ Go golf cart?
1:305:38Replace Solenoid in Golf Cart - YouTubeYouTubeStart of suggested clipEnd of suggested clipSo you start by removing the bolts that actually hold the solenoid to your golf cart wherever thatMoreSo you start by removing the bolts that actually hold the solenoid to your golf cart wherever that might be. And one of the tips i also like to mention is hold up your new solenoid.
How do you check the solenoid on a EZ Go golf cart?
This can Also be tested by putting a test lead on each small terminal and pressing the gas pedal. The meter should read 36 V when the gas is pressed. If this voltage does exist when the gas pedal is pressed then the solenoid should click and engage.
Can you run a golf cart without a solenoid?
Without it, the golf cart will simply not function correctly if at all. The very nature of golf carts means that they constantly start and stop. Every time their tires move the solenoid has some serious work to do. They generally consist of a central rod encased in a coil of wire that is enameled or insulated.
How do you test a gas solenoid on a golf cart?

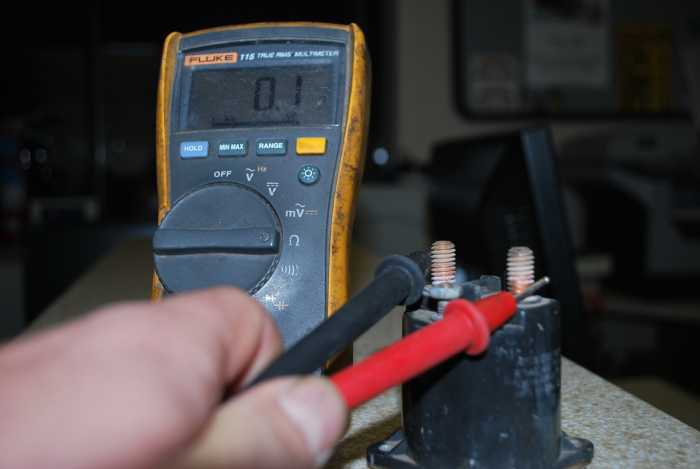

Set your voltmeter to the ohms reading, and connect its probe to each one of the big terminals. Of course, the reading should be zero. Next, move the cart's switch to forward, turn it on, and accelerate slowly. Your solenoid should click.
What happens when golf cart solenoid goes bad?
What Happens To Your Golf Cart When The Solenoid Goes Bad? The large contacts in a gas golf cart may refuse to release, causing the starter to run even after turning off the ignition.
Where is the reset button on a EZGO golf cart?
Locate the motor Remove the panel so the electric motor is visible. Electric motors usually include reset buttons that can perform similar to circuit breakers. Look in the area where several electrical wires enter the motor and locate a small red button. This is the reset button.
Why does my golf cart click but not move?
A Club Car golf cart can start clicking but not move, due to dust accumulating inside the battery ports. Opening the battery ports and checking whether there is any dust accumulation can tell you if this is the case. Cleaning it thoroughly with a cloth can resolve the problem.
How do you check if a solenoid is working?
Do your best to listen for a “click” noise. If the click is strong and loud, it most likely means the solenoid has enough power and is working properly. If the clicking you are hearing is quiet or repetitive, it may be that your solenoid is not strong enough or does not have enough power from the battery.
Why does my ezgo golf cart not move?
Why EZGO gas golf cart won't go forward? The main reason why a EZGO gas golf cart will not go forward is because of a locked up brake, or a faulty solenoid and accelerator. A defective Run/Tow or Forward/Reverse switch can also cause a EZGO to not move forward.
Can you bypass a solenoid?
5:037:29Solenoid Bypass - YouTubeYouTubeStart of suggested clipEnd of suggested clipAll you have to do to bypass the solenoid. And make the starter turn is basically connect this hardMoreAll you have to do to bypass the solenoid. And make the starter turn is basically connect this hard copper wire to this point on the battery. Then you're not doing anything with the solenoid.
How do I know if my EZ GO controller is bad?
Press the accelerator and watch to see if the voltage increases. It should increase from a reading of 0 to the full voltage of the battery. If the motor is not turning, the problem may be in the directional switch or motor. If there is no voltage, the controller is bad and must be replaced.
How do you fix a gas golf cart that won't start?
First, try this: turn the key switch on, hit the accelerator, and check for a clicking noise. If you don't hear clicking, it's time to take a look at your cart's batteries. Make sure the battery is fully charged and the terminals are cleaned and secure. Next, see how the water level in the battery is holding up.
Why is my Ezgo golf cart not clicking?
A EZGO golf cart that is not making a clicking sound can be due to a failed solenoid. If there is no sound in the cart while igniting the switch, then the problem can be the cart’s control circuitry. This means the solenoid has stopped working. Then it is required to replace the solenoid.
Where is the solenoid located on a golf cart?
The solenoid is located inside the controller box connected to it.
Why is my solenoid overheating?
Using a higher amperage wire for a stock solenoid can cause the solenoid to get overheated. Having a low capacity solenoid in a high capacity or modified cart can be the problem as well. Maybe the wiring is lost or old. High resistance can be one of the issues causing overheating.
How to test gold cart solenoid?
You can test the solenoid by simply disconnecting the main circuit high wires and by using a multimeter.
What to do if your solenoid is damaged?
Here the formula is simple; if one thinks that the solenoid is damaged, then jump the solenoid from the circuit and check. If the cart starts then, the problem could be the solenoid. If the cart doesn’t start even after jumping the solenoid, then the issue lies somewhere else and not in the solenoid.
Why is my cart solenoid getting hot?
If the cart solenoid is getting hot, then the problem can be with the solenoid or the circuit wiring. It is better to check the solenoid thoroughly. Use proper solenoid, which matches the amperage and voltage of the cart system. Use high-quality solenoid to avoid the heating problem.
What to do if solenoid is not working?
If the solenoid is not working after checking and testing the solenoid using a voltmeter, then it is time to replace the solenoid all together. Always be sure of the model and year of the cart. Check online to get all specifications. Compare the online picture of the new solenoid with the older one.
How to test golf cart solenoid?
A diode allows current to run in one direction, but not in the other. Testing the diode is a simple procedure. Remove the diode from the circuit and check the leads with a continuity tester.
Where are the solenoids on a golf cart?
In all golf carts, new and old, the solenoids can be found under the seat or in the engine well and are easily identifiable by the wires that lead to them. Banks of heavy duty solenoids, as in the previous illustration, are mounted on the side or back panel near the electric motor.
Why doesn't my golf cart solenoid click?
This can be a faulty wire connection, but can also mean the solenoid is beginning to fail. The golf cart solenoid doesn’t click when the accelerator is pressed. This again can be faulty wiring or a failed solenoid.
What to do if your solenoid is not zero?
If the reading is not zero, then the solenoid is stuck and needs to be replaced. If the ohmmeter does read zero, set the cart to forward travel and turn the key switch on. Press the accelerator pedal (or have a friend do it) and you should hear a click. If you don’t hear a click, measure the resistance anyway.
How to tell if solenoid is bad on golf cart?
The common symptom of a bad solenoid is no clicks when the cart’s ignition is on and you press the accelerator.
How to tell if a golf cart won't start?
The first and most obvious symptom is the golf cart won’t start. If it is a gas-powered cart, the engine doesn’t turn over, and if it is an electric cart, the cart doesn’t move. Now, on to the next symptoms…. The engine on the gas-powered cart starts, but the starter doesn’t disengage after starting.
Is a solenoid an electromagnet?
A solenoid is NOT an electromagnet, but like an electromagnet, it IS a coil of wire, partially surrounding an iron core, that is made to move inside the coil by the magnetic field caused by current flowing through the coil. It is used to convert electrical energy to mechanical energy, as in the operation of a switch.
What is a solenoid on a golf cart?
A solenoid, for our purposes, is a type of relay. A relay is a type of switch that uses a low power circuit to operate a high power circuit. A solenoid uses a magnetic coil (the actual solenoid) on a low power circuit to push a rod that closes a high power circuit. On your golf cart, this high powered circuit is either your ignition on ...
Why does my golf cart have no solenoid?
Golf cart solenoids are also typically one of the first components to fail in your golf cart, because they work very hard, turning on and off every time you stop and go in your golf cart. If you have an issue with no start or no go then your solenoid should be pretty high on your list of things to check.
What is a golf cart go switch?
On your golf cart, this high powered circuit is either your ignition on a gas golf cart or your electrical motor power circuit for an electric golf cart. Basically it’s your golf cart’s go switch, and it’s absolutely essential to your golf cart’s ability to do its job. Golf cart solenoids are also typically one of the first components ...
What happens if a solenoid reads infinity?
If it reads infinity or open lead, then the solenoid has an internal fault and requires replacement. Your solenoid should also have a range that it operates in, and if the resistance reads outside of that range, you should replace the solenoid even if it works to avoid damaging other components.
What is the most important part of a golf cart?
One of the most important components of your golf cart is the solenoid. It is one of the main components of your golf cart that allows it to move. Whether you have a Yamaha, E-Z-GO, or Club Car golf cart, and no matter if it is an electric or gas golf cart, you need a properly operating solenoid to get anywhere. Contents [ show]
What to do if your solenoid doesn't work?
Before you run out and get a solenoid, you’ll have to test the entire ignition system this way to find out what’s not working, and it is a bit of a pain.
What is a micro switch on a gas pedal?
This switch is what sends the low power to the solenoid. The solenoid uses this to create a circuit between the battery and the starter, thus starting your motor and getting you grooving.
