The steps below should give you a good idea of what problem is affecting your sensor:
- Start by jacking up your golf cart to get easier access to this part of the cart’s bottom
- Identify the six- or 10-pin connector and carefully pull it out so that you can measure the pins
- Put the key in the “On” position in your Run/Tow switch on the cart
- Switch the F/R switch into a forward position to test your cart
How do I test my EZGO inductive throttle sensor?
You can test your EZGO inductive throttle sensor by checking the following: Throttle voltage using Alltrax controllers. Connection with the 4-wire Molex plug. Proximity detector. This involves measuring the throttle inputs voltage at the ITS throttle and the controller and ensuring that they are the same.
How do you test an inductive throttle sensor?
When checking your inductive throttle sensor, you’ll be testing using various items such as Alltrax controllers, a connection with the four-wire Molex plug, or with a proximity detector.
How does a throttle sensor work on a cart?
Typically, the throttle sensor is connected to your cart via a wiring harness and is attached directly to the direction sensor. These two parts work together to produce not only the proper speed for your cart but the direction as well.
How to troubleshoot the speed sensor of my golf cart?
A speed sensor push test can help you troubleshoot the problem with the speed sensor of your golf cart if it gets into limp mode. Ensure that the golf cart is not in sleep mode.
How do you test a throttle inductive sensor?
Take a digital multimeter and set it to the volts reading. Place the positive probe of the meter on the white wire terminal of the ITS. Release the accelerator pedal slowly. The reading should be in the 0.45V to 0.53V range when the micro-switch gets activated.
How do you test the speed controller on a EZ Go golf cart?
Connect the negative probe to the controller's M terminal and positive probe to the B+ terminal. Press the accelerator and watch to see if the voltage increases. It should increase from a reading of 0 to the full voltage of the battery. If the motor is not turning, the problem may be in the directional switch or motor.
How do you test a EZGO potentiometer?
Use an ohmmeter to test across those two wires, either at the controller or at the potentiometer. If you have a 0-5K ohms golf cart potentiometer, you would expect for the reading to be at zero and slowly progress to 5,000 ohms at pedal down position.
How do I test my EZGO micro switch?
How to Test EZGO Micro SwitchStep 1 – Access the Micro Switch. Most of the micro switches on EZGO golf carts including the EZGO TXT, EZGO RXV, and EZGO Express are located beneath the cart near the chassis. ... Step 2 – Connect a Voltmeter. ... Step 3 – Check for Continuity. ... Step 4 – Reset the Switch.
How do I know if my club car controller is bad?
X Common Symptoms of Controller FailureTop Speeds Not Appropriate for Your Cart. Golf carts are designed to reach pretty specific speeds and to not go over them or beneath them. ... Sudden and Unexpected Slowing. ... Shuttering or Shaky Driving. ... Stalling Out and Refusing to Start. ... Surges in Speed When Driving.
How do I test my club car speed controller?
0:002:12How to bench check curtis controller and golf cart motor - YouTubeYouTubeStart of suggested clipEnd of suggested clipOkay guys i'm going to show you right quick how to easily bench check your club. Car actually anyMoreOkay guys i'm going to show you right quick how to easily bench check your club. Car actually any golf cart. That's got one of these curtis controllers in it you just simply want to take that
How do you test a potentiometer electric golf cart?
0:294:36how to test speed potentiometer - YouTubeYouTubeStart of suggested clipEnd of suggested clipHere you see it on the actual speed pot itself the end terminal the other end terminal and the wiperMoreHere you see it on the actual speed pot itself the end terminal the other end terminal and the wiper and they come out to this connector.
Where is the reset button on a ezgo golf cart motor?
Locate the motor Remove the panel so the electric motor is visible. Electric motors usually include reset buttons that can perform similar to circuit breakers. Look in the area where several electrical wires enter the motor and locate a small red button. This is the reset button.
How do I test my golf cart controller?
The simplest test to ascertain your golf cart controller's performance is to to watch whether it runs when the batteries are fully charged with a slight push of the pedal. If you hear a distinct clicking noise, then your golf cart is running correctly.
How do you check if a micro switch is working?
2:134:10Electric shower problems: How to test a microswitch. - YouTubeYouTubeStart of suggested clipEnd of suggested clipThis is the normal micro switch and normally. The power comes in the top connection. Here and whenMoreThis is the normal micro switch and normally. The power comes in the top connection. Here and when the buttons pressed it goes out here and off to the elements or whatever.
How do you test a directional switch on a golf cart?
Place your foot on the car's brake, insert the key, and put the forward-reverse key in the forward position. If you see that the solenoid charges up pushing the pedal, then your forward reverse switch is working fine. As you put your Golf Cart in the forward mode, check your multimeter for full voltage.
How do you test a micro switch on a gas golf cart?
Again, leave your black probe on the battery negative terminal and use your red probe for testing. With the key switch ON, you should read battery voltage at the common terminal (C or COM), but not the other terminal. Once the micro switch is activated, you should read voltage on both terminals.
How do you test a motor controller?
How to Test an Ebike Controller at HomeStep 1: Connect your controller to the battery.Step 2: Set the multimeter reading. ... Step 3: To test for continuity, set your multimeter to continuum. ... Step 4: Test every line that comes out of the controller. ... Step 5: Set your multimeter to resistance mode to test for resistance.More items...•
How do I troubleshoot my EZGO controller?
Check your connections Check out all the wires and make sure the connections are firm. Sometimes the problem can be as simple as some loose wiring and all you need to do is make sure everything is plugged in tight. Also check for any breaks or corrosion in your wires that signify it may be time to replace them.
Where is the reset button on a ezgo golf cart motor?
Locate the motor Remove the panel so the electric motor is visible. Electric motors usually include reset buttons that can perform similar to circuit breakers. Look in the area where several electrical wires enter the motor and locate a small red button. This is the reset button.
How do I reset my club car controller?
Easily Reset the Club Car Golf Cart OBCKey switch to off.Set forward/reverse to neutral.Put tow/run switch to tow.Disconnect the negative battery terminal from the battery pack.Put the tow/run switch to run.Put forward/reverse switch to reverse.Put key switch to on.More items...
What is an inductive throttle sensor?
The inductive throttle sensor in an EZGO is a part of the electrical system of the golf cart and is connected through a wiring harness to the direction selector. It functions inside the pedal box. The ITS is used along with the cart’s electric speed controller like PDS, DCS and Series.
What voltage should a series throttle be?
For Series and DCS carts, the signal range should be between 0.4 to 0.6 volts and 1.5 to 1.7 volts.
What happens if the solenoid doesn't go?
If there is no solenoid activation, one or both wires connected to the microswitch fail to make proper contact with the Molex connector. However, if the solenoid does click but doesn’t go, one or both the other wires connected to the ITS may have failed to make proper contact with the Molex connector.
Where to keep positive probe on multimeter?
Keep the positive probe of the multimeter above the red wire terminal of the six-pin connector. If there is no battery voltage, the red wire between the connector and the solenoid is faulty. Keep the positive probe of the multimeter above the black wire terminal of the six-pin connector.
How many volts does a pedal have?
Take the voltage reading between both the throttle pins. This must typically be 10 volts. When the pedal is pressed fully at full throttle, the reading must be 6 volts. If the voltage reading is 12 volts, it’s an indication of a bad ITS unit.
How to test a speed sensor on a golf cart?
Two methods of testing your speed sensor are the following: Activate the Run/Tow switch of the golf cart by keeping it in Run position and try to push the cart.
Why does my golf cart stutter?
Your golf cart may move very slowly as if it’s creeping along or it may move at an erratic speed. You may experience stuttering in your golf cart like when you have a bad battery or there is a low voltage problem. A broken or damaged magnet on the motor can result in a bad speed sensor.
What happens if a cart sensor is bad?
If the sensor is bad, your cart will start rolling. Remember that if the switch is in Tow position, the cart will definitely roll. Ensure that the 3-pin plug from the sensor is connected and place a wire-piercing probe on the output green wire.
Why does my golf cart roll off?
Roll-away protection is essential for the safety of the golf cart. If the parking brake is not activated, the golf cart tends to roll off when it is in a neutral position and stopped in an incline. Please note that rolling will occur in neutral only at a predetermined speed.
What are the settings on the M3?
The variable settings on the M3 allow a player to adjust the loft, lie, and face angles of the club, as well as create a variable fade or draw bias. Which can correct many swing or hit issues...
Can a golf cart go fast?
Your golf cart may go fast initially and slow down drastically on its own after some time. This will happen repeatedly in a cyclic pattern. In such a situation, the car is said to be in limp-mode. You can do a roll-away test to check your golf cart speed sensor.
Can you fix a golf cart on your own?
Under NO circumstances should you attempt to fix your golf cart on your own. Doing so is dangerous and could result in serious bodily harm. The information on this website has not been verified for accuracy and should only be used for general information purposes only. Use this information at your own risk. The author (s) and owner of of golfstorageguide.com are NOT trained electricians, mechanics or technicians. The webmaster of golfstorageguide.com and the author (s) is not responsible for any loss in damages, financial loss, personal injury, or death. By using the content on this website, you agree to the terms outlined in this disclaimer.
Customers who viewed this item also viewed
Ezgo golf cart floor pedal box micro switch. WITHIN LOWER 48 US STATES.
Special offers and product promotions
Save 5% on Universal Golf Cart Rear View Mirror when you purchase 1 or more Qualifying items offered by Accessories for EZGO. Here's how (restrictions apply)
From the manufacturer
All E-Z-GO products are either direct replacement parts or accessories designed to specifically fit your vehicle. E-Z-GO designs and tests our parts and accessories for superior quality, performance and reliability.
Product Description

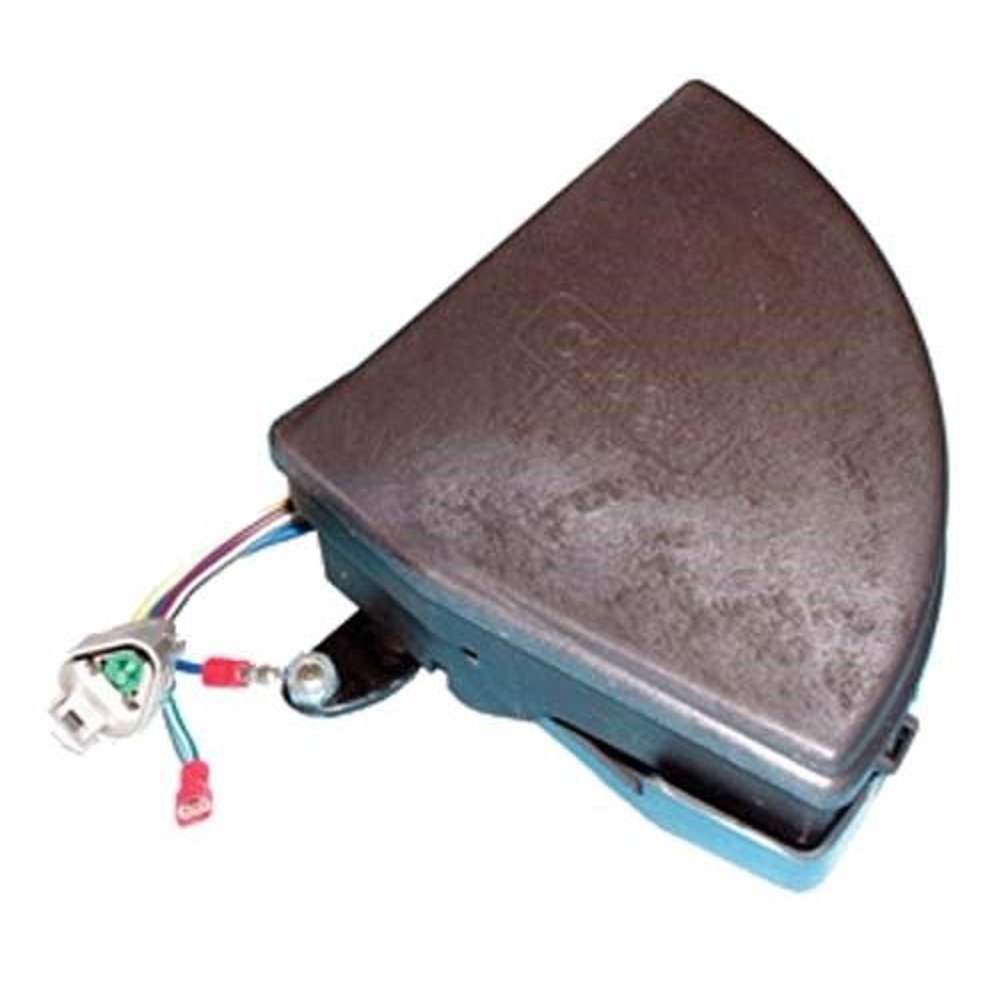

The Inductive Throttle Sensor is an original equipment manufactured part designed for use on E-Z-GO Electric vehicles. This device can be used with 5-pin electric speed controllers and on vehicles with the DCS (Drive Control System) and PDS (Precision Drive System) controllers.
