Before you check the motor itself, first test the source of the power: the wall socket where you charge it. Take a 120-volt tester and use the probes to confirm that there is power reaching the socket. If there is no voltage reading, first reset the circuit breaker by flipping the switch that provides electricity to that socket.
How do you test the motor on a golf cart?
How to Test a Golf Cart Motor. 1 Step 1 - Test the Source of Power. Before you check the motor itself, first test the source of the power: the wall socket where you charge it. Take a ... 2 Step 2 - Check the Batteries. 3 Step 3 - Uncover the Motor. 4 Step 4 - Detach the Wires. 5 Step 5 - Check the Terminals.
Why won’t my electric golf cart start?
If your golf car won’t start, is slower than it used to be, or is experiencing other technical problems, you could have a bad motor on your hands. Before resetting or replacing the motor, there are a few other parts you should check. Here’s how to tell if your electric golf cart motor is bad or if the problem has another source.
How many volts does an electric golf cart use?
The motor of an electric golf cart is powered by 4 to 6 batteries with a total power of 36 or 48 volts. The batteries are rechargeable; you have to plug the cart into a wall outlet at home or your garage.
What to do if your electric golf cart battery is bad?
If a battery shows less than 12 volts, leave the clamp off and then lift it out of the golf cart. You can purchase a new battery, slide it in place and reconnect the clamps. Expose the motor for inspection. Located under a panel at the back of your golf cart will be the electric motor.
How do you know if your golf cart motor is bad?
You have enough going on in your life without your golf car refusing to start when you turn the key in the ignition. If your golf car won't start, is slower than it used to be, or is experiencing other technical problems, you could have a bad motor on your hands.
How do you reset a golf cart electric motor?
First, you'll want to reset your motor. It should have a small reset button (Usually it will be red) located near the main battery supply. Hit the reset button and then put the cover back on the motor. The next step would be to recharge your cart and try turning it on again. If it starts up then you're in luck!
How do you test a golf cart motor controller?
How to Test a Club Car Golf Cart Speed Controller? The simplest test to ascertain your golf cart controller's performance is to to watch whether it runs when the batteries are fully charged with a slight push of the pedal. If you hear a distinct clicking noise, then your golf cart is running correctly.
How do you check voltage on a golf cart?
Touch the voltmeter's negative probe to the battery's ground or negative terminal. Repeat this step with the positive side. Healthy batteries will indicate about 50 to 52 volts on the voltmeter. Most battery packs hold around 48 volts.
How do you troubleshoot an electric golf cart motor?
There are a few simple problems that you can fix yourself that will not necessitate professional maintenance.Test the wall socket where you charge your cart. ... Expose your golf cart batteries. ... Test the batteries for voltage. ... Replace dead batteries. ... Expose the motor for inspection. ... Reset the motor. ... Test the cart.
Do all electric golf cart motors have a reset button?
Electric golf cart motors have a reset button on their chassis which is designed to put your motor back into its original factory state. While it doesn't repair damage that may have occurred to the motor over the years, obviously, it does help to overturn any changes to the operation which may have occurred.
How do you test a Club Car electric motor?
13:2337:53Club Car 48 Volt Powerdrive Testing 1995-2013 - YouTubeYouTubeStart of suggested clipEnd of suggested clipPosition place the red positive probe on the speed controller M minus terminal place the blackMorePosition place the red positive probe on the speed controller M minus terminal place the black negative probe on the s2 motor terminal your vom should display continuity.
How do you test a motor controller?
How to Test an Ebike Controller at HomeStep 1: Connect your controller to the battery.Step 2: Set the multimeter reading. ... Step 3: To test for continuity, set your multimeter to continuum. ... Step 4: Test every line that comes out of the controller. ... Step 5: Set your multimeter to resistance mode to test for resistance.More items...•
How do I test my electric golf cart speed controller?
0:002:12How to bench check curtis controller and golf cart motor - YouTubeYouTubeStart of suggested clipEnd of suggested clipOkay guys i'm going to show you right quick how to easily bench check your club. Car actually anyMoreOkay guys i'm going to show you right quick how to easily bench check your club. Car actually any golf cart. That's got one of these curtis controllers in it you just simply want to take that
How many volts should a fully charged 36 volt golf cart have?
The target voltage for a 36 volt charger for AGM or some flooded batteries is 2.4 to 2.45 volts per cell, which is 43.2 to 44.1 volts.
How do you test a golf cart charger with a multimeter?
Turn on the Charger – Once you have the voltmeter attached to your battery charger, turn on the charger to read the electrical output. Typically, the needle on the voltmeter will move from left to right – with right being higher – to gauge the amps produced. A reading of about 36 amps is typical for a battery charger.
How do I test my golf cart batteries with a multimeter?
1:244:08Golf Cart Power Testing | ASK DAVE | Golf Cart Garage - YouTubeYouTubeStart of suggested clipEnd of suggested clipPositive and the black lead to the negative terminal on the last battery. Or test each batteryMorePositive and the black lead to the negative terminal on the last battery. Or test each battery individually. This will give us surface charge readings meaning the charge the batteries.
Where is the reset button on a EZGO golf cart motor?
Locate the motor Remove the panel so the electric motor is visible. Electric motors usually include reset buttons that can perform similar to circuit breakers. Look in the area where several electrical wires enter the motor and locate a small red button. This is the reset button.
Why does my electric golf cart have no power?
The main reason why a Club Car golf cart has no power is due to a faulty regulator or bad battery. One of the most common reasons could be a bad regulator and the connections to the regulator needs to be checked. The solenoid must have at least 12V charge while being operational which needs to be validated.
Where is the motor reset on a Yamaha golf cart?
Expose the motor (you'll probably need a screwdriver to remove the cover), and look for a red button. It is usually near the main power source, where most of the wires are connected. Once you've pressed the button to reset the motor, reassemble the cart, charge up the batteries, and give it a test run.
How do you fix a golf cart that won't move?
When the cart won't move, you have to be sure that the batteries are sending sufficient power to the circuit. You must check the fuse. Use the voltmeter to check the voltage at the key switch. In a cart with batteries rated at 48V, it must show 48V at the key switch.
Where is the motor located on a golf cart?
Finally, its time to check the motor itself. This will be located under a panel, usually at the back of the cart. This panel will be held on with four screws, so just make quick work of them with your screwdriver, and set everything aside in a safe place on a towel.
How to check if a battery is working?
Insert the screwdriver into the slot on a clamp and turn counterclockwise to remove it. Repeat this step with the other clamp. Then, test the voltage of the battery by touching each side of the wires to your 12-volt tester. This needs to be done to check all the batteries, as even one not working can cause your motor to malfunction. Don’t forget to remove the clamps before testing the other batteries as well. If at any time the tester shows less than 12 volts, the batteries need to be replaced.
Do golf carts need to be tested?
Owning a golf cart requires a lot of care, including constantly testing the motor. Early detection and troubleshooting motor problems can save you from spending a lot on repairs. So, if you come across problems, confirm that the motor is functioning properly by following the steps below.
How to reset a golf car?
To reset your golf car’s motor, open the hood to expose your motor and look for the red reset button. Push this button and test out your golf car again. If this hasn’t solved the issue, your motor may be burnt out and will need to be replaced.
Why won't my golf car start?
If your batteries are charged and in working condition, but your car still won’t start, check its solenoid. A solenoid is an electromagnetic coil of wire that transmits energy from your car’s battery to its motor to help it start. Every time you start your golf car, you should hear the click of the solenoid. If you don’t hear it, you probably have an issue with your solenoid. If you suspect an issue with the solenoid, take your car to a repair shop to have it repaired or replaced.
What to do if your car won't start?
If your car still won’t start or you notice any issues with acceleration, it’s time to check the potentiometer. The potentiometer sends an electric signal from the accelerator pedal to the speed controller, allowing the car to accelerate properly. Inspect the potentiometer and then test it out—if you discover any issues, have it repaired or replaced.
How many turns does a regen cart have?
Usually, the wire is rectanular in shape (cross-section). These coils have a much lower number of turns (usually 5 to 15 turns) per field coil. Note: A Regen cart will normally automatically slow down when you hit approximately 15 MPH going down a hill. This is for safety reasons (as not to over-spin the armature).
What is the difference between a series and a shunt motor?
There’s nothing visually different between the two that I know of but a shunt motor has the field windings connected in parallel with the armature .. and a series motor has the field windings connected in series with the armature.
How to remove electric motor from golf cart?
Go to the back of the golf cart and find the panel that covers the electric motor. Four or six screws will hold the panel in place. Use the screwdriver to remove all the screws, turning them counterclockwise and putting them in a secure location after removal. Remove the panel so the electric motor is visible.
How to reset an electric motor?
Look in the area where several electrical wires enter the motor and locate a small red button. This is the reset button. Push the button to reset the motor. Put the panel in place and secure it with ...
What is the problem with the EZ Go golf cart?
If you are having trouble with your EZ-Go electric golf cart, there are two areas that may play a role in the problem: the battery and the motor. If you have checked the battery and found it to be charging properly and providing a full amount of power to the motor, then you know that the motor is the problem. There is an easy method to check the electric motor on any EZ-Go golf cart.
Is the battery on an EZ Go golf cart charged?
Warnings. Be certain that the battery is not being charged before you begin working on any EZ-Go electric golf cart. Be certain that the battery is not being charged before you begin working on any EZ-Go electric golf cart.
Where is the electric motor on a golf cart?
Located under a panel at the back of your golf cart will be the electric motor. The panel will be held in place by four or six screws. Use your screwdriver to remove these, turning them counterclockwise.
How to inspect a golf cart motor?
Located under a panel at the back of your golf cart will be the electric motor. The panel will be held in place by four or six screws. Use your screwdriver to remove these, turning them counterclockwise.
How to charge a golf cart?
Step 1. Test the wall socket where you charge your cart. Every golf cart has a built-in charger that connects to a wall socket. Take your wall socket 120-volt tester and check the actual socket that you use to charge the cart itself. Plug in your 120-volt tester and make sure the actual wall socket is good. If there is no voltage reading, your ...
How to test a 12 volt battery?
So, with your flat-bladed screwdriver, insert it into the screw slot on a clamp and turn it counterclockwise. Do this to both clamps. Using your 12-volt battery tester, test the voltage of this battery by touching each side of it to one ...
What are the problems with electric golf carts?
Electric golf carts have two areas where problems usually occur, the batteries and the motor. Before you spend a lot of time and money waiting on a repairman or taking your electric golf cart to the shop, take a few seconds to troubleshoot the cart on your own.
Where are the batteries in a car charger?
If you are getting power to the charger, it's time to check the batteries. Most batteries are located under the seat, which flips up for access. Grab a hold of the back of your seat and flip it up to expose the batteries. There will be a row of batteries. Each one of these need to be checked.
What to do if your socket is not reading voltage?
If there is no voltage reading, your socket is bad and either needs to be replaced or the circuit breaker needs to be reset. You can reset the circuit breaker by flipping all the switches in your breaker box. An electrician should replace the socket.
Golf Cart General Introduction
The popular definition for a golf cart is that it is a small vehicle designed to carry two or more golfers and their equipment around the golf course or desert pathways to avoid walking effort.
Electric Golf Carts
The two main types of golf carts driven at the golf courses are gasoline and electric golf carts. Both of them function on the principle of a regular, less powerful gasoline or electric car, with some insignificant differences. Electric golf cars are popular with their environmentally friendly mode of operation.
Common Things That Can Go Wrong With An Electric Golf Cart
Buying and driving an electric golf cart, you should be aware that, just like other cars, it has a lifespan, and its parts also wear out. Some golfers perceive their carts as small, funny vehicles that can drive them around the golf course forever.
How To Avoid Or Mitigate The Issues
The key to avoiding or mitigating possible electrical golf carts malfunctioning is, as already mentioned a few times above, proper and regular maintenance. Golf cart owners should perceive their small electric vehicles as regular cars with a more restricted use range.
The Elite Of The Electrical Golf Carts
Pointing out so many common issues with the electrical golf carts may leave you with the wrong impression that they are pretty problematic vehicles. Let’s clarify that technical issues are typical for the used carts but are quite unusual for new carts with a warranty.
Electric Golf Carts FAQ
To determine whether your electric golf cart motor is bad or not, you need to test it first. Sometimes the problem is easy to detect, but sometimes you need to check the entire electrical system.
Sources
Wikipedia, “Golf Cart.” Wikimedia Foundation, https://en.wikipedia.org/wiki/Golf_cart Assessed June 8, 2021
How many volts does a golf cart need?
You’ll find that most vehicles in this category run with 24 to 36 Volt battery packs.
What is the most important part of a golf cart?

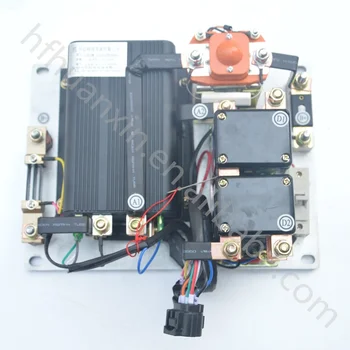

Even though the speed controller is probably one of the most important parts on your golf cart, not many people understand how they work or what they do. In this guide, we breakdown the speed controller so you have a complete understanding of their functions, and hopefully come out with the knowledge to make an educated decision on the type ...
Why is a speed controller important?
The Importance of the Speed Controller. The main objective for the speed controller is, as the name implies, to control the vehicle speed. Let’s say you try to operate that old DC motor without a controller. Any time you apply throttle, the full battery current and voltage is sent to the motor.
What is the center of a golf cart?
As you can see, the speed controller is the center of your golf cart, and most of the other modern day electric vehicles.
When upgrading your golf cart controller, do you suggest working with manufacturers that have spent the time building controllers for your specific?
When upgrading your controller for your golf cart, we suggest working with manufacturers that have spent the time building controllers for your specific brand.
What is a battery current limiter?
Battery Current Limiter: This protects the battery from excessive discharge. This also pulls back the battery current as it depletes, which prevents cell damage.
Why is it important to program a speed controller?
This is important stuff! Programming your speed controller to handle how the vehicle will be driven can make a huge difference. Not only will your golf carts mechanical components last longer, but you’ll be able to avoid overheating during operation, depending on your conditions.
