Install the timing belt, with the arrow pointing in the direction of rotation, on the crankshaft sprocket, the water pump sprocket and the camshaft sprocket. Install the lower and center timing belt covers. Install the vibration damper and torque the damper-to-crankshaft sprocket bolts to 18 ft. lbs. (25 Nm).
Full Answer
What happens if your timing chain breaks on a Volkswagen Golf?
If it jumps a tooth, or breaks entirely it can lead to permanent engine damage. It’s important to know the symptoms of a bad timing belt or chain, so this doesn’t happen to your Volkswagen Golf.
What kind of timing belt does a VW engine have?

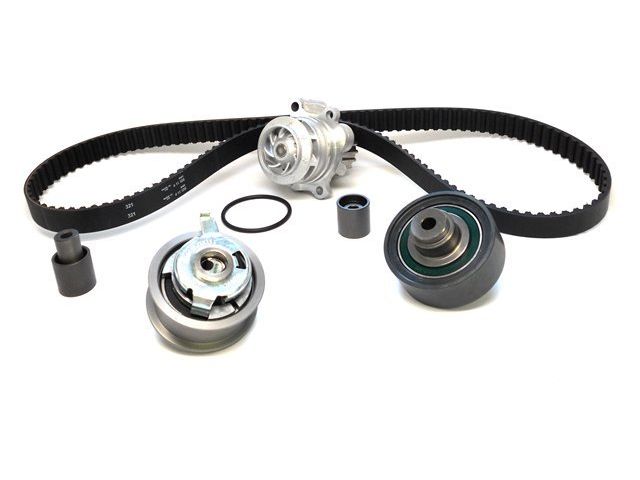

The 2.0 Liter 8V engine is driven by a timing belt system which links the cylinder head, camshaft, and crankshaft to run in sync. This VW timing belt system consists of a wear resistant, high strength, corded/molded rubber timing belt (a.k.a. VW toothed belt).
What is the recommended timing belt change interval for VW Jetta?
What is the recommended timing belt change interval for A4 platform VW Jetta Golf Beetle 2.0L 8V models? The most recent recommend interval is 75,000 miles. Some older scheduled Maintenance Service booklets reference a 105,000 mile timing belt service schedule interval.
What are the signs of a bad timing belt on VW Golf?
They are most commonly found on four cylinder engines. Here are some of the most common signs of a bad timing belt on the Volkswagen Golf: Engine Won’t Start – If your Golf’s timing chain or belt has fallen off completely, broken, or has jumped a few teeth, it is entirely possible that the engine won’t even start.
Why does my VW timing belt last so long?
The following are some reasons why you see the difference in how long a VW timing belt and related components last: (1) un-logged engine idle times and sitting in traffic; (2) warm-up time in cold weather; (3) environmental climate factors; (4) related engine maintenance that may have been overlooked.
Why does my VW water pump fail?
The internal bearing and seals of a VW water pump can weaken and is the primary reason why a water pump eventually fails.
What is a 2.0 liter 8V engine?
Everything you need to know about VW timing belt replacement on 2.0 liter 8V engine; which was used in the following Volkswagen models: The 2.0 Liter 8V engine is driven by a timing belt system which links the cylinder head, camshaft, and crankshaft to run in sync. This VW timing belt system consists of a wear resistant, high strength, ...
Can a timing belt crack?
Just as the timing belt has a designated service life and subsequent change interval, so does the tensioner. It's true that timing belts can get old, begin to crack, and eventually fail. However, it is just as common for the timing belt tensioner bearings to fail, thus causing timing belt failure.
Is it expensive to change a timing belt?
Play it safe, changing your timing belt may seem expensive. However, choosing to exceed your timing belt service interval is risky and can lead to unknown repair costs that will far exceed typical timing belt replacement service cost.
Is a 2.0L VW Jetta a non clearance engine?
The timing belt and tensioner components eventually reach the end of their recommended service life. The VW 2.0L 8V is an interference engine (a.k.a. non-clearance engine).
Can you use a timing belt on a single cam engine?
On single-cam VW engines it is possible to achieve good general timing without the special tools. However some special tools are needed for the related timing belt components. It's important to take your time well performing the VW 2.0L 8 valve timing belt.
Anonymous
Remove the necessary components to gain access to the front of the engine.
Patrick Rayome
Click on the following free, direct Link. It has two sets of Diagrams including the Timing + Marks: Belt Diagrams for your 2001 Volkswagon Bettle 2.0L SOHC 4-Cylinder. The other set of Diagrams is for the 1.8L DOHC 4-Cylinder. Further it has Instructional and Directional Diagrams that will help you out.
Nick Kostohryz
the radio could be bad as well. if the tuner in the radio is bad it wont get reception either. go with a good aftermarket one not a cheapy there no good anyway.
Coolant schematicsdiagram
Where are the timing marks on a 2001 Volkswagen Jetta. Tdi timing belt
How to replace wiper motor on 2001 jetta
YOU NEED TO TURN OFF RADIO FIRST THEN DISCONNECT NEGATIVE BATTERY CABLE.
When do you change timing belt on 2001 TDI Jetta. We have every 60,000, but service now just told me it has always been 105,000. Also we have a 2006 TDI Jetta and that timing belt is every 80,000 correct?
My sincere apologies for the delayed response. I am personally going back to answer your unanswered questions. I do not know if you still need this information, however I am answering it either way. The Serpentine Belt: visible on the outside of the Engine, should be replaced every 60,000 miles.
Timing specs for 2001 jetta 1.8 turbo
you have two timing marks one down on the crank pulley the other on the v/c remove plastic covers there is a little notch in the v/c. make sure the cam gear and crank pulley both line up. before you remove the belt. de-tension the tension roller. You will need a long thin screw and 5-6 thin large round washer to push down on the tensioner.
