Brake Switch Lead 1--->Inline Fuse Holder---> Battery Positive Brake Switch Lead 2----> connect to red and black leads of light Battery Negative-----> connect to white lead of light.
Full Answer
Is there a brake light switch for a golf cart?
This Golf Cart Brake Light Switch is designed for installation on ALL GOLF CARTS, INCLUDING CLUB CAR, EZ-GO & YAMAHA GOLF CARTS. It's very easy for regular folks to install to the existing brake pad to turn your rear lights into brake lights.
Do EZGO RXV golf carts have brake lights?
Brake lights are not present with every EZGO RXV golf cart model. However, there is an option to install them manually. Some EZGO models consist of factory-installed tail lights and brake lights. If the factory-installed brake lights are not working, check to see if the wiring is connected correctly.
Why do the brake lights on my EZGO TXT stay on?
If the brake lights on a EZGO TXT stay on, connect a delay timer so that the lights can turn off. This timer is provided with the brake light kit. If not provided, it can be purchased and installed. Generally, the brake lights shutdown time is about five minutes. If it is taking longer than that, it is important to check the wiring.
How do you wire an LED light bar to an EZGO?
How do you wire an LED light bar to an EZGO golf cart? 1 Remove the rivets in the front splash by drilling them. 2 Loosen the screws so that the light bar can slide into it easily. 3 Disconnect the wire harness. 4 Connect the headlight bar brackets. 5 Use the bolts on the brackets to tighten the light bar. More ...
How do you put a brake switch on a golf cart?
2:115:23LGT-641 (LGT-B2) Brake Switch on a Club Car DS - YouTubeYouTubeStart of suggested clipEnd of suggested clipIt underneath of the cart up into the brake pedal area. And then we're going to attach it to theMoreIt underneath of the cart up into the brake pedal area. And then we're going to attach it to the brake pedal using the longer of the mounting hardware.
How do you wire a tail light switch on a golf cart?
0:492:06Brake Light Kit | How to Install Video | Madjax® Golf Cart AccessoriesYouTubeStart of suggested clipEnd of suggested clipRun your brake pad harness into your brake pad cavity and plug it in to either your factory harnessMoreRun your brake pad harness into your brake pad cavity and plug it in to either your factory harness or your bucket harness using the female-male bullet connectors.
How do you wire a brake light switch?
0:562:22How To Add A Brake Light Switch To Your Vehicle - YouTubeYouTubeStart of suggested clipEnd of suggested clipThere's even a convenient mounting hole to safely secure it to your frame or custom mounting bracketMoreThere's even a convenient mounting hole to safely secure it to your frame or custom mounting bracket IRLS pressure activated switch simply screws into the eighth inch NPT port that's found on the tee.
Do ezgo golf carts have brake lights?
Brake lights are not present with every EZGO RXV golf cart model. However, there is an option to install them manually. Some EZGO models consist of factory-installed tail lights and brake lights.
Does a golf cart have brake lights?
Check the Bulb In the case of the brake lights in a Club Car golf cart, there are two brake lights at the rear and if both don't light up, the problem could be elsewhere.
How do you wire lights on a Club Car golf cart?
9:1112:18Club Car DS Golf Cart Light Kit Install - YouTubeYouTubeStart of suggested clipEnd of suggested clipSo you can get to the back side of it. Then you can install your light switch with the nut on theMoreSo you can get to the back side of it. Then you can install your light switch with the nut on the back. Then you can reconnect your wires to the back of the light switch.
What color is the brake light wire?
The passenger side is normally green and carries the right turn and brake light. The driver's side is normally yellow and carries the left turn signal and brake. The remaining functions are running/tail lights on the brown wire and the ground which is the white wire.
Where does the brake light switch go?
In most cars, the brake light switch is installed right above the brake pedal. Inside, it has a one- or two-way electric switch.
How do you change a brake switch?
1:154:13How to Replace Brake Light Switch 1994-2004 Chevy S-10 - YouTubeYouTubeStart of suggested clipEnd of suggested clipItself. And just kind of push this right off once you have it slid off the arm you can pull it. AwayMoreItself. And just kind of push this right off once you have it slid off the arm you can pull it. Away. And then remove it from the truck.
How do you unlock the brakes on a EZ Go golf cart?
Release Motor Brake On An EZGO RXV When Batteries Have PowerPut your golf cart key in the neutral position.Lift the front seat.Switch the golf cart tow/run switch to tow.This will allow your golf cart to roll and turns off the motor brake.
Where is the fuse for the lights on a golf cart?
Often, this fuse is located behind various panels and near solenoids in your cart. If you don't keep this fuse in good shape, your ignition may end up failing, and you may be unable to start your cart and run into issues with its operation.
Where is the fuse box on a ezgo golf cart?
EZ-GO Golf Cart Fuse Box Location This wire is present at the point where the big wire of the positive battery terminal is connected to the solenoid. In a 2005 EZ-GO electric golf cart, the fuse block is located below the driver's seat.
What is a golf cart brake light switch?

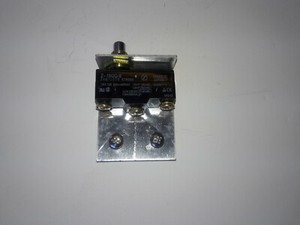

This Golf Cart Brake Light Switch is designed for installation on ALL GOLF CARTS, INCLUDING CLUB CAR, EZ-GO & YAMAHA GOLF CARTS. It's very easy for regular folks to install to the existing brake pad to turn your rear lights into brake lights. It's made to plug & play with Red Hawk wiring, or can be used with the optional brake harness with other brands.
How to contact GolfCartGarage?
If you have any other questions, feel free to give us a call at 1-800-401-2934 or send us an email at [email protected].
Why are my EZGO brake lights not working?
Generally, a loose connection causes EZGO brake lights to not work. If the brake lights were installed manually, check to see if the installation was carried out correctly.
Why are my EZGO RXV golf cart lights not working?
A blown-out headlight fuse is the main reason that your EZGO RXV golf cart lights are not working. An incorrect circuit connection to the headlight fuse can also cause the lights to stop working.
Why do my EZGO RXV brake lights stay on?
Sometimes the brake lights on a EZGO RXV will stay on even when the golf cart is switched off. To fix this problem, it is important to install a brake light kit.
Why do my Ezgo headlights keep dimming?
The main reasons why EZGO headlights keep dimming is because of a faulty accelerator, or loose wiring.
Why are my headlights not working on my Ezgo RXV?
EZGO RXV headlights not working. If the headlights on a EXGO RXV are not working, the main cause is a blown headlight fuse. If the fuse is blown out, the headlights will never work until replaced. If the connections are loose or the wires are torn, the headlights will not power until you replace the wires. While replacing the fuse ...
What is delay timer on brake lights?
There is a delay timer that specifies the time after when the brake lights will shut off. This delay timer should be wired properly so that the brake lights shut on time. The time after which the brake lights will shut is generally mentioned in the instructions manual.
What happens if you connect your headlights to the wrong battery?
Therefore, if the headlight wires are connected to the wrong battery terminals, blowing out occurs. The headlights should be hooked to only two battery terminals. If connected incorrectly, the headlights can blow out. Therefore, you should establish the connections properly and replace the faulty components.
