How to Wire a 36-Volt Golf Cart
- Step 1. Unlatch the golf cart seat clasps and flip the seat back for access to the battery carriage. If you have not...
- Step 2. Use water, baking soda and a brush to clean the battery tops and terminals. Rinse with water and wipe the tops...
- Step 3. Lay out enough battery cable to cut five equal lengths, measuring about eight inches long,...
How to wire a 36 volt golf cart?
How to Wire a 36-Volt Golf Cart Step 1. Unlatch the golf cart seat clasps and flip the seat back for access to the battery carriage. If you have not... Step 2. Use water, baking soda and a brush to clean the battery tops and terminals. Rinse with water and wipe the …
How to install a battery in a golf cart?
Apr 04, 2017 · I reviewing the install process of a 36 Volt Golf Cart. Going over how 6 volt batteries are tied into series that creates a 36 Volt system.
What voltage do golf carts run on?
Step 1 Put on your safety glasses. Step 2 Orient the first bank of three batteries with the positive terminal of each battery facing the front of the golf cart. The first bank is the area of the battery compartment closest to the front of the golf cart. Step 3
How many volts are in an EZ GO golf cart battery?
Oct 07, 2011 · Discussion Starter · #1 · Sep 16, 2011 (Edited) Only show this user. Got a PM about how I hooked 3 12 volt sources together on a 36 volt Golf Cart battery set-up, so I drawed a picture in case someone else was interested. I use these Heavy Duty Disconnects on the Series Plug as well as on the 12 volt sources and on the inverter.
How do you hook up golf cart batteries in series?
1:494:00How to Connect Batteries in Series Parallel Deep Cycle Battery 6 VoltYouTubeStart of suggested clipEnd of suggested clipThe first one in series. Positive negative positive connect the second battery. Negative theMoreThe first one in series. Positive negative positive connect the second battery. Negative the positive I.
How do you wire a 36 volt golf cart with 3 12 volt batteries?
2:544:2012 volt battery in a 36 volt golf cart. - YouTubeYouTubeStart of suggested clipEnd of suggested clipWe haven't killed it yet. So way I'm doing that swap. Give it a try so 36 volt easy go to mentionMoreWe haven't killed it yet. So way I'm doing that swap. Give it a try so 36 volt easy go to mention with these batteries. These are deep cycle deep cycle power you have to get deep cycle batteries.
Are golf cart batteries wired in series or parallel?
seriesElectric golf carts are a good example of an application that use batteries wired in series to increase voltage. Electric golf carts, are powered by drive motors that are typically 36 volt and require six (6-volt) batteries connected in series.
How do you hook up a voltmeter to a 36 volt golf cart?
2:365:1036 - 48 V Charge Meter | How to Install Video | Reliance® Golf Cart ...YouTubeStart of suggested clipEnd of suggested clipYou're going to make a small 18 gauge wire from the female Spade connector on one end and plug it onMoreYou're going to make a small 18 gauge wire from the female Spade connector on one end and plug it on to the number 4 terminal. Then connect the other end of it to the switch leg of the key switch.
How many amps does a 36 volt golf cart pull?
The Importance of Distinguishing your Battery PackBattery SystemTotal VoltsTotal Amps (Approx)6-6 Volts36 Volts1,3504-12 Volts48 Volts6006-8 Volts48 Volts1,0208-6 Volts48 Volts1,8001 more row•Jan 30, 2017
Can you use car batteries in golf cart?
Can You Use Regular Car Batteries in a Golf Cart? The short answer is yes. Standard car batteries are 12-volts, and you could connect three or four of them in series to provide the required 36 or 48 volts to your golf cart motor. However, the design of car batteries provides a huge surge of current for short periods.May 3, 2021
Is it better to connect batteries in series or parallel?
Connecting in series increases voltage, but wiring in parallel increases battery capacity. The total voltage doesn't change. This means that two 12V 30Ah batteries in parallel would give you a total capacity of 60 amp hours. Voltage stays at 12 volts.
Will batteries in parallel last longer?
There is no limit to how many batteries you can wire in parallel. The more batteries you add in a parallel circuit, the more capacity and longer runtime you will have available. Keep in mind that the more batteries you have in parallel, the longer it will take to charge the system.Jun 28, 2021
What is the advantage of connecting batteries in parallel?
Parallel battery configuration helps increase the duration in which batteries can power equipment, but due to the increased amp-hour capacity they can take longer to charge than series connected batteries.
How does a golf cart battery meter work?
0:504:14How to Install a Battery Meter on a Golf Cart by Everything CartsYouTubeStart of suggested clipEnd of suggested clipThe driver side on the passenger. Side these are headed back towards the motor. So we know if weMoreThe driver side on the passenger. Side these are headed back towards the motor. So we know if we take this and just probe it at both ends our meter should be over 48 volts.
Why is my ezgo blinking red?
One Red Flash = Charge Enabled Fault. Check for poor contact in the DC side connector. Check the plug position in the cart side receptacle to ensure good contact. Might also be a battery temperature issue or fault.Aug 16, 2017
Why is my golf cart battery light flashing?
What does it mean when the battery symbol flashes? When the battery symbol flashes, it means that the battery is low and needs to be charged. The flashing may also be a warning that the battery is about to die.
What happens if you connect your golf cart battery incorrectly?
This gives your golf cart full use of each battery and if the batteries are connecting incorrectly, the batteries could overheat and explode, spraying battery acid on you and the golf cart.
How to connect a battery to a bank?
Connect a battery wire to the positive battery terminal of the first battery on your left-hand side to the negative terminal of the second battery of the bank on your left-hand side. Repeat the process to the second and third batteries in the same bank. This will leave the positive terminal of the third battery open.
Where is the first bank of a golf cart?
The first bank is the area of the battery compartment closest to the front of the golf cart.
Series vs. Parallel
Two simple statements govern the rules for series versus parallel battery bank wiring. In a series circuit, the current through each of the batteries is the same. Also, the voltage across the circuit is the sum of the voltages across each component. In a parallel circuit, the voltage across each of the components is the same.
36V Battery Bank
If connected properly in a series circuit as shown, you should be able to test across the battery bank main positive and main negative terminals with a voltmeter and get a reading equal to the sum of each battery. In this example, your reading should equal 36 volts (6×6 = 36).
48V Battery Bank
A 48 volt golf cart battery bank wired in a series circuit is also very common in this industry. However, there are several combinations of individual battery voltages which can provide 48 volts. These combinations include the following:
How to remove old battery from car seat?
Remove the old batteries by first disconnecting the battery cables. The cables are typically secured with a wing nut. You may need a pair of pliers to loosen them.
What is the color of the battery terminal?
The positive terminal will be marked with a "+" sign and is usually denoted by red color-coding. Connect a cable from the negative terminal of the first battery, which will be marked with a "-" sign and black if color coded, to the positive terminal of the second battery in the sequence.
Can you replace a golf cart battery?
With a cart that has been used for a while, it may be necessary to replace the batteries. A new cart may not have batteries. Connecting a battery to your Club Car golf cart is a pretty easy task, as the wiring system for the batteries is fairly basic. Lift the seat of the golf cart in order to access the battery compartment.
Do you need batteries for a golf cart?
Golf carts have becoming increasingly popular for personal use in recent years. Many people now own their own golf carts for recreation. Electric golf carts require minimal maintenance. Batteries are the power source for the cart and these need regular charging.
A look-over first
We will want to look over the golf cart first because with older carts you will want to check over the battery bank and all connections for corrosion and deterioration. To insure good performance you will always want to replace all cables that need it.
Get the right batteries

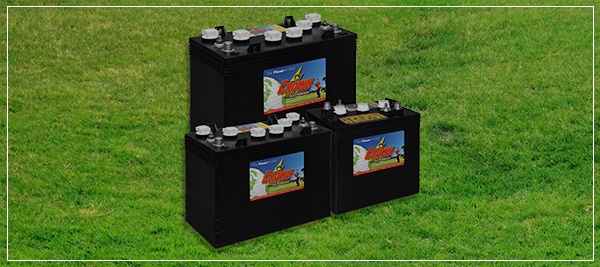

The EZGO Medalist and Txt carts are based on a 36 volt battery bank. Consisting of six 6 volt golf cart batteries. We will be installing a new set of our PowerPro Golf Cart batteries. One of the few batteries available today that are still manufactured in the good ole’ US of A.
Do a test
I always start with a quick golf cart battery test of the system in general. Overall voltage available, then voltage of each individual golf cart battery. While testing voltage I can also run a load test on each golf cart battery.
Check the connections
Once I determine the batteries are in need of replacement I begin the relatively straight forward process. First I will make note of any obvious connection issues (battery cables or terminals with corrosion or defect), replacing anything that does not look fit for continued use or if I feel it will effect the performance of the cart.
Retaining system
Then I remove retaining system, in this carts case it is just the basic plastic spacer/retainer hold down. Secured by two nuts usually 9/16′. Next I will advise you to take your cell phone and snap a few pictures of the battery bank. This will help you in the re-install phase placing the battery jumper cables in the correct location.
Pull out the old batteries
Next you can begin pulling out the old batteries. Once complete I will inspect the battery area and frame for obvious signs of leakage and corrosion buildup.
New batteries go in
Next I will begin to install the new batteries, and reconnect the battery cables to their respective locations. After doing so I will also apply a corrosion preventative to the terminal connections on each individual battery.
What type of battery is used in a golf cart?
A 12-volt deep cycle battery provides the power to start and propel an electric golf cart. Because electric golf carts do not have an alternator to recharge the battery in use, as is the case with trucks and automobiles, a deep cycle battery is necessary to keep the cart running during a long afternoon on the course.
Can you use a marine battery in place of a golf cart battery?
The Technical Answer: Yes. It's possible to use a marine battery in place of electric golf cart batteries. They're both technically gel lead acid batteries designed for deep-cycle purposes, reports It Still Runs. However, this similarity doesn't mean that they should be used interchangeably.
Can you use 3/12V batteries in series?
You can use 3/12v batteries in series to create a 36v power supply. However this supply will be lacking in amperage capacity and deep cycle ability. The result will be poor run time and shortened battery lifetime. The batteries should be golf cart specific batteries.
Can you upgrade a golf cart to 48V?
Yes, but effective and simple. However, although it is possible to upgrade these vehicles to electronic speed control at either the 36V or 48V level, I would not recommend it due to the cost associated with the conversion. You can buy a modern 48V cart for far less money than the 36v to 48v conversion. Herein, can you use 12 volt batteries golf ...
