How To Install A Golf Cart Battery Meter
- Select and obtain your battery gauge meter
- Once you have the meter of your choice, select the mounting location.
- Disconnect the positive terminal on the battery bank.
- Prepare the opening if you are mounting in the dash
- Run the wires from the meter location to the battery terminal points.
- Make the connections and test.
How to connect a battery meter to a golf carts ignition?
Next step will be to connect the wire to the signal terminal on the meter to the ignition. You will need to add a jumper from the ignition on /off switch to the tab on the bottom of the battery gauge which is a signal wire. This way the meter only comes on when you turn the golf carts ignition on.
How do I know when to charge my golf cart battery?
Golf cart battery meters tell you when to recharge your batteries, so you do not end up draining them completely. There are two types of golf cart battery meters – Analog and Digital (usually LED). The analog meter uses voltage to move its needle to indicate the level of charge.
Will discharging my golf cart batteries drain them?
Discharging golf cart batteries below 20-30 percent will wear them out faster leading to a costly replacement. Golf cart battery meters tell you when to recharge your batteries, so you do not end up draining them completely. There are two types of golf cart battery meters – Analog and Digital (usually LED).
How do you wire a club car precedent model golf cart?
A club car precedent model golf cart will have an extra wire set in the wire harness seated behind the dash and the ignition switch. Connect the wires that you’ve prepared with these wires. If you’ve connected them properly, the meter should indicate ~48V or 51Vprovided you’ve a fully charged battery*.
How do you hook up a battery meter to a golf cart?
3:015:1036 - 48 V Charge Meter | How to Install Video | Reliance® Golf Cart ...YouTubeStart of suggested clipEnd of suggested clipYou're going to make a small 18 gauge wire from the female Spade connector on one end and plug it onMoreYou're going to make a small 18 gauge wire from the female Spade connector on one end and plug it on to the number 4 terminal. Then connect the other end of it to the switch leg of the key switch.
How do you install a voltage meter on a club car?
1:176:16How to install voltage gauge on Club Car Precedent - YouTubeYouTubeStart of suggested clipEnd of suggested clipIt is always supplied. This one on the other hand is the one that is engaged when you turn the keyMoreIt is always supplied. This one on the other hand is the one that is engaged when you turn the key so this one cuts off with the key. So I'm gonna wire it and put it in with this wire here.
How does a battery gauge on a golf cart work?
There are two types of golf cart battery meters – Analog and Digital (usually LED). The analog meter uses voltage to move its needle to indicate the level of charge. In the background, you can see “E” written on the far left that indicates empty while an “F” on the far right shows that the battery is full.
How does a battery meter work?
Using an impedance based meter to measure state of charge It measures battery impedance and by referring to stored data uses the impedance to produce a reading of how full the battery is. It just displays battery voltage and percentage charged. It doesn't show amps or amp hours.
How do you hook up a voltage meter?
0:051:02How to Install a Basic Volt Meter Video - Pep Boys - YouTubeYouTubeStart of suggested clipEnd of suggested clipThe lights for the gauge are controlled by the output from the headlight switch and essentiallyMoreThe lights for the gauge are controlled by the output from the headlight switch and essentially that's it. If you have an S or sender port on your gauge. This is not used and should be left open.
What voltage are golf cart batteries?
The standard electric golf cart will have four, six, or eight batteries in total. The voltage will be either 36 volts or 48 volts. These batteries will be contained in a single system, that looks a bit like a large block/box.
How do I know when my golf cart is fully charged?
1:574:02How Do I Read My Golf Cart Charger? | ASK DAVE - YouTubeYouTubeStart of suggested clipEnd of suggested clipMost will flash or blink during charging and present a solid green light when finished.MoreMost will flash or blink during charging and present a solid green light when finished.
Why is my golf cart battery meter flashing?
The light begins flashing when the battery state of charge falls below 10%. indicate a battery charging session has begun. Verification of a completed charge cycle must be confirmed by viewing the status indicator lights on the ERIC charger.
What should a golf cart battery charger read?
If you have a 48 volt system with 8 volt batteries, you'll want to see readings of around 8.2 to 8.3 volts per battery (49.2 to 49.8 total volts). If you are showing something like a 6 volt charge on an 8 volt battery, you have a bad battery and will want to replace it.
How do you hook up a battery monitor?
1:203:43I Am Installing a Battery Monitor, Would You Use a Diagram to Show ...YouTubeStart of suggested clipEnd of suggested clipAnd you want to install a negative distribution if you're going to be installing a battery monitor.MoreAnd you want to install a negative distribution if you're going to be installing a battery monitor. Shut. So negative distribution right here. And then the shunt right here.
How do you monitor battery charge level?
0:112:33How to check your battery charge level and troubleshoot issues?YouTubeStart of suggested clipEnd of suggested clipTesting your battery with a voltmeter. Like the ones built into many battery boxes is another easyMoreTesting your battery with a voltmeter. Like the ones built into many battery boxes is another easy way to test the voltage simply connect your battery.
Do you need a shunt for battery monitor?
These battery monitors require a shunt to be installed on the negative side of the battery terminal. The shunt measures the real-time voltage of your battery system as well as the current draw.
Safety First!
Let’s head to the garage together. Let’s first talk safety, nothing serious here but if you do decide to install on the dash of your golf cart, power tools will make the job a lot easier.
What you will need
You will need a few tools and some supplies for this little job installing your golf cart battery gauge.
Step by Step – How to Install Your New Golf Cart Battery Meter
First let’s determine where you intend to mount the golf cart battery meter?
How many volts does a golf cart battery need?
To get the 24 volts of power with a 12 Volt battery, you will need to charge two batteries at once. Make sure the charging cables are wired properly.
Why is my golf cart battery red?
If the red light on your golf cart battery charger flashes twice, it means the voltage being received is insufficient. The result could be a defective battery charger. Ensure that the connections to the battery are clean. You should then isolate each battery and check its voltage. Look for any batteries with extremely low voltage readings. Then, try trickle charging the battery.
How to read a golf cart battery meter?
To best way to read your battery meter, is to drive your golf cart up a hill. Push the pedal down as far as you can to observe how far down the needle goes . A needle in the red zone indicates that you need to recharge your batteries.
What does a golf cart battery meter tell you?
Golf cart battery meters tell you when to recharge your batteries, so you do not end up draining them completely. There are two types of golf cart battery meters – Analog and Digital (usually LED). The analog meter uses voltage to move its needle to indicate the level of charge.
How many volts does a golf cart battery need?
If your golf cart battery won’t hold a charge at all, and you see the meter flashing, this is cause for concern. EzyGo golf carts generally need at least 24 volts in the battery bank; otherwise the charger won’t even start. If you’re using a 12 volt charger, you’ll need to charge 2 batteries at a time to get the 24 volts of power.
Why is my Ezygo charger flashing red?
This could be due to a defective battery charger.#N#First make sure the connections are clean and attached tightly to the battery. You’ll then want to isolate each battery and check the voltage of each.
What does the red zone on a battery mean?
The white area labeled CHG indicates that your battery is charged. The red zone to the right of CHG indicates that your battery is overcharged. Green zone indicates that your battery is sufficiently charged and is good to go.
What does a digital meter do?

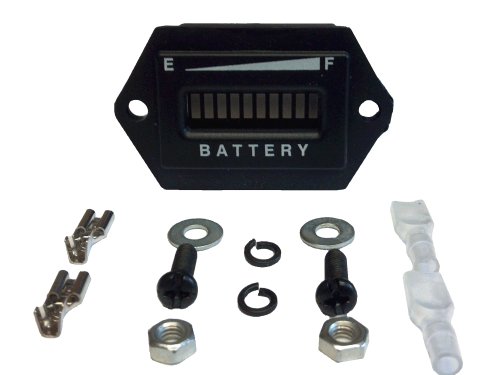

A digital meter uses LED to display the state of charge. A series of lights are shown on the display indicating the level of charge. More bars or lights indicate more charge while fewer bars or lights indicate a lower level of charge.
How many terminals does a digital meter have?
The digital meters have three terminals in place of two, labelled 1,2 and 4. Connect 1 to the main battery bank’s positive terminal and 2 to its negative terminal. Connect 4’s positive terminal to the positive side or the “switched” side of the key switch to make use of the LED function of the meter.
