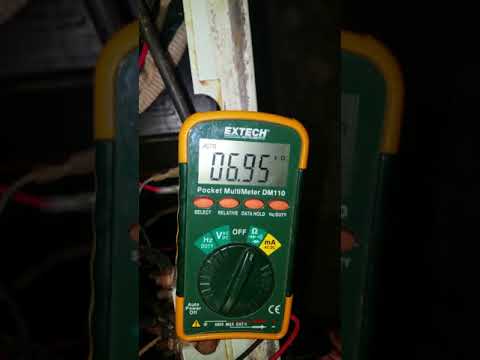

This point should be somewhere below the frame on the back of the golf cart. Locate the batteries below the seat of the cart. Connect the red probe of the voltmeter to the positive terminal of the battery. Then connect black probe to the negative terminal of the battery. Set the voltmeter to 20V after turning it ON.
How to install a battery meter on a golf cart?
Steps to install a golf cart battery meter are: Once you have the meter of your choice, select the mounting location. Disconnect the positive terminal on the battery bank. Run the wires from the meter location to the battery terminal points. Make the connections and test. Mount the meter and arrange the wiring.
How do you test a golf cart voltage reducer?
An alternative is tracking down the input voltage on a golf cart voltage reducer that are on some custom golf carts that have other 12v accessories like stereo or lights. Next step will be to connect the wire to the signal terminal on the meter to the ignition.
How many volts does a golf cart battery have?
A typical golf cart will have a 48-volt or a 36-volt battery to power the golf cart’s lights and other electric accessories. The radio, CD, and tape players require only about 13.7 to 13.9 volts, which is reduced from 24, 36, or 48 volts by the voltage reducer.
How do I replace the battery in my golf cart?
1 Locate the battery hatch cover under the cart’s front hood or below the seat and open it. ... 2 Remove one of the cables connected to any of the battery terminals. ... 3 Connect the B-terminal of the voltage reducer to the negative terminal of the first battery. More items...
How do you put a volt meter in a club car?
3:436:16How to install voltage gauge on Club Car Precedent - YouTubeYouTubeStart of suggested clipEnd of suggested clipSo you know that should be fine to run it off those two terminals without having to make it a hugeMoreSo you know that should be fine to run it off those two terminals without having to make it a huge extended long harness. And I will show you the finished. Product. Alright here's the finished.
How do you hook up a battery meter on a EZ Go golf cart?
2:074:13How to Install a Battery Meter on a Golf Cart by Everything CartsYouTubeStart of suggested clipEnd of suggested clipOn a easy good txt you're going to find them over here on the passenger. Side. This is where youMoreOn a easy good txt you're going to find them over here on the passenger. Side. This is where you main where a heads back to the controller. Same thing with this right here and.
How do you put a state of charge meter on a golf cart?
3:1912:39How To Install A Battery Meter On A Golf Cart - YouTubeYouTubeStart of suggested clipEnd of suggested clipThis is my voltmeter. And I put another piece of velcro I glued it to the bottom of that. So itMoreThis is my voltmeter. And I put another piece of velcro I glued it to the bottom of that. So it should sit right on the bottom of that like that it's got wires. Very small wires it doesn't it doesn't
How do you hook up a 12 volt outlet to a golf cart?
0:536:16The Best Way to Run 12 Volt accessories on your Golf Cart!YouTubeStart of suggested clipEnd of suggested clipAnd you can find fuse boxes that have six to eight different fusible links. They're super easy toMoreAnd you can find fuse boxes that have six to eight different fusible links. They're super easy to wire you have a positive coming in you have negative coming in. So it's a pretty easy setup.
How do you hook up a voltage gauge to a battery?
0:051:02How to Install a Basic Volt Meter Video - Pep Boys - YouTubeYouTubeStart of suggested clipEnd of suggested clipThe lights for the gauge are controlled by the output from the headlight switch and essentiallyMoreThe lights for the gauge are controlled by the output from the headlight switch and essentially that's it. If you have an S or sender port on your gauge. This is not used and should be left open.
What voltage are golf cart batteries?
The voltage will be either 36 volts or 48 volts. These batteries will be contained in a single system, that looks a bit like a large block/box. If you're working with a golf cart that has 36 volts, this means that it will contain six batteries in total, with each battery containing six volts of power.
How does a golf cart battery meter work?
How Does a Golf Cart Battery Meter Work. Golf cart battery meters work by indicating the level of battery discharge in your golf cart. This helps to maintain your golf cart batteries properly. Discharging golf cart batteries below 20-30 percent will wear them out faster leading to a costly replacement.How to Install, Read & Reset your Golf Cart Battery Meterhttps://www.golfstorageguide.com › install-read-reset-golf...https://www.golfstorageguide.com › install-read-reset-golf...Search for: How does a golf cart battery meter work?
How do you hook up battery cables to a golf cart?
The main positive lead for the battery bank coming from the frame of the cart will connect to the positive terminal of the first battery in the bank. Then, connect a cable from the negative terminal of the first battery to the positive terminal of the subsequent battery in the bank.How to Wire a Golf Cart Battery | Golflink.comhttps://www.golflink.com › how_6149_wire-golf-cart-batt...https://www.golflink.com › how_6149_wire-golf-cart-batt...Search for: How do you hook up battery cables to a golf cart?
How do you hook up golf cart batteries in series?
1:494:00How to Connect Batteries in Series Parallel Deep Cycle Battery 6 VoltYouTubeStart of suggested clipEnd of suggested clipThe first one in series. Positive negative positive connect the second battery. Negative theMoreThe first one in series. Positive negative positive connect the second battery. Negative the positive I. I just use black jumper cables it keeps me. I kind of keeps me organized.How to Connect Batteries in Series Parallel Deep Cycle Battery 6 Volthttps://www.youtube.com › watchhttps://www.youtube.com › watchSearch for: How do you hook up golf cart batteries in series?
How do you hook up a 36 volt golf cart battery?
2:494:34Reviewing Battery Install of a 36 Volt Golf Cart - YouTubeYouTubeStart of suggested clipEnd of suggested clipSo the wire coming from the negative side goes to down to the to the actually to the motor set inMoreSo the wire coming from the negative side goes to down to the to the actually to the motor set in there.Reviewing Battery Install of a 36 Volt Golf Cart - YouTubehttps://www.youtube.com › watchhttps://www.youtube.com › watchSearch for: How do you hook up a 36 volt golf cart battery?
Safety First!
Let’s head to the garage together. Let’s first talk safety, nothing serious here but if you do decide to install on the dash of your golf cart, power tools will make the job a lot easier.
What you will need
You will need a few tools and some supplies for this little job installing your golf cart battery gauge.
Step by Step – How to Install Your New Golf Cart Battery Meter
First let’s determine where you intend to mount the golf cart battery meter?
How to install a golf cart battery meter?
Steps to install a golf cart battery meter are: Select and obtain your battery gauge meter. Once you have the meter of your choice, select the mounting location. Disconnect the positive terminal on the battery bank. Prepare the opening if you are mounting in the dash. Run the wires from the meter location to the battery terminal points.
What is a digital meter on a golf cart?
The digital meters will give you a number or a moving bar display a partial charge to a full charge. A battery meter is a great accessory to add to your golf cart and it only requires a minimum amount of skill to install it yourself.
What is a battery meter?
A battery meter (or battery gauge) is a device you add to your electric golf cart to read the state of charge level for your battery bank. They come in either analog or digital, square or round, surface or in-dash mount. Battery meters indicate the voltage level of your battery bank and inform you when it is time to recharge.
How many wires are needed for a battery meter?
LED and digital style battery meters only come with about 6 to 12 in of wire pigtails, so you will need to add extra wire to reach the terminals necessary to power the meter.
Where do the positive and negative wires go on a switch?
Watch closely to make sure the positive wires go to positive terminals, and negative wires go to the negative terminal or ground. A lug connector crimped on the terminating end of the wire makes a professional connection on the switch and battery connection terminals.
What is a golf cart?
Golf carts are also known as golf cars. The term "cart", in its purest sense, refers to a vehicle that does not travel under its own power. Golf cars, however, are most commonly referred to as golf... link to Club Car DS Wiring Diagrams 1981 To 2002.
Can you put a battery meter in the dash?
Once you have acquired your battery meter, you will need to locate the best place on your dash to mount it, either surface mounted or in-dash. If it is a square LED type, you can surface-mount or put it in-dash. If it is a round gauge (analog or digital) it will need to be in-dash to look it’s best.
How many volts does a golf cart use?
A typical golf cart will have a 48-volt or a 36-volt battery to power the golf cart’s lights and other electric accessories. The radio, CD, and tape players require only about 13.7 to 13.9 volts, which is reduced from 24, 36, or 48 volts by the voltage reducer.
How much voltage should be used on a club car golf cart?
Testing the voltage reducer on a gas Club Car golf cart. The voltage should not increase more than 14.5V when accelerating the Club Car golf cart since this is important for maintaining a long life for the battery. The voltage reducer ensures the same.
What to do if your golf cart voltage reducer is below 14 volts?
If the above reading is below 14 volts, stop the golf cart and remove the wire connection above the starter generator.
Why is my golf cart battery burning out?
A faulty voltage reducer causes problems with the motor of your cart. Furthermore, it can lead to other problems such as overcharging of electrical components, which results in them burning out. Moreover, a faulty voltage reducer prevents a golf cart battery from retaining its charge.
Why use voltage reducer on golf cart?
When the battery charges, it helps to regulate and control the power sent to the battery. If the battery sends out a high power output, the reducer limits the output.
What does 12V mean on a golf cart?
If this reading is 12V, then it means that the battery is in good condition. Accelerate the golf cart and recheck the voltmeter reading. Ideally, it should show a reading between 14 to 16V. But if it still shows 12V, then there is a problem with the battery, and the reducer isn’t functioning correctly.
What is a voltage reducer?
A voltage reducer is a device that reduces the voltage of an electric current. Converts the voltage of an alternating current (AC) source to a lower, more suitable level. Voltage reducers are often used with small motors and like power tools, and golf carts.
