Using suitable battery connectors, attach a length of 14-gauge insulated wire to each terminal and run it to the point where you intend to mount the meter. Mount the meter somewhere secure and visible when you use the cart. Two common types of golf cart voltmeter are available; rectangular LED meters and circular analog meters.
Full Answer
How to install a battery meter on a golf cart?
Steps to install a golf cart battery meter are: Once you have the meter of your choice, select the mounting location. Disconnect the positive terminal on the battery bank. Run the wires from the meter location to the battery terminal points. Make the connections and test. Mount the meter and arrange the wiring.
How do I charge my ezygo golf cart battery?
EzyGo golf carts generally need at least 24 volts in the battery bank; otherwise the charger won’t even start. If you’re using a 12 volt charger, you’ll need to charge 2 batteries at a time to get the 24 volts of power. Make sure to hook the charging cables up correctly. Begin charging both batteries (only 2 at a time) in the correct series.
How do I know when to charge my golf cart battery?
Golf cart battery meters tell you when to recharge your batteries, so you do not end up draining them completely. There are two types of golf cart battery meters – Analog and Digital (usually LED). The analog meter uses voltage to move its needle to indicate the level of charge.
How to wire a golf cart to a car?
Prep the end of your wires using crimpers. Prep the terminals and butt connectors using wire strippers. Now, attach the butt connectors and connectors to your wires. A club car precedent model golf cart will have an extra wire set in the wire harness seated behind the dash and the ignition switch.
How do you hook up a golf cart battery meter?
3:315:1036 - 48 V Charge Meter | How to Install Video | Reliance® Golf Cart ...YouTubeStart of suggested clipEnd of suggested clipNext find the number-one terminal. And using the 18 gauge wire this is going to go to your 48 voltMoreNext find the number-one terminal. And using the 18 gauge wire this is going to go to your 48 volt positive of your battery pack I like to use color-coded wires so we're going to use the red.
How do you install a voltmeter on a Yamaha golf cart?
0:566:56How to install a Golf Cart Battery Meter on a Yamaha G19... and others ...YouTubeStart of suggested clipEnd of suggested clipThe driver's side that's it there so you'll put your negative lead there. And you'll put yourMoreThe driver's side that's it there so you'll put your negative lead there. And you'll put your positive. Lead on the two connections. There's two there now one will read zero.
How do you put a state of charge meter on a golf cart?
0:504:13How to Install a Battery Meter on a Golf Cart by Everything CartsYouTubeStart of suggested clipEnd of suggested clipItself. Alright when you got to let your golf cart one of the most important things to me it evenMoreItself. Alright when you got to let your golf cart one of the most important things to me it even though we're going to get ready to install this meter. It's very useful to get you a handheld voltage
How do you install a battery gauge?
0:051:02How to Install a Basic Volt Meter Video - Pep Boys - YouTubeYouTubeStart of suggested clipEnd of suggested clipThe lights for the gauge are controlled by the output from the headlight switch and essentiallyMoreThe lights for the gauge are controlled by the output from the headlight switch and essentially that's it. If you have an S or sender port on your gauge. This is not used and should be left open.
How do you install a hour meter on a golf cart?
1:132:10EZ-GO Hour Meter Kit for Gas Vehicles | How to Install - YouTubeYouTubeStart of suggested clipEnd of suggested clipOn the passenger side seat support locate the pre-drilled holes secure the meter with the providedMoreOn the passenger side seat support locate the pre-drilled holes secure the meter with the provided screws and lock nuts or pop rivets.
How do I know when my golf cart is fully charged?
1:574:02How Do I Read My Golf Cart Charger? | ASK DAVE - YouTubeYouTubeStart of suggested clipEnd of suggested clipMost will flash or blink during charging and present a solid green light when finished.MoreMost will flash or blink during charging and present a solid green light when finished.
How do you hook up a USB port on a golf cart?
1:0714:53Golf Cart Upgrades | Adding a Mirror and USB Charging Ports - YouTubeYouTubeStart of suggested clipEnd of suggested clipBut when you have this all closed up it will give a readout for how many volts your battery has andMoreBut when you have this all closed up it will give a readout for how many volts your battery has and what we currently have on here is this USB right here this is a single.
How does a battery meter work?
Using an impedance based meter to measure state of charge It measures battery impedance and by referring to stored data uses the impedance to produce a reading of how full the battery is. It just displays battery voltage and percentage charged. It doesn't show amps or amp hours.
What is a battery charge indicator?
A battery indicator (also known as a battery gauge) is a device which gives information about a battery. This will usually be a visual indication of the battery's state of charge. It is particularly important in the case of a battery electric vehicle.
How do you hook up a ammeter gauge?
1:336:33Easy Installing of a Car Volt Amp Gauge - YouTubeYouTubeStart of suggested clipEnd of suggested clipUse wire crimpers and a soldering gun. Six placed our lock washers on both sides of the terminals.MoreUse wire crimpers and a soldering gun. Six placed our lock washers on both sides of the terminals.
How do you hook up a volt amp meter?
6:599:01DIGITAL DC VOLT AMP METER - YouTubeYouTubeStart of suggested clipEnd of suggested clipAnd the negative of the load to thick red wire of the meter. Now let us do the positive connectionMoreAnd the negative of the load to thick red wire of the meter. Now let us do the positive connection positive the load and the yellow wire to be connected to the positive of the battery.
How do you reset a golf cart battery meter?
Reset the battery meter. Unhook power to the battery meter for 10 minutes. This will reset the battery meter.
How to install a golf cart battery meter?
Steps to install a golf cart battery meter are: Select and obtain your battery gauge meter. Once you have the meter of your choice, select the mounting location. Disconnect the positive terminal on the battery bank. Prepare the opening if you are mounting in the dash. Run the wires from the meter location to the battery terminal points.
What is a digital meter on a golf cart?
The digital meters will give you a number or a moving bar display a partial charge to a full charge. A battery meter is a great accessory to add to your golf cart and it only requires a minimum amount of skill to install it yourself.
What is a battery meter?
A battery meter (or battery gauge) is a device you add to your electric golf cart to read the state of charge level for your battery bank. They come in either analog or digital, square or round, surface or in-dash mount. Battery meters indicate the voltage level of your battery bank and inform you when it is time to recharge.
How many wires are needed for a battery meter?
LED and digital style battery meters only come with about 6 to 12 in of wire pigtails, so you will need to add extra wire to reach the terminals necessary to power the meter.
Where do the positive and negative wires go on a switch?
Watch closely to make sure the positive wires go to positive terminals, and negative wires go to the negative terminal or ground. A lug connector crimped on the terminating end of the wire makes a professional connection on the switch and battery connection terminals.
What is a golf cart?
Golf carts are also known as golf cars. The term "cart", in its purest sense, refers to a vehicle that does not travel under its own power. Golf cars, however, are most commonly referred to as golf... link to Club Car DS Wiring Diagrams 1981 To 2002.
Can you put a battery meter in the dash?
Once you have acquired your battery meter, you will need to locate the best place on your dash to mount it, either surface mounted or in-dash. If it is a square LED type, you can surface-mount or put it in-dash. If it is a round gauge (analog or digital) it will need to be in-dash to look it’s best.
Safety First!
Let’s head to the garage together. Let’s first talk safety, nothing serious here but if you do decide to install on the dash of your golf cart, power tools will make the job a lot easier.
What you will need
You will need a few tools and some supplies for this little job installing your golf cart battery gauge.
Step by Step – How to Install Your New Golf Cart Battery Meter
First let’s determine where you intend to mount the golf cart battery meter?
How to read a golf cart battery meter?
To best way to read your battery meter, is to drive your golf cart up a hill. Push the pedal down as far as you can to observe how far down the needle goes . A needle in the red zone indicates that you need to recharge your batteries.
What does a golf cart battery meter tell you?
Golf cart battery meters tell you when to recharge your batteries, so you do not end up draining them completely. There are two types of golf cart battery meters – Analog and Digital (usually LED). The analog meter uses voltage to move its needle to indicate the level of charge.
How many volts does a golf cart battery need?
If your golf cart battery won’t hold a charge at all, and you see the meter flashing, this is cause for concern. EzyGo golf carts generally need at least 24 volts in the battery bank; otherwise the charger won’t even start. If you’re using a 12 volt charger, you’ll need to charge 2 batteries at a time to get the 24 volts of power.
Why is my Ezygo charger flashing red?
This could be due to a defective battery charger.#N#First make sure the connections are clean and attached tightly to the battery. You’ll then want to isolate each battery and check the voltage of each.
What does a digital meter do?

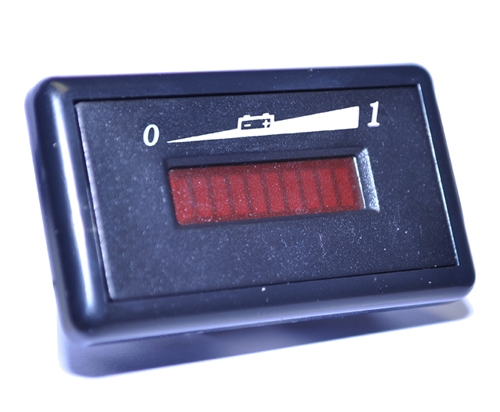

A digital meter uses LED to display the state of charge. A series of lights are shown on the display indicating the level of charge. More bars or lights indicate more charge while fewer bars or lights indicate a lower level of charge.
How many terminals does a digital meter have?
The digital meters have three terminals in place of two, labelled 1,2 and 4. Connect 1 to the main battery bank’s positive terminal and 2 to its negative terminal. Connect 4’s positive terminal to the positive side or the “switched” side of the key switch to make use of the LED function of the meter.
Is the Ping G25 adjustable?
Is the Ping G25 driver adjustable? The Ping G25 driver is adjustable. It’s possible to do four adjustments using the hosel adapter of the driver apart from the stated loft setting and...
How to find the voltage of a golf cart?
Find the voltage of your golf cart by multiplying the voltage of a single battery by the total number of batteries.
What happens if you touch a live wire on a golf cart?
If your jewelry touches a live wire you will become part of the circuit. This may result in severe burns. Dirty battery contacts must be cleaned to maintain good battery performance.
What to do if your cart touches a wire?
Remove all metal jewelry and watches before working on the cart's electrical system . If your jewelry touches a live wire you will become part of the circuit. This may result in severe burns. Dirty battery contacts must be cleaned to maintain good battery performance. Battery corrosion and fluid are both acidic and poisonous. Wear protective clothing and wash your skin afterwards.
Why do analog meter lights stay on?
Analog meters can stay on all the time because they do not draw any power from the battery. LED meters need a switch so the lights don't stay on when the motor is switched off. The battery meter should show the voltage you calculated in Step 1. If the voltage drops below this value, remember to charge the batteries.
How many pins are on an LED meter?
LED meters have three pins at the back, labeled positive, negative and switch. Analogue meters have just two pins, positive and negative. Attach cable connectors to the ends of the positive and negative wires from the battery, then connect them to the appropriate pins on the meter.
What does reduced voltage mean on a cart?
Reduced voltage indicates that the batteries require recharging or servicing, while normal voltage provides reassurance that the cart is functioning correctly. Installing a battery-monitoring voltage meter is ...
