Pull the 6-pin or 10-pin connector backward so that the pins are exposed just enough to measure them. Keep the key and Run/Tow switch in ON position. Ensure that the F/R switch is in the forward position. Take the voltage reading between both the throttle pins.
What is an inductive throttle sensor in an EZGO?
The inductive throttle sensor in an EZGO is a part of the electrical system of the golf cart and is connected through a wiring harness to the direction selector. It functions inside the pedal box. The ITS is used along with the cart’s electric speed controller like PDS, DCS and Series.
How to replace a sensor on an EZGO golf cart?
How to replace a sensor on an EZGO golf cart. The Run/Tow switch of the cart must be in Tow position when doing the replacement. Remove the rear tire from the driver’s side of the golf cart. Remove the circlip with two clips above the speed sensor. Push the speed sensor in gently and then pull it out from its place.
How do I replace the inductive throttle sensor on my cart?
Take off the rocker panel on the driver’s side of your cart Lift up the floor mat and look for a cutout on the floorboard Remove the cutout and take off the screws from the pedal box Find the inductive throttle sensor and remove its connecting screws
Why choose E-Z-GO electric golf carts?
With OEM quality, your safety in mind and fun accessories for you to customize your vehicle, it’s no wonder why more turn to E-Z-GO for all golf cart needs. The Inductive Throttle Sensor is an original equipment manufactured part designed for use on E-Z-GO Electric vehicles.

How do I check the throttle sensor on my EZGO?
Take a digital multimeter and set it to the volts reading. Place the positive probe of the meter on the white wire terminal of the ITS. Release the accelerator pedal slowly. The reading should be in the 0.45V to 0.53V range when the micro-switch gets activated.
Where is the speed sensor located on a EZ Go golf cart?
EZGO TXT golf cart speed sensor location The speed sensor on an EZGO TXT golf cart is located close to the motor. This sensor is present on the rear side of the motor on the driver's side of the golf cart.
Where is the reset button on a ezgo golf cart motor?
Locate the motor Remove the panel so the electric motor is visible. Electric motors usually include reset buttons that can perform similar to circuit breakers. Look in the area where several electrical wires enter the motor and locate a small red button. This is the reset button.
How do you test the speed controller on a EZ Go golf cart?
Connect the negative probe to the controller's M terminal and positive probe to the B+ terminal. Press the accelerator and watch to see if the voltage increases. It should increase from a reading of 0 to the full voltage of the battery. If the motor is not turning, the problem may be in the directional switch or motor.
Why is my ezgo golf cart going so slow?
A EZGO RXV and TXT golf cart can run slow because of a faulty speed sensor, low battery charge and insufficient levels of water in the battery. A problem with the speed sensor. A faulty speed magnet. One or more batteries could are weak and don't have sufficient charge or the water level could be low.
Why is my golf cart going so slow?
Low Battery Usually, the most common reason golf carts slow down is when they don't get enough power output from the battery. If the battery pack charge is very low and your cart is out of power, your cart will run slow.
Do all golf cart motors have a reset button?
Electric golf cart motors have a reset button on their chassis which is designed to put your motor back into its original factory state. While it doesn't repair damage that may have occurred to the motor over the years, obviously, it does help to overturn any changes to the operation which may have occurred.
How do I reset my golf cart motor?
First, you'll want to reset your motor. It should have a small reset button (Usually it will be red) located near the main battery supply. Hit the reset button and then put the cover back on the motor. The next step would be to recharge your cart and try turning it on again. If it starts up then you're in luck!
How do I reset the OBC on my EZ Go golf cart?
Resetting the OBC must be performed in this order:Key switch to off.Set forward/reverse to neutral.Put tow/run switch to tow.Disconnect the negative battery terminal from the battery pack.Put the tow/run switch to run.Put forward/reverse switch to reverse.Put key switch to on.More items...
How do I fix my EZGO speed controller?
Here are 5 steps you should follow for a DIY fix to your golf cart's speed controller.Flip the maintenance switch. ... Reset the battery cable. ... Check your connections. ... Test the solenoid. ... Check your controller's power output.
How can I make my EZGO golf cart go faster?
One way to increase the speed of EZ Go golf carts is to incorporate an octane booster when you fill the tank. The cart will have more pick-up, and it could gain as much as 5 mph. A different approach is to take out the throttle linkage governor on the carburetor.
How do you adjust the governor on a EZGO golf cart?
1:065:06How to Adjust an E Z Go Golf Cart Governor - WikiVideo - YouTubeYouTubeStart of suggested clipEnd of suggested clipIf you are curious this is your carts carburetor loosen the small nut and tighten the larger nut.MoreIf you are curious this is your carts carburetor loosen the small nut and tighten the larger nut. The more you tighten the larger nut the faster your cart will.
How to keep a golf cart from moving?
Park your golf cart and place bricks behind the wheels to keep it from moving. Open up your cart’s interior and identify your wire harness and your throttle box cable. Look for the four-wire Molex plug – it will have four wires, as its name indicates.
What is an inductive throttle sensor?
The inductive throttle sensor is a part installed into your cart’s electrical system and is designed to control your speed. It works along with the speed controller and other similar parts to ensure that you get enough power for your cart whenever you run it. Typically, the throttle sensor is connected to your cart via a wiring harness ...
What is an Alltrax controller?
The Alltrax controller is a part on your cart that works with your throttle sensor to manage electrical flow. This test is often the most accurate way to identify inductive throttle sensor problems. However, it does require a bit more work than the other tests that we will discuss.
How to check if a cart is working?
Let’s break this process down into steps to make it easier for you to understand how to do it properly: 1 Park your cart and put bricks behind the wheels to keep it from moving 2 Open up the cart’s hood or the back seat to find the engine where it operates 3 Identify the proximity detector – use your cart’s schematic to find what is often a large and yellow part 4 Unhook it from the battery on your cart and place these cables to the side to be safe 5 Hook a voltimeter up to this part on the proper positive and negative terminals 6 Start up your cart and press the accelerator pedal down slowly as it runs 7 Watch the voltage that comes from the proximity detector as the cart runs 8 Write down these voltages and then turn off your cart to avoid shocks 9 Reconnect your battery wires and close the hood of your cart to finish up
What happens when you press your gas pedal down?
For example, when you press your gas pedal down, an electrical signal gets sent to the inductive throttle sensor to get an idea of how much speed that you want. Once this part receives that signal, it sends an electrical signal to the throttle in the cart to produce the proper speed. Likewise, when you turn your cart’s wheel as you drive, ...
How to find out if a cart has a proximity detector?
Open up the cart’s hood or the back seat to find the engine where it operates. Identify the proximity detector – use your cart’s schematic to find what is often a large and yellow part. Unhook it from the battery on your cart and place these cables to the side to be safe.
Why is proximity important in golf carts?
The proximity detector is an important part of your golf cart because it helps to make sure that your electrical flow is smooth and even. Testing your sensor using this part requires you to know how to identify it and knowing how to test it with various types of voltimeters.
Where is the ITS on an Ezgo PDS?
The ITS of an EZGO PDS is housed under the floorboard. To access the ITS, you’ll have to take off the rocker panel from the driver’s side and lift the floor mat upwards. There is a cutout on the floorboard behind the accelerator pedal. You can raise the cutout and take off the screws that keep the lid in place on the pedal box.
What is an inductive throttle sensor?
The inductive throttle sensor in an EZGO is a part of the electrical system of the golf cart and is connected through a wiring harness to the direction selector. It functions inside the pedal box. The ITS is used along with the cart’s electric speed controller like PDS, DCS and Series.
What voltage should a series throttle be?
For Series and DCS carts, the signal range should be between 0.4 to 0.6 volts and 1.5 to 1.7 volts.
Where to keep positive probe on multimeter?
Keep the positive probe of the multimeter above the red wire terminal of the six-pin connector. If there is no battery voltage, the red wire between the connector and the solenoid is faulty. Keep the positive probe of the multimeter above the black wire terminal of the six-pin connector.
What happens if the solenoid doesn't go?
If there is no solenoid activation, one or both wires connected to the microswitch fail to make proper contact with the Molex connector. However, if the solenoid does click but doesn’t go, one or both the other wires connected to the ITS may have failed to make proper contact with the Molex connector.
Customers who viewed this item also viewed
Ezgo golf cart floor pedal box micro switch. WITHIN LOWER 48 US STATES.
Special offers and product promotions
Save 5% on Universal Golf Cart Rear View Mirror when you purchase 1 or more Qualifying items offered by Accessories for EZGO. Here's how (restrictions apply)
From the manufacturer
All E-Z-GO products are either direct replacement parts or accessories designed to specifically fit your vehicle. E-Z-GO designs and tests our parts and accessories for superior quality, performance and reliability.
Product Description
The Inductive Throttle Sensor is an original equipment manufactured part designed for use on E-Z-GO Electric vehicles. This device can be used with 5-pin electric speed controllers and on vehicles with the DCS (Drive Control System) and PDS (Precision Drive System) controllers.
Featured items you may like
Ezgo golf cart floor pedal box micro switch. WITHIN LOWER 48 US STATES.
Where is the speed sensor on an EZGO golf cart?

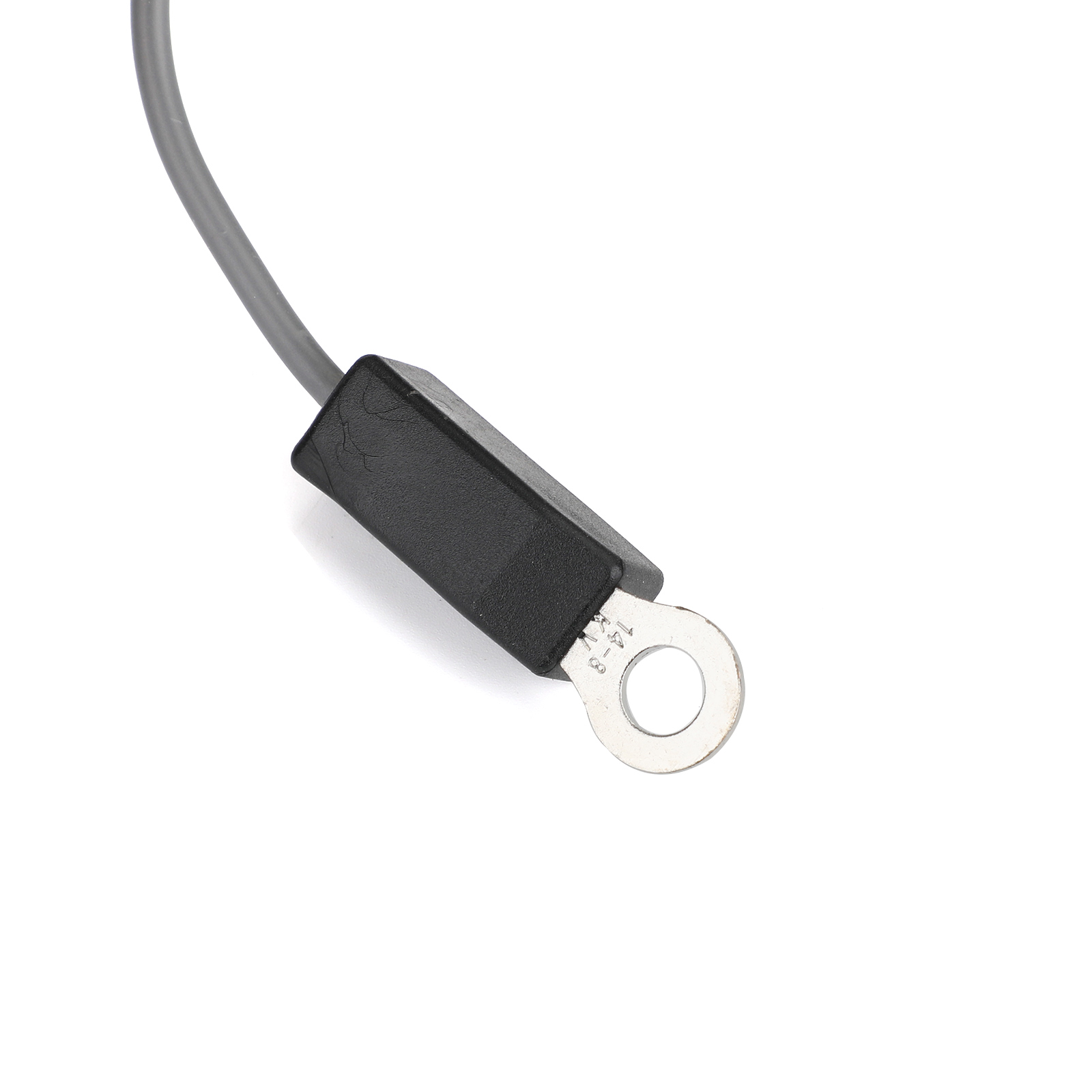

The speed sensor on an EZGO TXT golf cart is located close to the motor. This sensor is present on the rear side of the motor on the driver’s side of the golf cart.
How to change speed sensor on golf cart?
Remove the rear tire from the driver’s side of the golf cart. Remove the circlip with two clips above the speed sensor. Push the speed sensor in gently and then pull it out from its place. Remove the wire connection behind the sensor. Connect the wire to the new speed sensor.
How fast does a PDS golf cart go?
If there is no input from the sensor, the stock controller will make the cart move only at a speed of 2 to 3mph.
Why does my EZGO golf cart beep?
If you hear a rapid beeping sound and resistance to the pushing action because of the regenerative braking action , your EZGO golf cart has a good speed sensor and is communicating with the speed controller. On the other hand, if the cart begins to roll, it indicates that the speed sensor is faulty.
Why does my golf cart beep when it goes downhill?
If the golf cart beeps very fast and continuously when it goes downhill, it means that the sensor is communicating with the speed controller. This indicates a faulty controller and replacing it should help.
How to replace a speed sensor magnet?
A pair of pliers can make the replacement easy. Remove the clip holding the speed sensor magnet in place. Pull the magnet out gently using the pliers. Put the new magnet in the same place from where you took out the old one. Fasten the holding clip once again and ensure that it doesn’t slip out of place.
