How do you fix the parking brake cable on a VW?
The only fix is to replace the cable and/or parking brake line boot. When you pull the parking brake lever up, the lever pulls a metal wire that actuates the rear brakes. Parts Parking brake cable VW# 1J0 609 721 E OR1J0 609 721 AC OR1J0 609 721 K (MUST READ NOTE)
How do you replace the parking brake cables on a Ford Ranger?
To fix, first remove the center console. Remove the center console as shown in center console removal. To adjust the parking brake, tighten or loosen the nut marked in red. To replace the parking brake cables, remove that nut. Press on the brakes firmly three times.
How does the GTI Mk4 parking brake system work?
Unlike most cars that use the inside of the rear disk for the parking brake system the GTI Mk4 parking brake system uses the rear brake calipers to hold the car. The system is simple and the only down side is possible rotor warp if you are performing hard repeated braking and then set the parking brake.
How do I know if my parking brake cable is interchangeable?

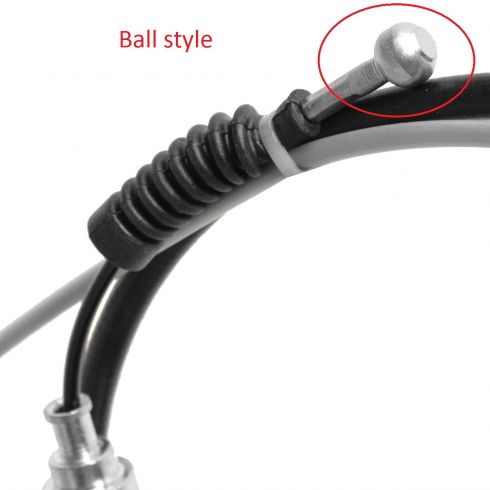

You must check the parking brake cable on your car and see which part number you have. The "AC" and "K" cables are slightly different lengths than the 'E' cable and have a different "ball" end at the caliper end. Retaining clip for rear axle VW# 1H0 609 734 C OR1H0 609 734 F (parts were superceded and are interchangeable)
How do you install an emergency brake cable?
8:4412:07How to Replace and Adjust Parking Brake Cables - YouTubeYouTubeStart of suggested clipEnd of suggested clipAnd it's pretty easy from here all we need to do is put the cable. Through this part of the bracket.MoreAnd it's pretty easy from here all we need to do is put the cable. Through this part of the bracket. Pull it up swing it around I like to push it and really set it in that groove.
How do you change a rear parking brake cable?
Insert the front end of the cable in the hole in the body and push.Using the screwdriver, pry the cable clip up and in until it locks in place.Slide the new cable into the groove on the pedal assembly and seat firmly.Pulling the slack out of the cable as you go, re-secure all clips and clamps previously removed.More items...
How do you adjust the handbrake on a VW Golf mk4?
1:367:15Proper way to adjust parking brake VW Golf Mk4 - YouTubeYouTubeStart of suggested clipEnd of suggested clipAnd this is your 10 millimeter adjusting nut there is a cable going to parking brake lever and twoMoreAnd this is your 10 millimeter adjusting nut there is a cable going to parking brake lever and two cables to each of the brake calipers.
Where does the parking brake cable go?
In cars with mechanical parking brakes, parking brake cables connect the parking brake lever or pedal to the rear brakes. Parking brake cables. Because the cables run underneath the car, they tend to rust and sieze up. Other problems with cables include stretching, fraying, and breaking apart.
Is it easy to change handbrake cable?
Replacing an exposed secondary handbrake cable is not too difficult - you can see the entire cable run under the car. It is a good idea if possible to make a sketch of exactly which brackets the cable fits to before removing it - there may be extra brackets fitted under the car for different models.
How do you replace a breakaway cable?
1:073:27Trailer Breakaway Cable Replacement (A Better Option)YouTubeStart of suggested clipEnd of suggested clipBecause it was just simply too long and replaced it with this when you hook. This up it's got a niceMoreBecause it was just simply too long and replaced it with this when you hook. This up it's got a nice carabiner. Here so you can hook it up to the actual hooks or the holes on your vehicle.
How do you adjust the parking brake on a VW Golf?
To adjust how the brake engages; get in your car, start it, press the brake pedal, release the parking brake. Then push the brake pedal as far as you can firmly, next push in the parking brake handle release button and hold it in, lift it as far as you can 2-3 times upward. Release the brakes.
How do I adjust my parking brake?
2:456:41How To Adjusting Your E-brake!!! - YouTubeYouTubeStart of suggested clipEnd of suggested clipSo there's two ways that you can adjust your emergency handbrake. One well the easy way which I'mMoreSo there's two ways that you can adjust your emergency handbrake. One well the easy way which I'm gonna be doing is you can remove this rubber grommet that's right here.
How do you use the electric handbrake on a VW Golf?
Using our electronic parking brake couldn't be easier. Just pull and hold the button and your car is securely parked and an indicator light reassures you that the brake is on. When you're ready to drive off again just depress the brake pedal, push the button to release the parking brake and drive away.
Is it legal to drive with a broken handbrake?
Can I drive with a broken handbrake cable? No, you should not drive with a broken handbrake cable. If the release cable is broken (or even partially/slightly damaged), then your parking brake will be stuck on and your vehicle won't be able to roll.
Unlike most cars that use the inside of the rear disk for the parking brake system the GTI Mk4 parking brake system uses the rear brake calipers to hold the car
The system is simple and the only down side is possible rotor warp if you are performing hard repeated braking and then set the parking brake. Adjustment is much easier than on the system that uses a traditional brake shoe inside the drum of the rear rotor.
Project Photos
Figure 1 Adjustment - With the rear of the car safely supported in the air and the ash tray and cup holder removed you will see the brake handle adjustment mechanism. There is a long bolt that's comes from the rear of the parking brake handle that a compensator (red arrow) is attached too.
