How to test a golf cart Charger?
– To test – One pin will need to be positive in and the other be negative. Usually the top two pins. Then the third pin is usually a low voltage signal for a lock-out feature on these newer style golf carts. This is so the user cannot drive off with a golf cart “If the charger is still plugged in”.
Do electric golf carts need to be charged?
Remember, it’s a good idea to charge your cart after every round of golf because consistently allowing the charge to get too low can damage your batteries. The method used for charging your electric golf cart will vary depending on its particular make and model. However, the following steps can be applied to most carts:
What should I do if my golf cart won't charge?
Keep the golf cart where there is good ventilation to prevent gases from accumulating during the charging process. Check if the surrounding temperature is very high. If so, you’ll have to wait until it becomes normal. Confirm that the voltage settings are as specified in the instructions and do the required compensation for temperatures over 80°F.
How long does it take to charge a golf cart?
It’s ideal not to allow the batteries to go with less than 70 percent charge. A golf cart should be charged after completing one round of 18 holes. Institutional golf carts charged according to the criterion given above can travel for four to five hours covering a distance of 3.5 miles.
How long does it take to fully charge a golf cart?
Charge your batteries for 8 to 10 hours with the proper style of golf cart battery charger. The best practice is to charge overnight after you are done using your cart for the day. Even if you only used the cart for 5 minutes, you'll want to give the golf cart batteries a good charge.
How do I know if my golf cart batteries are charging?
Turn on the Charger – Once you have the voltmeter attached to your battery charger, turn on the charger to read the electrical output. Typically, the needle on the voltmeter will move from left to right – with right being higher – to gauge the amps produced.
What do the lights mean on a golf cart charger?
The blinking LED lights indicate different status of charge: Short green flash = less than 80% charged. Long green flash = more than 80% charged. Solid green light = 100% charged. Red flash = fault code, charging error.
Should golf cart be on when charging?
Manufacturers suggest leaving your golf cart plugged in all of the time while using an auto battery charger, as it will keep the batteries fully charged and always available. If batteries are not charged for prolonged storage, they may damage over time and deliver less capacity.
How do I know when my ezgo golf cart is fully charged?
The charger will begin charging as soon as it is plugged into the cart. Allow the charger to complete the full charging cycle; unplugging the charger before the cycle is complete will result in damaged batteries. When the LED displays long red flashes, the battery is fully charged.
Why is my golf cart battery light flashing?
Weak batteries are one of the main reasons why the battery light flashes even when the cart is turned off and the key removed. Low battery voltage is also another reason for this type of flashing. If the batteries are fully charged, there should be no flashing.
What does a red light on a battery charger mean?
Both the 3 amp on-board and 3 amp off-board chargers flash a steady red light if there is an abnormality with the charging system. Generally, this occurs when the charger does not receive a signal from the batteries, in other words there is a break in the connection between the charger and batteries.
What does green light on battery charger mean?
When the charger is plugged into the vehicle and into the wall the red light indicates that the battery pack is charging, and the green light indicates that the charger is plugged into the wall.
Why is my cart charger blinking red and green?
If the pen lights up green and the charger lights up red, your pen is dead! Once your pen reaches full charge, the charger light will turn green and the pen light will shut off, notifying you that your pen is good to go with full battery life.
Do golf cart chargers turn off automatically?
Yes. It is healthy for the batteries to be fully charged at all times. So, you should charge your golf cart every night. Automatic golf cart chargers will shut off once the batteries are fully charged, so there isn't a concern that they will be over charged.
Should golf cart batteries bubble when charging?
The bubbling or gurgling sound is entirely normal during the charging process, especially when the battery is new because it is essential for the golf cart batteries to solidify the new lead within the batteries, commonly called curing the lead.
How do I know if my golf cart batteries are dead?
Here are six signs to look for when batteries need replacing.Charge Times Are Out of Hand. Just like any rechargeable battery, the repeated cycles of draining and charging your battery can take a toll on it. ... No “Get Up and Go” ... You See Visual Signs. ... Driving Until They Die. ... People Are Always Running The Radio.
Find A New Golf Cart Battery Charger Or Batteries
1. All Golf Cart Chargers 2. Club Car Chargers 3. EZGO Chargers 4. Yamaha Chargers 5. Buyer's Guide - Picking the Best Golf Cart Charger. 6. Golf C...
Troubleshoot An Old Golf Cart Battery Charger & Batteries
1. Why is my golf cart battery charger not working? 2. I manually charged my batteries, that did not work, now what? 3. Do I have a battery or a ch...
Golf Cart Charger Questions
1. How do I choose a replacement charger for my Powerdrive, Powerwise, etc.? 2. What's the difference between the Links & Summit charger? 3. How lo...
Golf Cart Battery Questions
1. Do I have 6v, 8v or 12v golf cart batteries? 2. Do I have a 36 volt or 48 volt golf cart? 3. How long do golf cart batteries last? 4. How can I...
Why is my golf cart charging red?
Occasionally a red fault light on a golf cart charger can mean that the batteries do not have enough voltage in them to allow the charger to kick on (see Charging Dead Golf Cart Batteries above).
What wires are needed to charge a golf cart?
Only the red and black wires are needed to completely charge the golf cart. The blue wire is an optional safety wire. If hooked up to the motor controller it will not allow you drive the golf cart while charging it. Think about being at the gas pump and driving off with the pump still in the car.
What is an OBC on a club car?
When you plug the charger into your Club Car, the OBC will tell the battery charger when to start and stop charging based on the voltage levels in your batteries.
What voltage do you need for a 36V golf cart?
You must match volts to volts. A 36V cart requires a 36 volt golf cart charger. A 48V cart requires a 48 volt golf cart charger. You can burn up your batteries if you do not charge with the proper voltage.
How many volts does a golf cart battery need?
An automatic golf cart battery charger needs a minimal amount of voltage in the golf cart battery to even start working. They need somewhere in the range of 20-35 volts in the batteries to allow the chargers to know that they are connected up to batteries and to kick on.
Why is my golf cart battery charger not working?
Bad connections will cause any battery charger to not function properly. After you've charged up your batteries and checked every connection and you are still having issues, it's probably safe to say you've got a golf cart battery charger problem and may need to service it or buy a new one.
Why is my charger making a clicking noise?
If the charger makes a loud clicking noise, this is likely a battery charger issue.
How long does it take to charge an electric golf cart?
It can take anywhere from 3 to 10 hours to fully charge your electric golf cart. This is assuming the battery is nearly discharged. The exact time it will take depends on the age of your batteries and the type of charger you use. Generally, you can expect older batteries to take longer to charge (5+ hours).
Where is the charging plug on a golf cart?
Connect charging plug to the cart’s charging outlet – the charging outlet can be located on the exterior of the cart or underneath the seat. Leave the charger connected until the battery is fully charged – not allowing your battery to fully charge might reduce its lifespan.
What does a red light on a battery charger mean?
Others have indicator lights to let you know. For example, a red light might mean that the battery still needs to be charged while a green light usually indicates it is fully charged.
Can you charge a golf cart with a generator?
Most people choose to use a simple wall outlet from their home. If your golf cart is usually stored somewhere where this is not an option, you can also use a generator. ***Make sure you charge your cart in a well-ventilated area.
Can you overcharge a golf cart battery?
If you frequently run your cart until the battery is nearly dead, it will damage the battery and can significantly shorten its lifespan. On the other hand, it’s important not to overcharge your electric golf cart battery as repetitive over-charging can also lead to battery damage.
How to Test a Golf Cart Battery Charger
Well, before jumping on battery charger testing, you need to do some analysis. If you want to make sure whether the battery is damaged, you should buy a Digital Voltage Tester. Then you need to charge your golf cart battery 100%.
How to Test a Golf Cart Battery Charger- Failure Factors
Well, golf cart battery charger frequently faces Timer units, diodes & bad DC chargers plugging failure.
Final Thought
Well, when you are troubled with the question of how to test a golf cart battery charger, don’t forget your battery ages. Because of the lead-acid can give services for 5-6 years. If your golf cart charger is more than eight years & it’s obvious to replace it without any testing. However, replacing a golf cart battery requires $150-$250.
What happens if my golf cart is not charging?
If you do not have any voltage in the batteries you will need to get some back into the battery bank before the golf cart charger will charge again .
Where to find battery in golf cart?
You will usually find the batteries to your golf cart under the front seat which opens or folds out towards the golf cart steering wheel on most Club Cars, Ezgo and Yamaha golf carts. Look for the two terminals with the most wires going to them. Usually this is the positive and negative most terminals in the battery bank.
What voltage do golf cart batteries work on?
All golf cart battery chargers usually operate on 110VAC but some have the ability to operate on multiple voltages for other power grids like in Europe vs US. 110/230VAC would reflect this feature on charger. Good DC side connection. This is the wire or cord with a connector that you would plug into the golf cart.
What is the third pin on a golf cart?
Then the third pin is usually a low voltage signal for a lock-out feature on these newer style golf carts. This is so the user cannot drive off with a golf cart “If the charger is still plugged in”.
Do golf cart batteries work the same?
Wiring batteries in a series style circuit is quite simple and always the same. No mater how many golf cart batteries you have it will always work the same.
How to test golf cart battery charger?
How to test a golf cart battery charger? Assure that the golf cart battery charger is actually running and that you have volta ge at the battery charger plug by using a multimeter or voltage tester. Let’s go over some of the simple basics and get that battery charger operating the way it should. Step 1.

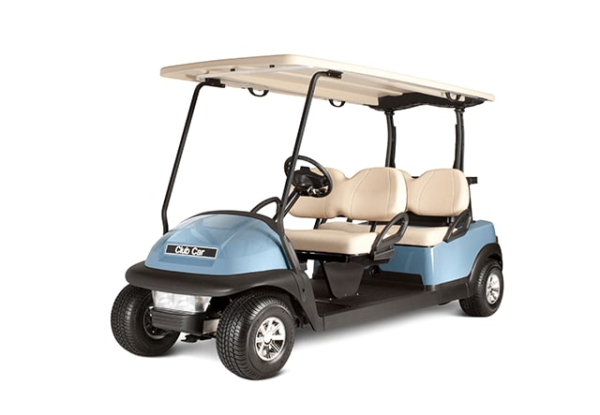

What is a golf cart?
Golf carts are also known as golf cars. The term "cart", in its purest sense, refers to a vehicle that does not travel under its own power. Golf cars, however, are most commonly referred to as golf... Continue Reading.
How many volts does a battery charger need?
Did you know that most modern battery chargers will not even begin to charge batteries if the batteries original charge is not high enough? The automatic battery charger needs a minimal amount of voltage in the batteries to even begin working, say somewhere around 20 to 35 volts total.
How long does it take for a battery charger to turn on?
With an automatic battery charger, the batteries must be hooked up before the charger will even turn on. allow 3 to 4 seconds for the time delay And if there is no click and a transformer hum, then we need to make sure that there is a proper connection between the battery charger and the batteries.
What to do if your car battery is too low?
If the batteries are too low, charge them individually with a regular old car battery charger, usually the12-volt variety. 12-Volt Automotive Battery Charger. You can either charge them to full capacity or just high enough to meet the minimum voltage required.
How to test a diode?
Test the diodes. Diodes are a one-way gate and will pass dc voltage in one direction. Connect your continuity tester leads on 1 and 3 shown in the illustration above…then reverse the leads. You should get continuity one way but not the other. Repeat this procedure on 2 and 3.
