Measuring a Go-Kart Belt
- Determine Belt Type. The first thing that you’ll need to do is to identify which type of drive belt you need for your torque converter.
- Measure Driven Pulley Diameter. The next measurement you’ll need is the diameter of the driven pulley. ...
- Measure Center Distance. ...
- Check Measurement Against the Belt Size Chart. ...
How do you check the drive belt on a golf cart?
To check if the drive belt is too tight, follow these steps: Switch OFF the golf cart’s engine. Reach to where the drive belt is located and use your fingers to press the drive belt between the two clutches. The belt must deflect at least one and a half inches under the pressure of your fingers.
What is the top width of a go-kart belt?
The top width refers to the width of the go-kart belt on the top side. The reason why the width of a belt needs to be measured from the top is because from a cross sectional point of view, the top and the bottom are unevenly wide. This is due to the angles on the asymmetric and symmetric belts.
How do I choose the center distance for my belt?
Should your machine's center distance between the crankshaft and the jackshaft fall between the center distance settings listed here, select from the two belts, the one with the larger outside circumference (O.C.) for best wear and to avoid machine "creep" during idling. Comet 40 and 44 Series 7/8" Top Width Belts Part Number Center Distance
What is the function of the drive belt in a cart?
The primary clutch drives the cart and the belt helps it to rotate the secondary clutch (they are referred to as the drive clutch and the driven clutch respectively). The drive belt, unlike some of the other automotive belts, are very thick.
What size is a golf cart belt?
Belt size is 1-3/16″ wide x 39″ long. We have a huge selection of other golf cart parts.
How do you determine your belt size?
Lay the belt on a clean, flat surface. Start the tape measure at the hole you use and measure to the end of the belt, where it meets the buckle. Belts are measured in inches and you should round to the nearest inch. If you measure 36 inches, you will want to purchase a size 36 belt.
How do you size a pulley belt?
How to calculate a belt length?First, determine the diameter of the larger pulley. Measure the diameter of the larger pulley.Next, determine the diameter of the smaller pulley. Measure the diameter of the smaller pully.Next, measure the distance between pulleys. ... Finally, calculate the belt length.

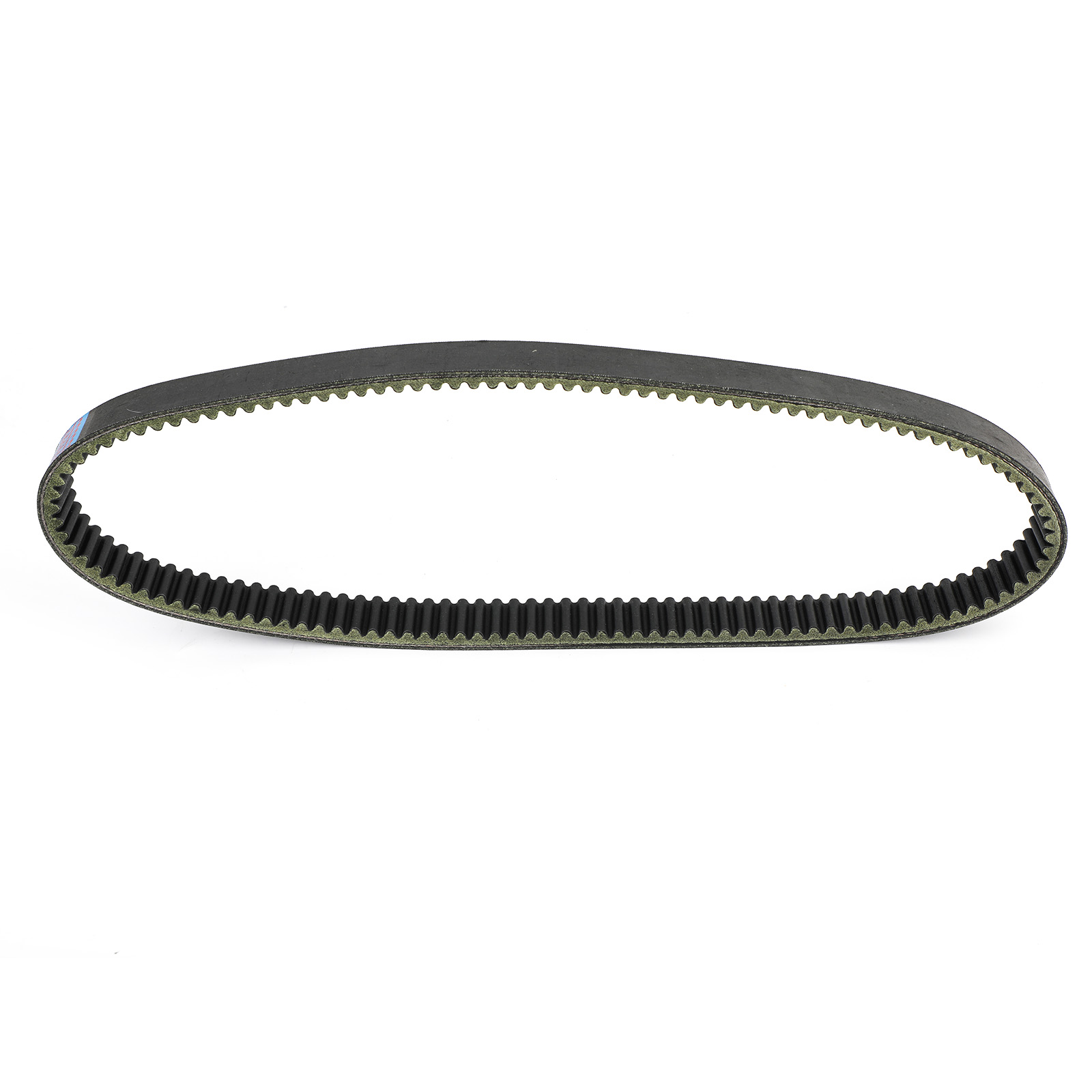

How do you size a CVT belt?
0:451:30PFS Scooter CVT Belts And How To Measure The Length Of A CVT BeltYouTubeStart of suggested clipEnd of suggested clipThe measurement between your first mark and your second mark in millimeters will be an accurateMoreThe measurement between your first mark and your second mark in millimeters will be an accurate length of your belt.
How do you measure a motor belt?
1:312:26How to Measure V-Belt Length and Width - YouTubeYouTubeStart of suggested clipEnd of suggested clipSo what you do is you wrap the string around your belt on the pulley. And that'll give you yourMoreSo what you do is you wrap the string around your belt on the pulley. And that'll give you your measurement.
How do I choose the right belt?
How to Choose the Right Size Belt. Your belt size should be 1-2 inches longer than the size of your pants waist. So if you take a 40 in pants, you want a 41-42 inch belt. Alternatively, you can work out the size of your new belt from your old belt.
How do you read a pulley size?
To collect inside diameter, simply use a ruler to measure the center hole of the pulley. Measuring the bore is unnecessary if you already know the shaft or bolt diameter. For example, if your pulley runs on a 2” shaft, the inside diameter is also likely 2”.
How do you choose a pulley belt?
2:363:55TIMING BELTS & PULLEYS PT. 1: BELT SELECTION | MECH MINUTESYouTubeStart of suggested clipEnd of suggested clipWhich can be an important factor to consider and flat belts are usually the most cost effective beltMoreWhich can be an important factor to consider and flat belts are usually the most cost effective belt option available. But both types being friction systems require the highest belt tension.
How do you measure a rubber belt?
3:075:40Accurate Belt Measuring - YouTubeYouTubeStart of suggested clipEnd of suggested clipAround the outside circumference of the bill to measure a belt on a conveyor again it's a goodMoreAround the outside circumference of the bill to measure a belt on a conveyor again it's a good practice to use a piece of tape so that you don't mark the belt itself place a piece of tape.
What do the numbers on a CVT belt mean?
CVT belts are measured in 3 dimensions. For example, here is what the numbers of a 669-80-30 belt actually mean: 669 = The Pitch Length of the belt in millimeters. 18 = The Width of the belt in millimeters. 30 = The Angle of the teeth on the interior of the belt.
How do you measure a variator belt?
Measure the upper width of the belt, e.g. 47 mm = profile width 47 mm. Measure the belt thickness, e.g. 13 mm = profile 47 × 13.
How do you measure a variable speed belt?
0:051:08Variable Speed Belts - YouTubeYouTubeStart of suggested clipEnd of suggested clipSome of the critical measurements we will need again as you just marked the belt. And unroll theMoreSome of the critical measurements we will need again as you just marked the belt. And unroll the belt one time on to a tape measure that'll. Give us the outside circumference.
Why do you measure the top of a go kart belt?
The reason why the width of a belt needs to be measured from the top is because from a cross sectional point of view, the top and the bottom are unevenly wide. This is due to the angles on the asymmetric and symmetric belts.
What is the top angle of a go kart belt?
Symmetric go-kart belts have a top angle of 15 degree on both sides. An asymmetric belt has an 18 degree angle on one side and a 2.5 degree angle on the other. The belt type depends on your torque converter model and design. For further reference, see the illustration below. 20 Series: Symmetric.
What is the outer circumference of a go kart belt?
The outer circumference (shortened to “Outer Cirum.” In the go-kart belt size chart) refers to the circumference of the torque converter belt . The circumference is measured from the outside of the belt, not the inside. As you can see in the belt size chart, Comet offers belts with an outer circumference size from as short as 22″ to as long as about 45″+.
What is a go kart belt?
Go-kart belts come in different types, symmetric and asymmetric. This refers to the cross section design of the torque converter belt. For example, if you look at the go-kart belt size chart above and see a belt that has a asymmetric design, it means that from a cross sectional view, the outer borders are angled differently.
How long is a comet belt?
As you can see in the belt size chart, Comet offers belts with an outer circumference size from as short as 22″ to as long as about 45″+.
What is the widest area on a go kart belt?
Therefore, all width references that are made to go-kart belts always refer to the widest area, which is the top of the belt.
What is the diameter of a pulley?
Comet go-kart belts support driving pulley diameters of 6”, 7”, 7.5” and 8.5”.
How to check if golf cart drive belt is too tight?
To check if the drive belt is too tight, follow these steps: Switch OFF the golf cart ’s engine. Reach to where the drive belt is located and use your fingers to press the drive belt between the two clutches. The belt must deflect at least one and a half inches under the pressure of your fingers.
What is the primary function of a golf cart drive belt?
To primary function of a golf cart drive belt is to connect the primary clutch and the secondary clutch. The primary clutch drives the cart and the belt helps it to rotate the secondary clutch (they are referred to as the drive clutch and the driven clutch respectively). The drive belt, unlike some of the other automotive belts, are very thick.
How to tell if a 1997 club car has a slipping drive belt?
When a 1997 Club Car drive belt is slipping, first make sure that it is the drive belt that is at fault. You may have to remove the cover and watch the clutches in action while the cart is in motion to make sure that it is indeed the drive belt that is slipping.
How to remove drive belt?
Removing the drive belt involves holding the belt with both hands in the center between the driven and drive clutches and lifting the belt. You must now rotate the driven clutch counter-clockwise and slip the belt off the sheave. You can then slide the drive belt off the drive clutch.
Why is my club car drive belt so tight?
The reason for a Club Car drive belt being too tight can be because the drive belt is too small for the golf cart. The way to check if the belt is fitted correctly is to push the belt down with one finger at the center between the clutches. It should not deflect more than 1.5inches. It should not be less as well.
Why does my golf cart drive belt slip?
The reason for the drive belt slipping could be that it is of a larger/longer size and therefore loose. You may start feeling the slippage after driving for a while. This is because the belt gets heated up after the golf cart runs for some time and loosens further .
What happens if a golf cart belt is too tight?
If the belt is too tight then your starter will be under strain and this should be avoided. The best test to see if a golf cart drive belt has the correct tension is to use the Finger Test.
Step 1 – Determine Belt Type
Step 2 – Measure Driven Pulley Diameter
- The next measurement you’ll need is the diameter of the driven pulley. A torque converter has two pulleys. The pulley that is attached to the crankshaft is called the driver pulley, as it drives the belt through the rotation of the crankshaft. The other pulley that is on the opposite end of the torque converter is called the driven pulley, as it’s driven by the belt. This pulley is connected to the jack…
Step 3 – Measure Center Distance
- The third measurement you’ll need in order to measure the go-kart belt size is the distance between the driver and the driven pulley. This distance is also known as the center distance. This distance is measured from the center of the crankshaft to the center of the jackshaft. Measuring the center distance is very easy, simply hold a measuring tape...
Step 4 – Check Measurement Against The Belt Size Chart
- Now that you’ve identified the belt type, driven pulley diameter, and center distance you can easily determine which belt size you need for your go-kart torque converter. Head over to the go-kart belt size chartthat I created. I suggest that you keep the belt chart open in a separate window and continue reading, as I will now teach you how to check for the right belt size. Let’s work with the …
