You can drain the gas tank of your golf cart using a simple siphoning action. This becomes essential if you plan to clean the tank. The siphoning can be done using a hose and air blow gun in an EZGO cart. Insert a hose down into the fuel tank as far as it will go.
- Turn the engine of the golf cart on and remove the gas cap.
- Keep a rag around the filler hole.
- Blow hard into the gas tank. You may have to do this a few times until the engine starts purring and the fuel filter has fuel in it.
What happens when a golf cart runs out of gas?
If your golf carts runs out of gas, the engine will stop running. This in turn stalls the cart and makes it difficult to control the braking and steering. The fuel line will be filled with air causing the fuel injectors to get clogged or the fuel pump to get damaged.
Can you put an electric fuel pump on a golf cart?
Yes, it’s possible to install an electric fuel pump on a golf cart. The fuel pump must be powered from that side of the solenoid, which features the starter motor. In other words, it must be connected from the large post of the solenoid that goes towards the starter.
How to clean the gas tank on a golf cart?
Put a lint-free towel over a coat hanger and use it to wipe the inside of the tank. Flush the tank a couple of times using a little fresh gas. It’s a good idea to also clean the carburetor and replace the fuel lines whenever you clean the gas tank of your golf cart. You can drain the gas tank of your golf cart using a simple siphoning action.
How does a golf cart pump work?
A golf cart pump has a simple design and is smaller than fuel pumps in other vehicles. It is a vacuum-powered pump that uses pressure from the crankcase. This pressure is called pulse and is generated at the bottom of a piston in the cart when the crankcase turns. The pump also has an inlet and an outlet.
How do you fill up a golf cart with gas?
6:4310:29Consumer Golf Cart Operation and Maintenance Basics - YouTubeYouTubeStart of suggested clipEnd of suggested clipAnd remove the bottom seat cushion remove the fuel cap and fill the fuel tank with fresh unleadedMoreAnd remove the bottom seat cushion remove the fuel cap and fill the fuel tank with fresh unleaded gasoline to allow for expansion. Do not fill higher than one inch from the top of a fuel tank.
How does a fuel pump work on a Club Car golf cart?

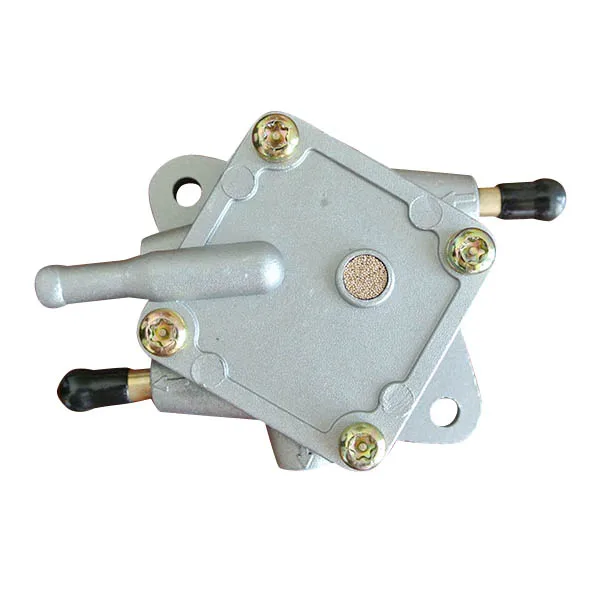

The fuel pump has several nozzles on it to accept the vacuum line, and both the Fuel In and Fuel Out lines. Inside the pump, there are several diaphragms which use the pulsing action created by the vacuum of the crankcase pressure to draw fuel from the storage tank and push it onward to the carburetor of the golf cart.
How do you siphon gas out of a golf cart?
0:371:33How to siphon old gas out of an ezgo marathon golf cart gas tank - YouTubeYouTubeStart of suggested clipEnd of suggested clipAnd cover this up with a rag. And i'm going to hold the rag. Down while it squeezes the trigger. YouMoreAnd cover this up with a rag. And i'm going to hold the rag. Down while it squeezes the trigger. You see the gas is lifting out into the siphoning into the bottle there you have it.
Do gas golf carts have fuel pumps?
While cars and gasoline-powered golf carts both have fuel pumps, the two operate very differently, so we've put together a short guide to help you know how to check your fuel pump — and what to do if you're worried it isn't working correctly.
How do I prime my club car fuel pump?
How to Prime a Golf Cart Fuel PumpTurn the engine of the golf cart on and remove the gas cap.Keep a rag around the filler hole.Blow hard into the gas tank. You may have to do this a few times until the engine starts purring and the fuel filter has fuel in it.
How does a pulse fuel pump work?
A pulse fuel pump uses the pressure differential produced by the engine to move a diaphragm inside the pump body. This pressure differential is generally transferred via a pulse tube to one side of a flexible diaphragm in the fuel pump.
How do I bypass an anti siphon device?
To bypass the rollover valve: Cut the end of the hose at an angle to create a narrow end. Stick the hose into the fuel tank. When you hit the rollover valve, use a twisting and pushing motion. This should get the hose past the valve and into the fuel tank.
How do you siphon gas without a pump?
0:040:55How to siphon gas easily without a pump. - YouTubeYouTubeStart of suggested clipEnd of suggested clipIt. Like so and then just blow right into it and as you can see gas is coming right out and this wayMoreIt. Like so and then just blow right into it and as you can see gas is coming right out and this way you don't actually have to put your mouth on the hose as you put gas through a bunch of times.
How do you get gas out of a gas tank?
3:465:58How To Drain Gas Out Of Gas Tank Using A Fuel Pump - YouTubeYouTubeStart of suggested clipEnd of suggested clipGuys pump it all out with an electric pump.MoreGuys pump it all out with an electric pump.
How much fuel pressure does a golf cart need?
To start, you want to make sure that you're working with a 2-4 psi fuel pump. This will be the right amount of pressure for your vehicle. When installing a fuel pump on a golf cart, you should power the pump from the starter motor side of the solenoid.
Do golf carts have carburetors?
Gasoline-powered golf carts have many parts that you won't find on an electric cart. For example, the average golf cart has a carburetor that helps to minimize pollution and keep your cart more efficient.
How does a diaphragm fuel pump work?
Diaphragm pumps use a composite membrane, which flexes up-down over a fuel bowl. The bowl has an input and an output, each with a check valve in place to ensure a one-way motion of fluid. As the diaphragm moves up, it creates a vacuum, pulling fuel from fuel tank into the fuel bowl.
Issue 1
Rubber fuel and vacuum lines naturally deteriorate with time. If you are having issues with a lack of fuel getting to the carburetor, be sure to check the lines closely. With rotted fuel lines, you will either smell a gas odor or possibly see signs of leaking gas.
Issue 2
Since golf cart fuel pumps are based on a vacuum created by crankcase pressure, if there is any type of leak in the crankcase or lower end of your engine, you may experience fuel issues. An effective output cannot be produced from an engine with a leaky crankcase. Check for any outward signs of an oil leak.
Issue 3
For the price of fuel these days, it should be the cleanest substance on earth. The truth is that it is not and often contains contaminants straight from the pump. This debris can get sucked out of the fuel tank and end up lodged in the pump.
Issue 4
Related to issue 3, the diaphragms inside the pump are very thin and fragile. They occasionally break or develop tears, which would cause the pump not to function. It would need to be removed as describe above, disassembled and the diaphragms replaced with a rebuild kit.
Why is my fuel pump not working?
Fuel issues aren't always caused by the fuel pump. Performance problems could also be caused by issues involving the crankcase or engine. A leaky crankcase or damaged engine cannot produce effective power. You'll want to take a look for signs of an oil leak, a bad crankshaft seal, or issues with the case gasket.
What is crankcase pressure?
While the more generally recognized term "compression" refers to the pressure limits at the top end of the engine, crankcase pressure actually refers to the pressure present at the bottom end, below the piston. While the pistons move up and down, the crankcase pressure will vary; we call this a "pulse.".
Is gasoline the cleanest fuel?
Gasoline isn't exactly the cleanest fuel source there is, and even high-quality fuel may contain dirt, debris, or other contaminants. Over time, this debris can build up and become lodged inside the fuel pump.
Do golf cart fuel lines deteriorate?
Rubber vacuum and fuel lines will eventually deteriorate. This issue is far more common in older and pre-owned golf carts and ATVs that haven't been given regular tune-ups. If you're having problems with the fuel not making it to the carburetor, check the lines very closely.
How to drain gas in a golf cart?
You can drain the gas tank of your golf cart using a simple siphoning action. This becomes essential if you plan to clean the tank. The siphoning can be done using a hose and air blow gun in an EZGO cart. Insert a hose down into the fuel tank as far as it will go.
How to get gas out of a gas tank?
Stick a five-foot-long 5/8-inch heater hose into the gas tank. Make sure it goes down as much as possible. Place a catch pan on the floor. Cover the opening of the gas tank using a rag. Insert an air blow gun into the tank through the rag. Push the air inwards until the gas begins to flow out of the hose.
How many gallons of gas in 1992 Club Car?
The 1992 Club Car gas tank has a capacity of seven gallons. However, you should get started with six gallons if your cart has a sled engine to avoid fuel leakage through the vented cap.
How to remove gas tank from 1987 G2?
The steps given below will guide you on how to remove the gas tank from the 1987 Yamaha G2 golf cart. Remove the engine and seat from the golf cart. Remove the three bolts holding the fuel tank in place. Unscrew the knob present at the bottom of the tank. This helps to detach the fuel line from the fuel tank.
How to collect drained gas from a gas tank?
Place a rag over the opening of the tank and a catch pan on the floor to collect the drained fuel. Blow air into the tank using the air blow gun until the gas flows downwards through the hose. Collect the drained fuel in the catch pan or any other vessel that has been approved for this purpose.
How to clean a gas grill?
Clean the outside of the gas tank with a degreaser that is used to clean grills. Siphon out the old gas fuel from the tank as mentioned above. Spray some of the siphoned fuel along with a little carb cleaner into the tank. Put a lint-free towel over a coat hanger and use it to wipe the inside of the tank.
How to get rid of water in gas tank?
Put some water and cleaning agents into the tank. Use the air flow gun once again to circulate the cleaning agents to all parts of the gas tank. You may need to run the air for about 20 minutes. Pump out the water to get the tank dry. Use simple green or shop vac to get rid of the water that doesn’t get pumped out.
Golf Cart
Support for gas-powered and electric golf carts, sometimes referred to as golf cars or club cars after the Club Car Golf Cart brand.
2 Answers
You need to look into what type of fuel transport you have: a) gravity b) electric pump of c) mechanically driven from engine camshaft etc.
