Take the positive and negative pins from the volt meter and insert in the cart side powerwise charge receptacle. You should have the exact same voltage you have at the positive and negative most terminals on the battery bank. Example – If the cart has 37.8 volts at the batteries, then you should have 37.7 – 37.8 volts at the charger receptacle.
Full Answer
Can you plug a golf cart charger into a wall socket?
So this means just because you plugged your golf cart charger into the wall socket in the garage and then into the golf cart does not mean you have a good connection to the batteries you are trying to charge. This is just an assumption. To confirm this read on…
Why are you replacing your golf cart battery charger?
Why are you replacing your other charger? Stolen, lost or just all of a sudden doesn’t charge? Or you just bought the golf cart and it did not come with one? Most importantly – Does the golf cart run and drive now or are batteries completely dead? If they are dead… that is usually the issue… because all new style chargers require being able to s...
How to test a golf cart Charger?
– To test – One pin will need to be positive in and the other be negative. Usually the top two pins. Then the third pin is usually a low voltage signal for a lock-out feature on these newer style golf carts. This is so the user cannot drive off with a golf cart “If the charger is still plugged in”.
Can you use a 48 volt charger on a golf cart?
With 48 volt chargers, the same applies (you can swap out plugs), EXCEPT when you are attempting to use a 48V Club Car or its charger with the round 3-pin plug. The 48V Club Car chargers are completely different than all other golf cart chargers.
Can a golf cart charger be fixed?
Golf cart chargers are relatively simple to repair, and for most common failures, they can be easily and inexpensively fixed. Other, more significant failures - like a faulty circuit board or burned up transformer - can get a little more complicated and more expensive.
What kind of plug do you need for a golf cart?
DOES A GOLF CART REQUIRE A SPECIAL OUTLET FOR CHARGING, AND CAN I LEAVE IT PLUGGED IN? Your Club Car will plug into a regular 3 Prong, 110 Volt outlet, and will cut off when it reaches full charge.
What causes a golf cart charger to stop working?
If your batteries aren't hooked up correctly, or the connections between them are weak or frayed, this can quickly lead to a loss of power and cause your charger to fail. Make sure you check each battery terminal for corrosion; any buildup will impede the flow of electricity, and could likewise cause problems.
How can I charge my golf cart without a charger?
1:566:30How to Charge your Golf Cart Batteries Manually if your charger ...YouTubeStart of suggested clipEnd of suggested clipTake your first positive. Right there and connect the 12 volt charger lead to the first positive.MoreTake your first positive. Right there and connect the 12 volt charger lead to the first positive. Now we're not going to charge one battery at a time.
Do all golf carts use the same charger?
No. You must match volts to volts. A 36V cart requires a 36 volt golf cart charger. A 48V cart requires a 48 volt golf cart charger.
Are all golf cart chargers the same?
Different brands a models of golf carts have different Plug "heads" on them. Because there are half-a-dozen plug types on the market for various cart models, you need to choose the golf cart charger with the plug that will fit on your golf cart's charging receptacle.
How do I reset my club battery charger?
Easily Reset the Club Car Golf Cart OBCKey switch to off.Set forward/reverse to neutral.Put tow/run switch to tow.Disconnect the negative battery terminal from the battery pack.Put the tow/run switch to run.Put forward/reverse switch to reverse.Put key switch to on.More items...
Can you leave golf cart charger plugged in all the time?
Manufacturers suggest leaving your golf cart plugged in all of the time while using an auto battery charger, as it will keep the batteries fully charged and always available. If batteries are not charged for prolonged storage, they may damage over time and deliver less capacity.
Why is my ezgo charger not working?
1:383:24EZGO Charger Troubleshooting | ASK DAVE | Golf Cart Garage - YouTubeYouTubeStart of suggested clipEnd of suggested clipReceptacle cart wiring or battery cables checking and securing these components and connections canMoreReceptacle cart wiring or battery cables checking and securing these components and connections can sometimes help if something has come loose or sustained damage. From age weather corrosion or pests.
How do you trick a golf cart charger to charge a dead battery?
1:233:46Reviving Dead 6v & 8v Golf Cart Batteries FAQ - YouTubeYouTubeStart of suggested clipEnd of suggested clipSo what I'm going to do is I'm going to hook my positive to the battery one positive. And since thisMoreSo what I'm going to do is I'm going to hook my positive to the battery one positive. And since this is this negative we make this battery six volt I jump to the corresponding.
Can you use a regular battery charger to charge a golf cart?
These batteries are designed to be discharged almost completely and repeatedly with low loss in performance. Golf carts usually come with their own charger, however a car charger can also be used to charge a golf cart. The trick is matching the voltage of the charger to the voltage of the batteries.
How do you charge a golf cart battery manually?
3:225:42How to Charge Dead Golf Cart Batteries Manually - YouTubeYouTubeStart of suggested clipEnd of suggested clipWe recommend starting by charging each battery for 5 to 10 minutes at a time and then moving on toMoreWe recommend starting by charging each battery for 5 to 10 minutes at a time and then moving on to the next. One.
What happens if my golf cart is not charging?
If you do not have any voltage in the batteries you will need to get some back into the battery bank before the golf cart charger will charge again .
What voltage do golf cart batteries work on?
All golf cart battery chargers usually operate on 110VAC but some have the ability to operate on multiple voltages for other power grids like in Europe vs US. 110/230VAC would reflect this feature on charger. Good DC side connection. This is the wire or cord with a connector that you would plug into the golf cart.

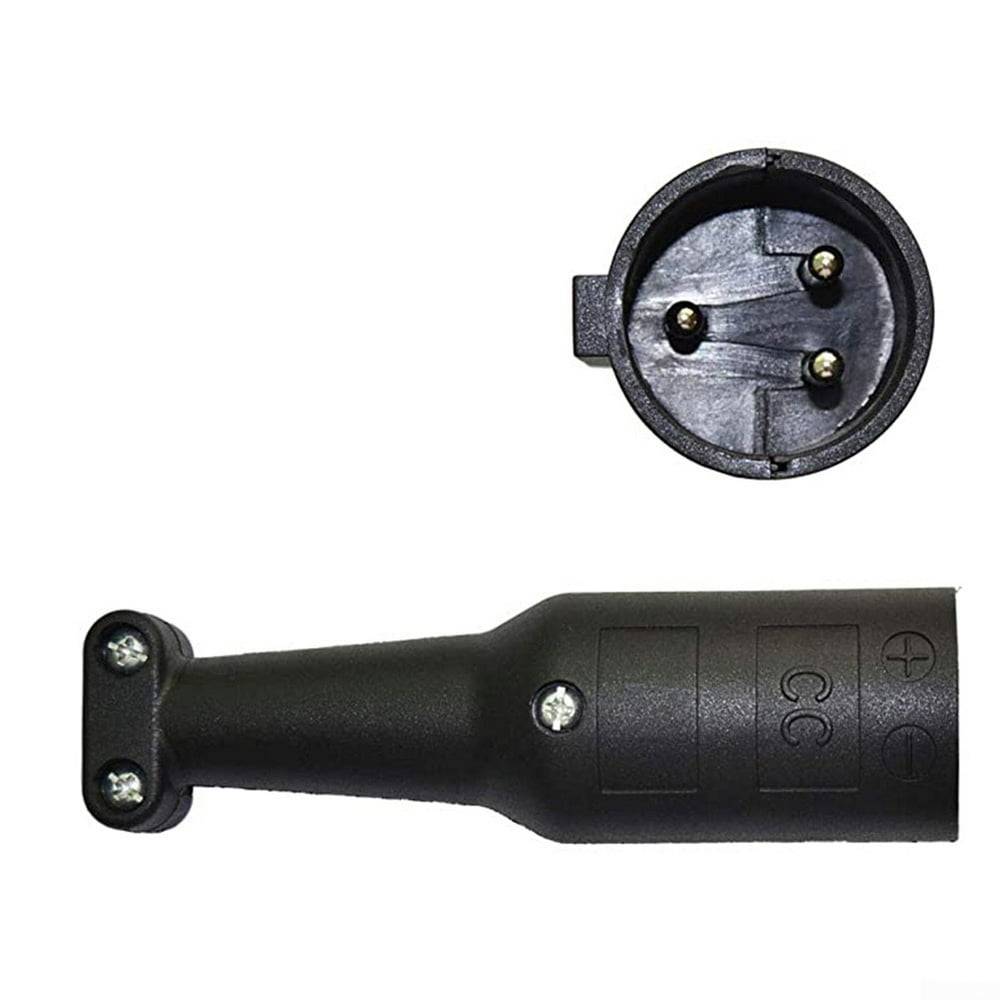

What is the third pin on a golf cart?
Then the third pin is usually a low voltage signal for a lock-out feature on these newer style golf carts. This is so the user cannot drive off with a golf cart “If the charger is still plugged in”.
Where to find battery in golf cart?
You will usually find the batteries to your golf cart under the front seat which opens or folds out towards the golf cart steering wheel on most Club Cars, Ezgo and Yamaha golf carts. Look for the two terminals with the most wires going to them. Usually this is the positive and negative most terminals in the battery bank.
Do golf cart batteries work the same?
Wiring batteries in a series style circuit is quite simple and always the same. No mater how many golf cart batteries you have it will always work the same.
How to disconnect a golf cart charger?
Disconnect your golf cart charger. Unplug the charger from the back of the golf cart and remove the charger’s power cord from the wall outlet. Always disconnect the charger before you inspect its connections to be safe. This also allows you to see areas that you can’t examine when the charger is plugged in.
Why is my golf cart battery charger not working?
Most golf cart chargers only work if the batteries they’re charging have at least 25-30 volts in them. Having batteries that are too dead is one of the most common reasons for a golf cart battery charger not working and can easily cause you to think your charger is at fault, which isn’t true!
How to clean corroded golf cart battery?
Disconnect the batteries from one another inside the golf cart. Mix equal parts water and baking soda and scrub the paste onto dirty and corroded terminals with a stiff-bristled brush.
How to check battery voltage?
Use a voltmeter or a multimeter to check your batteries’ voltage. Turn on the voltmeter or multimeter and set it to the voltage testing mode. Touch the red positive and black negative leads to the positive and negative terminals on each battery.
How to check if a charger is bent?
Inspect the two holes in the end of the charger handle closely to find the metal clips inside of them. If the clips are bent in, use a pair of needle-nose pliers to grab them and pull them back out, so they’re touching the post in the handle.
How to revive a golf cart battery?
Charge your cart’s batteries with a car battery charger if they are totally dead. Disconnect all your golf cart’s batteries from one another and remove them from your golf cart. Hook each battery up, one at a time, to a car battery charger and charge each battery for 20-30 minutes to revive them.
Can you leave golf cart batteries unused?
Avoid letting your golf cart sit unused for long periods of time, which can cause the batteries to die beyond the point that the charger will work to charge them.
What wires are needed to charge a golf cart?
Only the red and black wires are needed to completely charge the golf cart. The blue wire is an optional safety wire. If hooked up to the motor controller it will not allow you drive the golf cart while charging it. Think about being at the gas pump and driving off with the pump still in the car.
Why is my golf cart battery charger not working?
Bad connections will cause any battery charger to not function properly. After you've charged up your batteries and checked every connection and you are still having issues, it's probably safe to say you've got a golf cart battery charger problem and may need to service it or buy a new one.
What is an OBC on a club car?
When you plug the charger into your Club Car, the OBC will tell the battery charger when to start and stop charging based on the voltage levels in your batteries.
What voltage do you need for a 36V golf cart?
You must match volts to volts. A 36V cart requires a 36 volt golf cart charger. A 48V cart requires a 48 volt golf cart charger. You can burn up your batteries if you do not charge with the proper voltage.
Why is my golf cart charging red?
Occasionally a red fault light on a golf cart charger can mean that the batteries do not have enough voltage in them to allow the charger to kick on (see Charging Dead Golf Cart Batteries above).
How many volts does a golf cart battery need?
An automatic golf cart battery charger needs a minimal amount of voltage in the golf cart battery to even start working. They need somewhere in the range of 20-35 volts in the batteries to allow the chargers to know that they are connected up to batteries and to kick on.
Why is my charger making a clicking noise?
If the charger makes a loud clicking noise, this is likely a battery charger issue.
When it makes sense to replace a charger?
When it makes sense to replace. When it comes to spending time and money on something that you find yourself just standing there afterwards with your fingers crossed hoping it will work – it is best to just replace the charger. Now this comes with a few other caveats because when customers call over the phone and try to explain ...
Why are golf cart batteries corroded?
Usually with these older style transformer based golf cart battery chargers we find they are corroded due to extended periods of time left out in the elements. Some other issues occur when a lighting strike takes place and it can cause a Power Surge that will burn something up quite fast. Usually a fuse will pop first if you have a fusable link in the charger circuit but most chargers do not as is the case with your Ezgo powerwise charger.
What happens if your golf cart battery is dead?
The biggest one is a completely dead cart. If the batteries in your golf cart are so dead the cart will not run and drive as intended you will need to charge each battery individually with like an automotive charger with clamps to revive before your Ezgo Powerwise charger will kick on if it is operational.
What to do if you don't get the same voltage?
Now if you don’t get the same voltage you will need to back track the circuit from the charger receptacle to the batteries. Double check all the wires going back to the batteries… work your way backwards with the volt meter until you can narrow down the fault.
How much does a power surge save in South Florida?
The power surge will just pop the breaker on the power strip but save you about $500 – $1000 dollars depending on what kind of cart you own.
