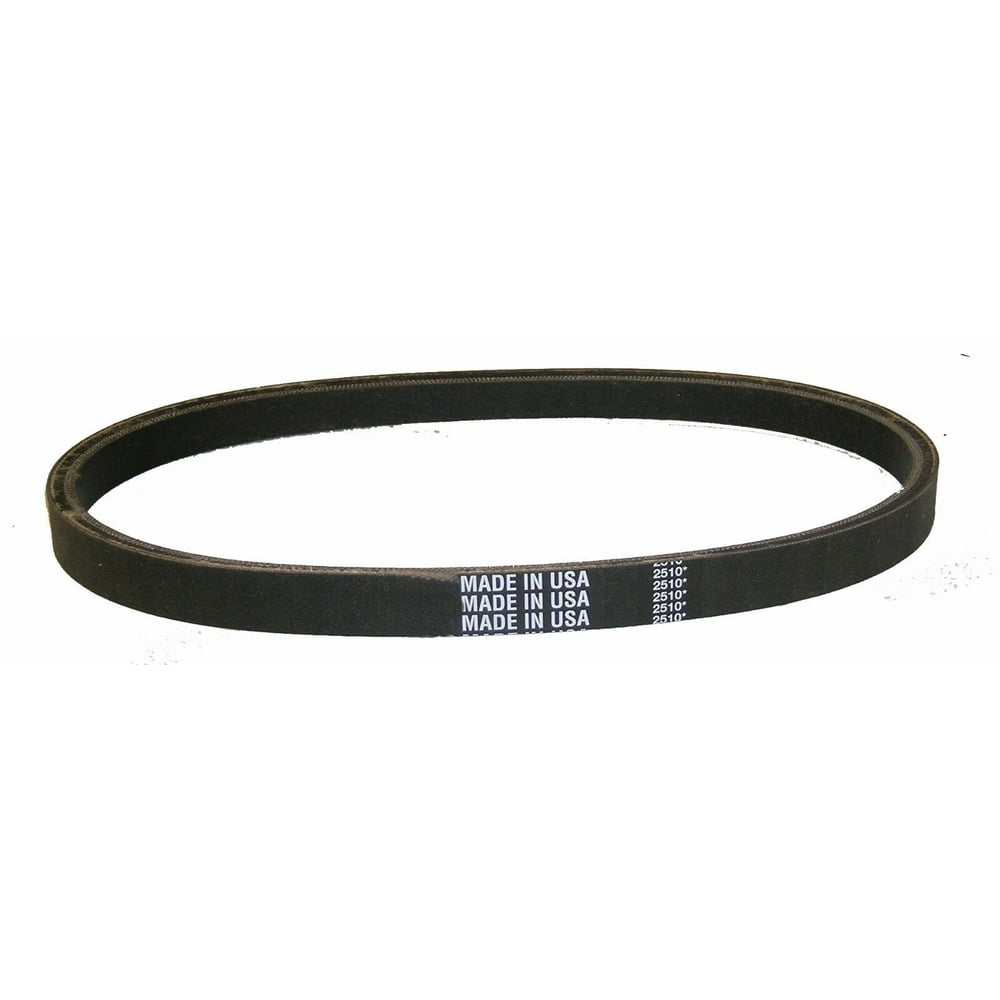

To change the drive belt on an EZGO golf cart you need to first find a replacement drive belt that’s suitable for the particular model of the EZGO golf cart you have. They’re widely available in many online shops or in spare part stores. There are 4 different types of drive belts.
How to adjust the drive belt on an EZGO golf cart?
How to Adjust the Drive Belt on an EZGO Golf Cart There is no way to adjust a drive belt, so it’s important to get the right size belt in the first place. To be sure, visit your local mechanic or call a certified technician to help you get the right drive belt for your EZGO golf cart.
Can a drive belt be too tight on a golf cart?
The drive belt should not be too tight. If it’s too tight it can risk wearing off faster and it’s also harder to shift gears. To check if your drive belt is set just right make sure your golf cart is turned off then check the drive belt by pressing it down between the two clutches with your finger.
Why is my EZGO golf cart losing top speed?
A loose drive belt can result in your EZGO Golf Cart to lose top speed and underperform. If the drive belt is the right model but it seems to be too loose then it could be because there is something stuck in the clutch or there is some damage in the clutch. In this case you’ll need to call a certified technician to inspect your golf cart.
How do you remove a loose drive belt from a car?
If the drive belt is loose you can remove it very easily by pulling it off the rear and starter clutch. If it’s too hard to do so, you can simply use a screwdriver and place it under the drive belt as a lever while rotating the clutch and it will follow the screwdriver and come off.
How do you tighten the drive belt on a EZGO golf cart?
There is no way to adjust a drive belt, so it's important to get the right size belt in the first place. To be sure, visit your local mechanic or call a certified technician to help you get the right drive belt for your EZGO golf cart.
How do I know if my golf cart belt is bad?
0:152:00How to Check the Belts in your Gas Golf Cart | Golf Cars UnlimitedYouTubeStart of suggested clipEnd of suggested clipDown below and you don't want to press the moderate pressure on that belt you're gonna want to seeMoreDown below and you don't want to press the moderate pressure on that belt you're gonna want to see about 3/16 to 1/4 inch of deflection. There no more than that that'll be your proper.
How tight should a golf cart drive belt be?
The reason for a Club Car drive belt being too tight can be because the drive belt is too small for the golf cart. The way to check if the belt is fitted correctly is to push the belt down with one finger at the center between the clutches. It should not deflect more than 1.5inches. It should not be less as well.
How do I take apart my EZGO golf cart?
1:355:35How to Install an E-Z-GO TXT Body and Cowl - YouTubeYouTubeStart of suggested clipEnd of suggested clipRemove the six rivets on top securing the body and C hinge plates to the frame. For electric modelsMoreRemove the six rivets on top securing the body and C hinge plates to the frame. For electric models you're going to remove the four rivet securing the receptacle to the body.
How do I know if my EZGO clutch is bad?
A sudden inability to maintain even slow speeds when heading uphill or changing elevation. Slowing down to a crawl, then speeding up, then slowing again, seemingly without reason. Jolting during startup. A 'cranking' sound when starting up the golf cart.
Where is the reset button on a EZGO golf cart motor?
Locate the motor Remove the panel so the electric motor is visible. Electric motors usually include reset buttons that can perform similar to circuit breakers. Look in the area where several electrical wires enter the motor and locate a small red button. This is the reset button.
How do I replace the belt on my electric golf cart?
1:195:57Changing the Drive Belt and Starter Generator Belt 2008 EZGO TXTYouTubeStart of suggested clipEnd of suggested clipDrive belt to remove it all you got to do is kind of work it over the edge and then roll. Back.MoreDrive belt to remove it all you got to do is kind of work it over the edge and then roll. Back. Until it pops off that rear driven clutch and then take it right out.
Can you adjust a golf cart clutch?
If you are unsure about removing the drive belt or the clutch, then you can adjust it. Just take out the belt and wound it again with the secondary clutch according to the requirements, and your problem should be fixed.
How do you measure a golf cart belt?
0:356:35Cushman Golf cart Pt.6 CVT belt - YouTubeYouTubeStart of suggested clipEnd of suggested clipThe it's right on the rear end uh you need the outside diameter of that then you need the center toMoreThe it's right on the rear end uh you need the outside diameter of that then you need the center to center measurement. Between the center of the driven pull or drive point and the driven pulley.
How do I remove the motor from my EZ Go golf cart?
0:375:58EZGO RXV Golf Cart Motor Removal & Installation How-To - YouTubeYouTubeStart of suggested clipEnd of suggested clipTo remove this motor with us the connectors here we get it disassemble this wire to the front hereMoreTo remove this motor with us the connectors here we get it disassemble this wire to the front here we got to take off and they will just unbolt it slide it off.
What is an ezgo txt?
The EZGO TXT Valor is the latest golf cart from Textron belonging to its 2020 edition. It is a gas-powered vehicle. It features a continuously variable transmission (CVT), and a rear axle ratio of 11.47:1. It has one 12V battery. The Valor's engine generates 13.5 horsepower.
How do you remove lug nuts from a golf cart?
How to remove lug nuts on golf cartOpen the lug nuts with the wrench and hammer while the wheel stays on the ground.After loosening the nuts, use your hand to open the nuts and replace them or tighten them for the performance.
Why is my Ezgo golf cart belt so loose?
The reason your EZGO drive belt is too loose could be because it’s worn out, or you’re simply using the wrong size drive belt. In this case, need to find a replacement immediately. A loose drive belt can result in your EZGO Golf Cart to lose top speed and underperform.
Why is my EZGO drive belt so tight?
The reason your EZGO drive belt is too tight can be because you’re not using the right size drive belt. Check and make sure if you’re using the right one. A quick search online will give you the right information. It can also be too tight because the drive/driven clutch is misplaced or broken.
How to tell if golf cart drive belt is too tight?
To check if your drive belt is set just right make sure your golf cart is turned off then check the drive belt by pressing it down between the two clutches with your finger. If it deflects less than 1.5” it’s too tight.
Why is my clutch too tight?
It can also be too tight because the drive/driven clutch is misplaced or broken. A drive belt that’s too tight can damage the drive and driven clutches and can also result in the drive belt being worn out too fast. To check, whether the drive/driven clutch is misplaced or broken call a certified technician to have a look.
Why is my drive belt so loose?
If the drive belt is the right model but it seems to be too loose then it could be because there is something stuck in the clutch or there is some damage in the clutch. In this case you’ll need to call a certified technician to inspect your golf cart.
How to stop a EZYGO drive belt from slipping?
How to stop a EZYGO drive belt slipping: Make sure that you have the right drive belt. Sometimes the wrong drive belt will not be as wide as the clutch you are putting it on. This gives it an unwanted room to move back and forth when you are using the golf cart.
Where is the primary drive clutch located?
After doing so, you can follow these steps: Locate the primary drive clutch. It’s located at the bottom of the two clutches and is the smaller one. Take note of how the existing belt has been adjusted to the clutches and then remove it.
