The first step would be to get the right switch for replacement. The necessary ignition switch and the wires will be available online according to the model number of your cart. Next, remove the existing switch. Disconnect the battery and remove the switch console. The switch would likely be still connected to the terminals.
Full Answer
How to replace the ignition switch on club car golf cart?
Remove the face nuts with a pair of pliers. Now, the ignition switch can be removed easily. Install the new switch on to the plate and screw the face. Reverse the steps given above for locking the ignition switch back in place. Turn on the switch and verify that it is working. How to Replace the Ignition Switch on Club Car Golf Cart
How do you fix a windshield wiper that won’t turn?
Put Loctite (thread-locking compound) on the screw, on the hex nut, and then put the cotter spring pin in the adjustment screw. Also, check if the wiper arm brush and fixed contacts are damaged or worn out, and if so, replace the housing of the v-glide.
Why is my club car golf cart V-glide switch melting?
It is quite common in the club cars that the v-glide switch starts getting too hot and, in extreme cases, can start melting. This can be if the v-glide is damaged. The v-glide switch in a Club Car golf cart can get hot or melt because too much amperage is pulling from the batteries.
What is the blue and white wire on a golf cart?
The top right corner will have a white wire while the blue wire will have to be connected to the bottom right corner. In some cases, you may have a yellow wire instead of a blue wire which also needs to be connected to the bottom right corner. Some models of golf carts have a key switch rather than the regular button switch.
Where is the MCOR located on a golf cart?
2:5613:00How to install an MCOR (Motor Controller Output Regulator) on a ...YouTubeStart of suggested clipEnd of suggested clipThis is where just MCOR is located once you get that there's a trapdoor right here that's usuallyMoreThis is where just MCOR is located once you get that there's a trapdoor right here that's usually held down by a little plastic Christmas tree you open that up.
What is MCOR on electric golf cart?

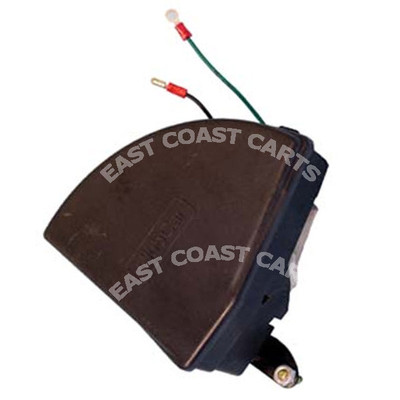

Club Cars use an MCOR throttle device. This translates your foot movement at the pedal into electric impulse that the motor controller reads. MCOR stands for "Motor Controller Output Regulator".
Where is the micro switch on Club Car golf cart?
Open the Area Near the Switch – Your micro switch is going to be somewhere beneath the chassis or body of your vehicle. For example, the pedal switch is located underneath of the dash near your pedal and you must open up these areas to expose them and find the switch.
What is a microswitch in a golf cart?
Microswitches are used in many golf cart applications. They are used at the accelerator pedal to provide a signal to the solenoid that you have depressed the pedal and are ready to go. In an electric golf cart, the solenoid sends power to the controller to move the cart.
How do you test for MCOR?
To test the MCOR, look for the line item that says THROTLE. With the cart in neutral, slowly depress the gas pedal. You should verify that the throttle moves from 0% to 100% in a smooth manner.
Does ezgo have MCOR?
E-Z-GO - MCOR Part # 5857 - EZ GO Golf Cart Parts.
How do you test a micro switch on a golf cart?
Using a jumper wire, jump the power from the 48V positive terminal to the small positive terminal on the solenoid. Turn the key of the cart to the ON position and press the accelerator. Check if the wheels are turning normally. If the wheels aren't turning, recheck the jumper connections and try steps 3 and 4 again.
How do you change a micro switch on a club car golf cart?
2:4412:055_12_15, Changing 1993 Club Car, Micro Switches, Golf Cart rideYouTubeStart of suggested clipEnd of suggested clipSo how does one change these real difficult quarter-inch right you undo these two bolts on top youMoreSo how does one change these real difficult quarter-inch right you undo these two bolts on top you see them zoom you just undo those two nuts these are actually posts that are part of the Box on the
How does a micro switch work?
Micro Switches have an actuator which, when depressed, lifts a lever to move the contacts into the required position. Micro switches often make a “clicking” sound when pressed this informs the user of the actuation. Micro switches often contain fixing holes so that they can be easily mounted and secured into place.
How do you bypass a reed switch?
0:221:131995 36V EZGO Golf Cart Reed switch bypass - YouTubeYouTubeStart of suggested clipEnd of suggested clipSo some form said that the reed valve can be bypassed and that seems to be a pretty common issue.MoreSo some form said that the reed valve can be bypassed and that seems to be a pretty common issue. And here's the charger here and the front I've already taken off the panel and loosened it.
Why does my electric golf cart hesitate?
In most cases, the hesitation problem occurs due to bad batteries. If you have bought new batteries for your EZGO RXV, make sure to fully charge them before the first use. Batteries should then be charged after every use. To keep the batteries in check, get a Digital MultiMeter to measure the individual voltage.
What is a limit switch on golf cart?
Product Description. The E-Z-GO Limit Switch is used on 21-current E-Z-GO Gas Vehicles as a mechanical device that enables the operation of the forward and reverse directions of the vehicle.
How to check if key switch is working?
If you wish to check if the key switch is functioning properly, follow these steps. There are two probe wires present in the battery pack – a black and a red. Connect the black probe wire to the 36v negative terminal of the battery pack. The red probe wire should be connected to the back of the battery pack.
What is the difference between blue and red wires on a cart?
The basic rule is that the blue wire generally is connected to the solenoid while the other red wire will be connected to a fuse. From the fuse, the wire will be further extended to another terminal of the solenoid.
Do all golf cart keys have the same key?
Yes, all club car golf cart keys are the same. The downside of owning a golf cart is that the key switch can be easily accessed using any key from the same manufacturer. If you have a single key from a particular manufacturer, you can easily use it to open all the carts made by them.
Is the Ezygo golf cart the same as the golf cart?
Yes, all EZYGO golf cart keys are the same. A key from one golf cart can be used on another EZYGO golf cart. All golf cart keys are dependent on the manufacturer. Each manufacturer will have the same key molds for the keys. Yes, the keys are universal and limited to the manufacturing company.
Can you park a golf cart on a golf course?
Some people park their carts on the golf course but do not prefer other people using it. To avoid this problem, you can change the key switch or use a combination of other techniques. This way the cart cannot be used by others without your permission.
Can you replace an ignition switch on an Ezygo?
If you have identified an issue with the ignition switch on your EZYGO, you may need to replace it with a new one. It is really an easy task to replace the switch with a brand-new one. The first step would be to get the right switch for replacement.
Can you replace a switch with a new one?
It is not too difficult to replace the existing switch with a new one. It can be easily installed without much hassle. This way the access to your cart can be restricted. In general, most people don’t bother about the key as it is not used for any other purpose other than unlocking the cart.
What is a club car switch?
The club cars have micro switches. Theses switches are installed to keep the carts safe while starting and powering up. The microswitch of the v-glide is connected to the solenoid and triggers the same.
Why does my switch get hot?
Some of the reasons why this can occur are: high amperage of the cart, low voltage, system getting overloaded, and improper connections, to name a few . First, check the circuit and see if the connections are well done.
How to tell if V glide fits?
One of the most important signs that will tell if the v-glide fits properly or has a problem is if the contacts and switch arm of the wiper are parallel to each other.
How to check if a V glide needs to be replaced?
Check If the V-Glide Needs To Be Replaced. First, check the copper pad on top of the v-glide. If the plastic has melted and/or if the copper pad is oxidized, it can cause trouble with the v-glide. Now check the wiper arm of the v-glide. It should come in contact with the top pad.
What is a club car V glide?
The wiring diagram of the club car v-glide is one of the most crucial components if a person is trying to check or make a club car. In the club car wiring diagram , you can notice various components that are connected through wires. Different wiring and components are marked separately for better understanding.
Why do club cars have a solid state cart?
When the gas pedal is pushed, the power flows, and resistance controls the speed. But the problem with this is that the speed is less and the power gets eaten up, even if the throttle is wide open. Therefore, to make the club cars more efficient, they can be upgraded into a solid-state cart.
Why does my V-glide switch melt?
It is quite common in the club cars that the v-glide switch starts getting too hot and, in extreme cases, can start melting. This can be if the v-glide is damaged.
Golf Cart Speed Switches
Every electric golf cart must use speed switches to accelerate smoothly from a dead stop up to full speed. Modern golf cars employ a potentiometer, or pot box. It works in the fashion of a light switch that dims or brightens the lights in your home or business.
Early Speed Switches
The most common of these early speed switches employ a series of stationary copper contacts fixed to a heat resistant base board. They had a movable wiper contact that sweeps over the stationary contacts.
Resistor Coils
At low speed the whole series of resistor coils burn off battery voltage as heat allowing just a portion of available battery voltage to actually get to the motor. As the accelerator pedal is depressed further a portion of the resistor coil array is dropped out of the power circuit thereby allowing more voltage to get to the motor.
Loose Resistors
If a resistor coil connection becomes loose it can cause the acceleration to be very jerky and sudden. This condition will create excessive arcing and burning at the wiper/stationary contact interface. This arcing can be heard as a sizzling noise coming off of the speed switches and seen as sparks popping off the board.
