Club Car Golf Cart On Board Computer Reset To reset the Club Car OBC the following must be done in this order: 1 - Key Switch to Off 2 - Forward/Reverse to Neutral
- Key switch to off.
- Set forward/reverse to neutral.
- Put tow/run switch to tow.
- Disconnect the negative battery terminal from the battery pack.
- Put the tow/run switch to run.
- Put forward/reverse switch to reverse.
- Put key switch to on.
How to reset the club car golf cart OBC?
Easily Reset the Club Car Golf Cart OBC 1 Reconnecting the OBC into the system: 2 Key switch to off 3 Set forward/reverse switch to neutral 4 Put tow/run switch to tow 5 Reconnect the negative battery terminal from the battery pack
How do you reset the reverse buzzer on a golf cart?
The reverse buzzer will sound and go off in about half a minute. Leave the cart like that for 5 min to cause the OBC to reset. Reconnect the Battery (–) wire to the battery minus terminal on the battery pack.
What happens if I Disconnect the controller from the golf cart?
If you disconnect the controller from the golf cart will cause a soft reset of the of the OBC when the battery power is removed. Once the battery powered is removed, the OBC internals will clear any faults. Once the controller is reinstalled, everything should work fine.
How to use tow run switch on a golf cart?
Then you put your cart to neutral and then put tow run switch to the low position. After this, you should disconnect the negative of the battery terminal from the battery set. Now you put tow run switch to run and set from a neutral position to reverse. Finally, you put key to switch it on.
Is there a reset button on a Club Car golf cart?
Electric golf cart motors have a reset button on their chassis which is designed to put your motor back into its original factory state. While it doesn't repair damage that may have occurred to the motor over the years, obviously, it does help to overturn any changes to the operation which may have occurred.
How do I reset my Club Car DS controller?
How to reset your Club Car's OBC after a faultKey Switch to Off.Forward/Reverse to Neutral.Tow/Run Switch to Tow.Disconnect the Battery NEGATIVE (–) wire from the Battery Minus terminal on the battery pack.Put the Tow/Run to Run.Forward/Reverse Switch to Reverse.Key Switch to On.Lock the throttle pedal down.
How do I test my club car computer?
How to Test Club Car Precedent Controller?Connect a voltmeter to the negative terminal on the battery.Connect the voltmeter to the M terminal on the controller.Push down on the golf cart pedal.A clicking sound should be heard.The batteries show a full charge.

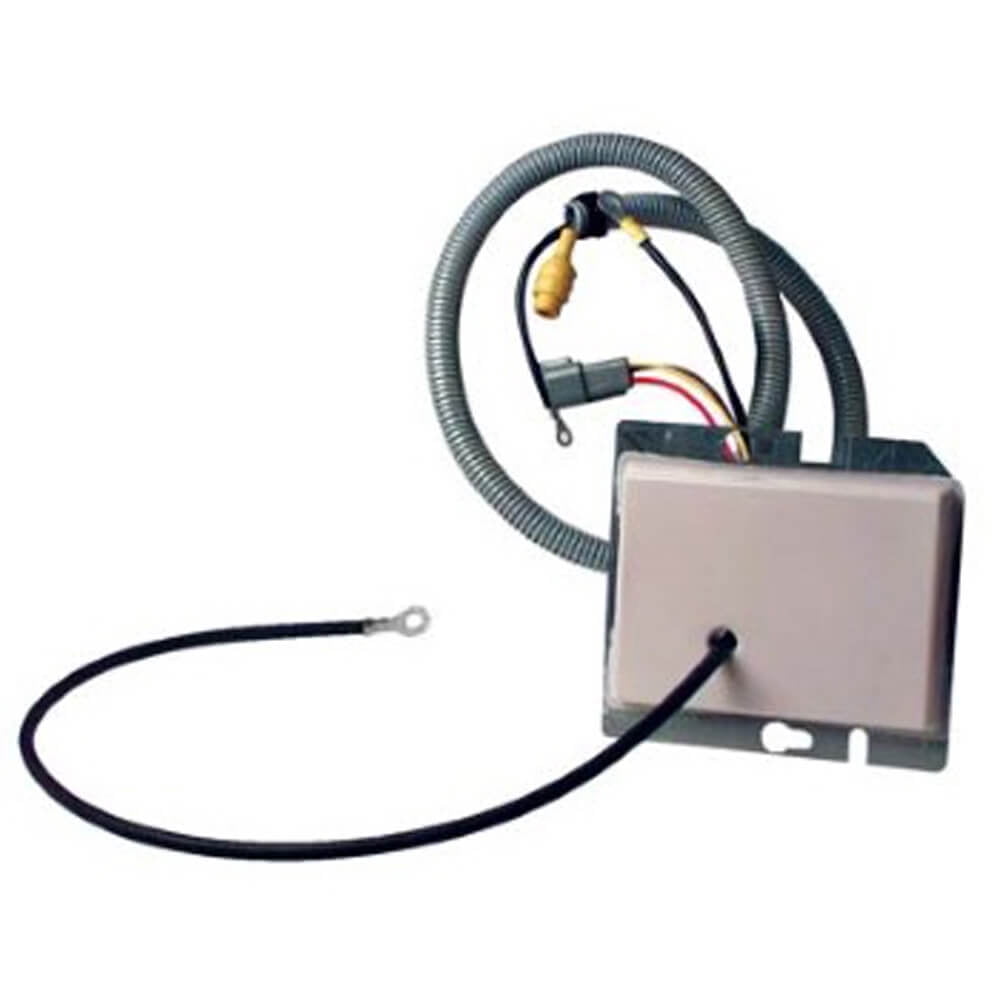

What does a club car onboard computer do?
Club Car uses an On Board Computer (or OBC) to monitor and control various functions of their carts. It functions as a Go/No Go control for the charging and drive systems. If the OBC detects a problem in either the charging or drive system, it will shut that feature off.
How do I reset my Club Car computer?
Easily Reset the Club Car Golf Cart OBCKey switch to off.Set forward/reverse to neutral.Put tow/run switch to tow.Disconnect the negative battery terminal from the battery pack.Put the tow/run switch to run.Put forward/reverse switch to reverse.Put key switch to on.More items...
How do I know if my Club Car controller is bad?
X Common Symptoms of Controller FailureTop Speeds Not Appropriate for Your Cart. Golf carts are designed to reach pretty specific speeds and to not go over them or beneath them. ... Sudden and Unexpected Slowing. ... Shuttering or Shaky Driving. ... Stalling Out and Refusing to Start. ... Surges in Speed When Driving.
Where is the reset button on an electric golf cart motor?
Locate the motor Remove the panel so the electric motor is visible. Electric motors usually include reset buttons that can perform similar to circuit breakers. Look in the area where several electrical wires enter the motor and locate a small red button. This is the reset button.
How do you bypass a computer on a club car?
2:544:33How to Bypass On Board Computer | Club Car Precedent Golf Cart | OBCYouTubeStart of suggested clipEnd of suggested clipWe can cut it. Real close to the OBC. And then put a ring terminal. As. I think that's a 5/16 holeMoreWe can cut it. Real close to the OBC. And then put a ring terminal. As. I think that's a 5/16 hole in it so it goes right over this tournament either way we've got to get this wire.
How do you troubleshoot an electric club car?
There are a few simple problems that you can fix yourself that will not necessitate professional maintenance.Test the wall socket where you charge your cart. ... Expose your golf cart batteries. ... Test the batteries for voltage. ... Replace dead batteries. ... Expose the motor for inspection. ... Reset the motor. ... Test the cart.
What does battery light on club car mean?
This light notifies you when your golf cart battery or batteries are low on charge. It saves you the hassle of worrying whether you would be stranded because of a drained battery.
Where is the speed sensor located on a Club Car golf cart?
The speed sensor in a Club Car Precedent golf cart is located on the back of the motor. To remove the sensor, unplug the cables behind the motor. You can use a 5/16-inch socket to remove the pigtail connector and pop off the plastic housing that encases the speed sensor.
Why does my electric golf cart not move?
When the cart won't move, you have to be sure that the batteries are sending sufficient power to the circuit. You must check the fuse. Use the voltmeter to check the voltage at the key switch. In a cart with batteries rated at 48V, it must show 48V at the key switch.
Where is the reset button on my electric golf cart?
Locate the motor Remove the panel so the electric motor is visible. Electric motors usually include reset buttons that can perform similar to circuit breakers. Look in the area where several electrical wires enter the motor and locate a small red button. This is the reset button.
How do you test a golf cart controller?
0:042:12How to bench check curtis controller and golf cart motor - YouTubeYouTubeStart of suggested clipEnd of suggested clipCar actually any golf cart. That's got one of these curtis controllers in it you just simply want toMoreCar actually any golf cart. That's got one of these curtis controllers in it you just simply want to take that controller. Off of there and then you're going to see where you're going to take your hot
How do you troubleshoot an electric club car?
There are a few simple problems that you can fix yourself that will not necessitate professional maintenance.Test the wall socket where you charge your cart. ... Expose your golf cart batteries. ... Test the batteries for voltage. ... Replace dead batteries. ... Expose the motor for inspection. ... Reset the motor. ... Test the cart.
How do you bypass OBC on Club Car DS?
To bypass the OBC you will need to connect a 12 gauge black wire from the negative terminal of this battery to where the black wire attaches to the back of the receptacle. That's it folks; you're done!
What is an OBC golf cart?
Some Club Car golf carts use an On Board Computer (or OBC) to monitor and control various capabilities of their carts. It acts as a Go/No Go control for the charging and cart drive systems. When the OBC finds a problem in either the charging or drive system, it will turn off that feature.
How to reset OBC?
The reset sequence is not hard to do, but can take quit a few steps. Disconnect the Battery Negative (–) wire from the Battery Minus terminal on the battery pack. Lock the throttle pedal down.
How long does it take for the OBC to reset?
Lock the throttle pedal down. The reverse buzzer will sound and go off in about half a minute. Leave the cart like that for 5 min to cause the OBC to reset.
What happens if you disconnect the controller from a golf cart?
If you disconnect the controller from the golf cart will cause a soft reset of the of the OBC when the battery power is removed. Once the battery powered is removed, the OBC internals will clear any faults. Once the controller is reinstalled, everything should work fine.
What is an OBC in golf carts?
Club Car uses the On Board Computer or OBC to monitor and control functions of their golf carts. If it functions properly it controls the charging and the drive system. If the OBC detects a problem with the charging system or the drive systems it shut down.
How long does it take for the OBC to reset?
Lock the throttle pedal down with a second set of hands or object. The reverse buzzer will sound and go off in approximately 30 seconds. Leave the cart like that for 5 min to cause the OBC to reset.
Is tidewater cart responsible for golf cart problems?
Tidewater Carts is not responsible for any malfuntions or problems that you incur directly or indirectly from folowing these procedures. Keep in mind that testing and troubleshooting should be done by trained and paid golf cart tech's.
How to check if golf cart battery is working?
Connect a voltmeter to the negative terminal on the battery. Connect the voltmeter to the M terminal on the controller. Push down on the golf cart pedal. A clicking sound should be heard. The batteries show a full charge. You must determine whether your golf cart batteries are working properly or not.
What Does a Club Car Golf Cart Controller Do?
It is the controller that controls the acceleration and deceleration of a golf cart.
How to Reset Club Car Precedent OBC?
For club car precedent, it is the same as above and with only some difference. You, first of all, make the key switch to off position. Then you do neutral to Forward/Reverse. After this, make Tow to Tow/Run switch and disconnect the negative terminal wire from the battery minus terminal of the battery set.
How to Test 48 Volt Club Car Controller?
Testing your 48 volt club car controller is easy. First of all you need to charge your batteries to the full.
Why is my cart not starting?
If your cart doesn’t start even when your batteries are full, and no clicking sound comes from the solenoid, it means your solenoid is defective or accelerator. If you hear a distinct clicking sound, this means that there is nothing wrong with solenoid as it allows power to flow to the controller.
How long does it take for an OBC to reset?
When you do this you will hear the reverse buzzer. Now leave the cart like that for about 5 minutes such that the OBC resets. Then after 5 minutes you release the throttle pedal. Now for reconnecting OBC back into your club car system you must switch off key.
How to reset club car OBC?
The best way to reset your club car OBC is first to switch off the key switch. Then you put your cart to neutral and then put tow run switch to the low position. After this, you should disconnect the negative of the battery terminal from the battery set.
