How to test a golf cart speed sensor?
In such a situation, the car is said to be in limp-mode. You can do a roll-away test to check your golf cart speed sensor. There are many ways you can test the speed sensor on a golf cart. Two methods of testing your speed sensor are the following: Activate the Run/Tow switch of the golf cart by keeping it in Run position and try to push the cart.
Why is the speedometer on my VW Golf not working?
If your Volkswagen Golf’s speedometer is not working, it’s usually going to be caused by an issue with the VSS (vehicle speed sensor), or a bad ECU. The VSS is usually not very expensive, and they are not that difficult to replace.
How to troubleshoot my EZGO PDS golf cart speed sensor?
Some tips for troubleshooting the speed sensor of your EZGO PDS golf cart are given below. The sensor may have got damaged because the connecting cable got pulled hard for some reason. In this case, you may need to fix a new sensor assembly. The magnetic disk on the motor shaft may have come loose.
Where is the speed sensor on a club car precedent?
The speed sensor in a Club Car Precedent golf cart is located on the back of the motor. To remove the sensor, unplug the cables behind the motor. You can use a 5/16-inch socket to remove the pigtail connector and pop off the plastic housing that encases the speed sensor. Symptoms of a Bad Speed Sensor
How do you test a faulty speed sensor?
Disconnect the sensor from the housing on the transmission, as indicated in the repair manual for your car. Disconnect the sensor's wire coupling. Using the multimeter's voltmeter connect the probes to the ground and reference wires in the connector. If no voltage is received, the sensor is faulty.
How do you test a automatic speed sensor?
4:005:49How To Test and Replace A Rear Vehicle Speed Sensor P1706YouTubeStart of suggested clipEnd of suggested clipConnector. So the red lead is hooked up. And then the black is ground ground is any good metal pointMoreConnector. So the red lead is hooked up. And then the black is ground ground is any good metal point so right here is perfect take a look at the multimeter.
How do you read a speed sensor with a multimeter?

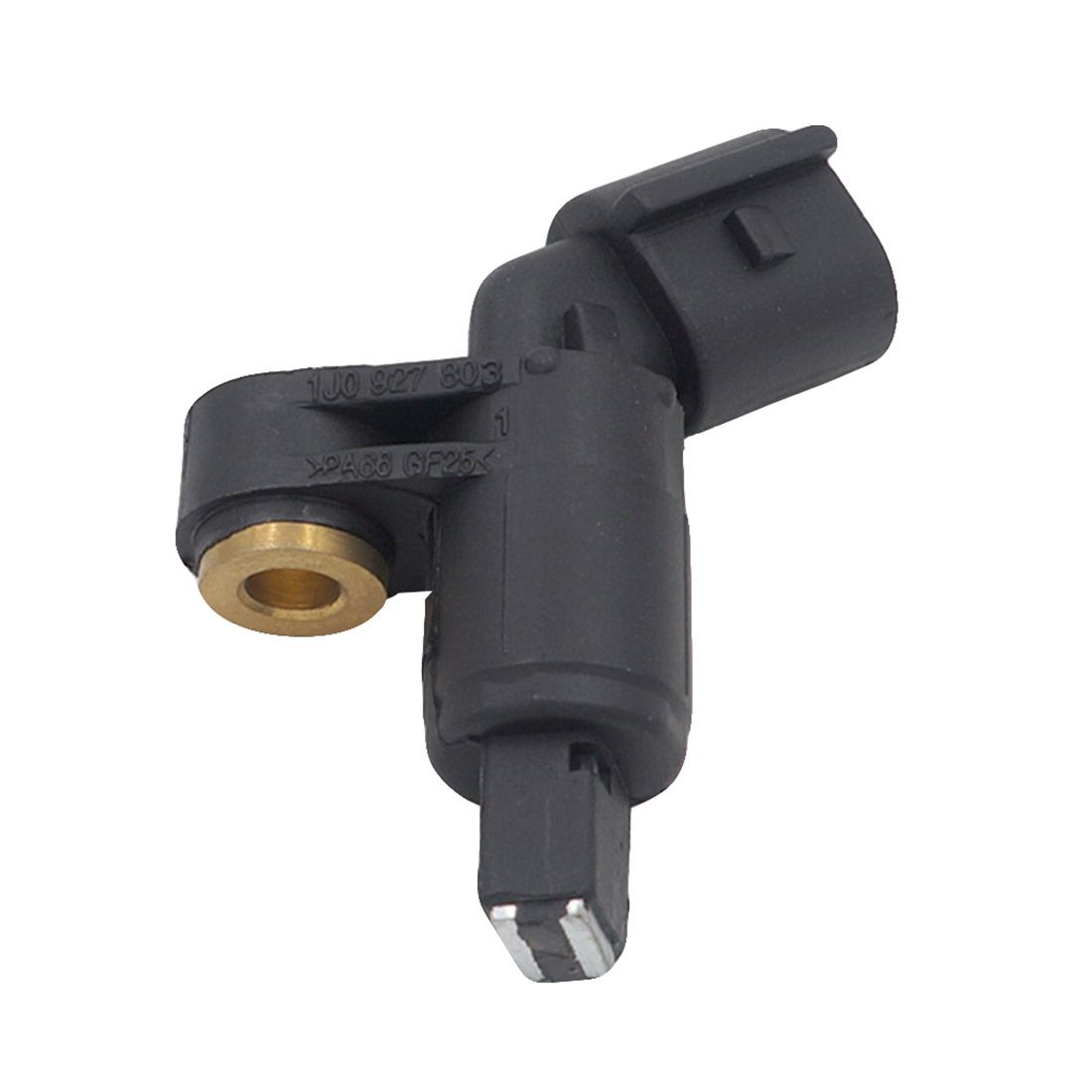

1:189:39How to Test ABS Wheel Speed Sensors for Resistance and AYouTubeStart of suggested clipEnd of suggested clipAnd they all go to the brake controller at the front of the car. This is the one for the rearMoreAnd they all go to the brake controller at the front of the car. This is the one for the rear driver's side here we can just kind of hook it off and we can probe this end with a multimeter.
How do you test a magnetic speed sensor with a multimeter?
1:463:44Troubleshooting Your Magnetic Speed Sensor for PowerHalt Shut ...YouTubeStart of suggested clipEnd of suggested clipCheck part number on the label to determine which model you have to test the functionality of eitherMoreCheck part number on the label to determine which model you have to test the functionality of either Hall effect speed sensor. You will need a multimeter a piece of steel or iron. And at 12 volts DC
How many ohms should a speed sensor read?
between 1,000 and 2,500 ohmsThe typical reading for a passive wheel speed sensor is between 1,000 and 2,500 ohms. This is a normal range for all passive sensors. The specification for active sensors is between 1,000 and 2,500 ohms.
Will a speed sensor throw a code?
Since the transmission speed sensors monitor the input and output shaft speed, it also plays a part in monitoring the cruise control. When the sensors fail to deliver accurate data to the onboard computer on your car, truck, or SUV, the powertrain control module (PCM) will send an error code to the vehicle's ECU.
How do you test a 3 wire magnetic speed sensor?
0:181:33How To Test A 3 Wire Speed Sender - YouTubeYouTubeStart of suggested clipEnd of suggested clipIt's going to be set to DC voltage on this is an automatic ranging meter but if you have to selectMoreIt's going to be set to DC voltage on this is an automatic ranging meter but if you have to select on yours you're going to pick the square wave voltage or the DC.
How do you test a front wheel speed sensor?
9:5413:46How to easily check ABS/ Wheel Speed Sensors - YouTubeYouTubeStart of suggested clipEnd of suggested clipSet on resistance. And here I'll keep you guys focus on the ohmmeter while I took the pins togetherMoreSet on resistance. And here I'll keep you guys focus on the ohmmeter while I took the pins together okay okay there we go touching them together right there.
Can you clean a speed sensor?
With the sensor free, take your rag and wipe the sensor until it's clean. I prefer not to use any chemicals on the sensor to avoid potential problems. If, however, the sensor is really grungy, use a mild soapy solution and rinse well. The ABS sensors are precision instruments in a crude environment.
How do you test a 2 wire RPM sensor?
0:261:41How To Test A 2 Wire Speed Sender - YouTubeYouTubeStart of suggested clipEnd of suggested clipThe red lead from our multimeter connect that to the signal output there and the black lead will beMoreThe red lead from our multimeter connect that to the signal output there and the black lead will be connected to the ground wire now our meter is going to be configured for AC.
What is the difference between vehicle speed sensor and transmission speed sensor?
The vehicle speed sensor (VSS) is also commonly referred to as a transmission speed sensor or output shaft speed sensor. It is a small device—typically mounted somewhere on the transmission—that determines how fast your vehicle is going by measuring the rotation of a toothed wheel on a shaft inside the transmission.
How to test a speed sensor on a golf cart?
Two methods of testing your speed sensor are the following: Activate the Run/Tow switch of the golf cart by keeping it in Run position and try to push the cart.
Why does my golf cart stutter?
Your golf cart may move very slowly as if it’s creeping along or it may move at an erratic speed. You may experience stuttering in your golf cart like when you have a bad battery or there is a low voltage problem. A broken or damaged magnet on the motor can result in a bad speed sensor.
What happens if a cart sensor is bad?
If the sensor is bad, your cart will start rolling. Remember that if the switch is in Tow position, the cart will definitely roll. Ensure that the 3-pin plug from the sensor is connected and place a wire-piercing probe on the output green wire.
Why does my golf cart roll off?
Roll-away protection is essential for the safety of the golf cart. If the parking brake is not activated, the golf cart tends to roll off when it is in a neutral position and stopped in an incline. Please note that rolling will occur in neutral only at a predetermined speed.
What are the settings on the M3?
The variable settings on the M3 allow a player to adjust the loft, lie, and face angles of the club, as well as create a variable fade or draw bias. Which can correct many swing or hit issues...
Can a golf cart go fast?
Your golf cart may go fast initially and slow down drastically on its own after some time. This will happen repeatedly in a cyclic pattern. In such a situation, the car is said to be in limp-mode. You can do a roll-away test to check your golf cart speed sensor.
Can you fix a golf cart on your own?
Under NO circumstances should you attempt to fix your golf cart on your own. Doing so is dangerous and could result in serious bodily harm. The information on this website has not been verified for accuracy and should only be used for general information purposes only. Use this information at your own risk. The author (s) and owner of of golfstorageguide.com are NOT trained electricians, mechanics or technicians. The webmaster of golfstorageguide.com and the author (s) is not responsible for any loss in damages, financial loss, personal injury, or death. By using the content on this website, you agree to the terms outlined in this disclaimer.
Where is the speed sensor located on a car?
Put the front of car up on jackstands or ramps. Remove belly pan. The speed sensor is located directly above where the drive shafts enter the trans. On the photo below, the speed sensor is located where the red plug is: Unplug the wire from the speed sensor.
How to put a sensor on a pinion?
Place the sensor on the pinion. The square tang on the sensor has to fit into the square hole in the pinion. You'll have to line up the tang with the hole and rotate the sensor until it drops in. Spin it on hand tight, then lightly tighten with the wrench. Same thing, it's plastic so don't over do it.
Why does my needle sensor get sticky?
The sensor will then give a fluctuating signal even though you're traveling at a steady speed. The cluster heavily damps the needle movement so you don't see the needle jumping up and down.
Why is my fuel gauge needle swinging?
You will notice that the fuel gauge needle will be swinging all over the place as you drive. Apparently, the fuel gauge needle is heavily damped only when the car is moving. With a dead speed sensor, the fuel needle is completely undamped and moves up and down as fuel sloshes around the tank.
Can a speed sensor rotate?
The speed sensor can rotate back and forth, you won't break it if you need to rotate it to get the best angle to get the connector off. The speed sensor looks like this. You can see the square tang that engages the drive pinion. The speed sensor has a 22mm hex on it.
What does a speed sensor do?
The speed sensor does more than just control the speedometer, it also helps to control the cruise control system and may even affect the way that the engine runs. If the service engine soon light is on, then check the trouble code with an OBDII scanner.
What is a speedometer on a golf?
A modern vehicle’s speedometer takes the input from the Vehicle Speed Sensor and sends that data to the ECU. The ECU is programmed with your Golf’s gear ratios and stock tire height. It combines this data to send the speed reading to the instrument cluster. The causes of a bad speedometer will typically be found in these four things:
What is the connection between the drivetrain and the speedometer?
Vehicles used to use a cable that would usually run from the tail shaft of the transmission to the speedometer. There was a physical/mechanical connection between the drivetrain and the speedometer. Instead of this direct connection, a modern vehicle uses the vehicle speed sensor and relays that information to the speedometer.
What does it mean when a speedometer goes out?
Most of the time if the speedometer is out, it means that there is a bigger problem with the entire instrument cluster.
