To do that, the DIY golfer will have to:
- Remove the existing grip.
- With steel shafts, use a tubing cutter to trim the shaft; with graphite shafts, shorten using a hacksaw.
- Re-install a grip on the newly shortened shaft.
- And, most importantly, Wishon says, add weight to the clubhead in some manner to restore the swingweight feel of the club. ...
How do you tip a golf shaft?
- 1” less tip trimming = @ 5 cpm (cycles per minute) lower
- 1” additional tip trimming = @ 5 cpm higher
- 10-15 cpm is generally considered by many of as 1 full flex
How do you shorten a golf club shaft?
To do that, the DIY golfer will have to:
- Remove the existing grip.
- With steel shafts, use a tubing cutter to trim the shaft; with graphite shafts, shorten using a hacksaw.
- Re-install a grip on the newly shortened shaft.
- And, most importantly, Wishon says, add weight to the clubhead in some manner to restore the swingweight feel of the club. ...
What are the best golf shafts?
best golf shafts for irons
- UST Recoil ZT9 Iron Shaft Set. UST Mamiya Recoil ZT9 Iron Shafts are known for the best and unparalleled stability in the industry.
- Aerotech Steel Fiber FC 90. The new SteelFiber FC shafts are designed with a progressive tip that gives higher ball flight in the mid- and long irons also classic ...
- Mitsubishi-Rayon Kuro Kage Black 70 Iron R Shaft. ...
How to install a shim in a golf shaft?
- Make sure you purchase the correct size! Click here for a shaft size guide
- Driver/wood ferrules are shorter than iron ferrules
- Putters do not need ferrules
Which end do you cut to shorten a golf shaft?
Discrete length shafts, where the iron shafts come shorter in lengths as you go higher up in club number, are in most cases also tapered tip (0.355"). These shafts are pre-trimmed at the tip but NOT at the butt end. The expectation is that your club-builder will trim the butt to achieve the desired final club length.
What does trimming the tip of a golf shaft do?
Shaft tipping is when a club builder removes length from the tip section of a shaft, which is the end where the clubhead is installed. In most cases, tip trimming a shaft makes it meaningfully stiffer. It also increases torsional stiffness, known as “torque,” which is a shaft's resistance to twisting.
How can I shorten my shaft?
How to Shorten Golf Club ShaftsRemove the grip using a utility knife with a hook blade. ... Measure the amount of shaft you want to remove (add an additional 1/8 inch to make up for the end of the grip), and mark the spot with permanent marker. ... Align your cut mark with the blade of the saw and secure the club in the vise.More items...
Does shortening a golf shaft make it stiffer?
A shorter shaft is typically stiffer than a longer one. Although a shorter golf club shaft tends to be firmer than a longer one, it is important to understand the changes trimming a shaft will make to a club before making such a permanent change.
What happens when you shorten a driver shaft?
Shortening the shaft will make the club shorter but it will also make the shaft stiffer and adjust the swing weight as well. Plus, the more length you remove, the less flex your club will have. Depending on how much you cut it down, it could move a regular flex to a stiff or a stiff to an extra stiff.
How does cutting a shaft affect swing weight?
For every half inch of length added, the swingweight increases by three swingweight points. For every half inch of length removed, the swingweight decreases by three swingweight points.
What happens if driver shaft is too long?
“If a driver shaft is too long for the player, they can struggle to find the middle consistently. Off-centre hits not only drastically reduce ball speed and distance, but have a big impact on accuracy.”
Can you cut your own golf clubs?
If you have purchased a set of used golf clubs that are too long, you can quickly cut them down to size with a hand-held rotary tool. You can also resize your old clubs and pass them on to your children. The shaft of a golf club is narrower at the head end to generate power on the swing.
How much does it cost to shorten a driver shaft?
Generally, this fee will be about $15 to $35 depending on where and when you get the work done. Replacing a shaft on a driver is a bit more work than regripping a club.
How long should my driver shaft be for my height?
Driver Shaft Length Based Solely on HeightHeight (feet/inches)Driver Shaft Length5'4″-5'7″45.5″5'2″-5'4″45″5'0″-5'2″44.5″4'10”-5'0″44″6 more rows•May 9, 2021
How long should golf clubs be for my height?
Using the ratio of every 6" of height there should be a 1" change in length then there should be a 1 ½" difference between their 5-irons. For example, recommend 36.5" for the lady and 38" for the man (or 36.75" / 38.25").
Is it bad to shorten golf clubs?
For most golfers, having clubs that are too short will be better than if they're too long, but can still result in inconsistent shots. Clubs that are too short will make you stand bent over, which can cause back pain. You'll also have the tendency to push the ball a lot.
Series Navigation
I know this might seem obvious, but be sure to measure and mark off the point at which you are cutting. Especially while tipping a shaft (you can’t undo this), it is important to have precise measurements. Use a sharpie to make your marks on the shaft. Here is a tutorial on how to measure golf clubs.
Series Navigation
Hey!! I'm Zach, the founder of The DIY Golfer. I created this site in 2015 while playing D1 collegiate golf to help myself understand the game of golf better and improve as a player. Fast forward a few years, and it has become much more than a journal.
What does cutting the shaft shorter do to a golf club?
The swing weight, or weight at the head of the club and any additional weighting inside the shaft, is still in place, and cutting the shaft shorter changes the balance of the club as well.
How much should a golf shaft be tipped?
Many pros have their shafts tipped as much as one or two inches. The idea behind tipping is to make the clubhead end of the shaft stiffer and even lower torque than it was designed to be to minimize twisting of the club at impact.
Why do tour pros have their shafts tipped?
Tour pros often have their shafts "tipped," or cut back from the clubhead end slightly to make the tip of the shaft stiffer. This enables them to keep the same length club but have a slightly stiffer shaft near the ball. Cutting a club from the butt end will have somewhat the opposite effect, making the shaft stiffer overall but shorter as well.
How does changing the length of a golf club affect the swing?
Changing swing characteristics: Changing the length of a golf club can moderately or severely change the swing characteristics of the club. Removing length from the butt end of the shaft also removes weight from that end and changes the swing weight and balance of the club. Cutting a shaft from one end or the other also changes the kickpoint ...
How to adjust length of golf club?
Step 1. From the butt: The easiest and quickest way to adjust the length of a club is to remove the grip and cut a given amount of the shaft off the butt end. Traditionally, this is how many youngsters get their first sets of golf clubs. Their parents cut the clubs down so they are easier for them to handle. Keep in mind, though, that cutting the ...
Is a shorter shaft stiffer than a longer shaft?
A shorter shaft is typically stiffer than a longer one. Although a shorter golf club shaft tends to be firmer than a longer one, it is important to understand the changes trimming a shaft will make to a club before making such a permanent change.
Can you cut a shaft from the butt end?
Cutting a shaft from one end or the other also changes the kickpoint of the shaft–lowering it if you cut from the butt end or raising it if you cut from the tip. Even a small adjustment to a putter can cause a significant change in feel. Keep these changes in mind when planning any changes to your club.
Why trim a shaft?
Why trim or cut a shaft at all? When the manufacturers make a shaft, they do so in mind that is could be used for a wide number of golfers and applications, so the manufacturer makes the shaft longer than it will most likely be used in the final golf club. The number one reason for making the shaft longer is to accommodate taller players so they ...
Why do you need to trim a parallel shaft?
This is required to offset the increasing heads weights as the clubs become shorter and maintain the flex the manufacturer designed into the shaft for a finished club.
What is a combination flex shaft?
These "combination flex" shafts are designed to reduce inventory by being able to create multiple flexes from a single shaft rather than produce two different shafts. Here are the most common ones below.

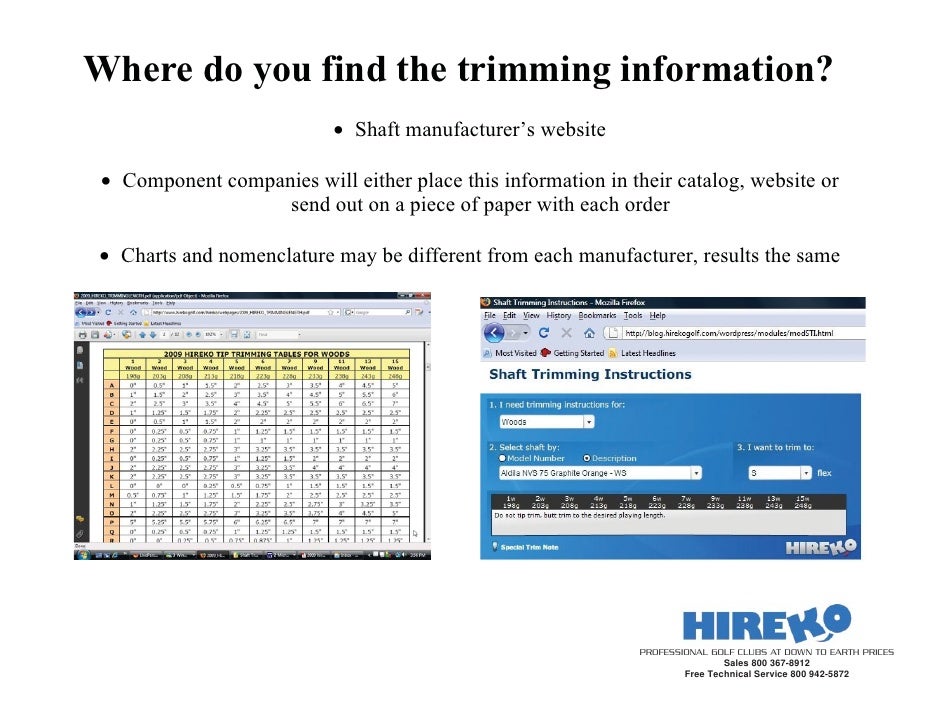

What does a trimming chart show?
It is also important to understand the trimming charts show how much (if any) to take off the tip end (the skinny part or where the head will be attached). The trimming charts will not tell you an amount to take off the butt end (the fat part where the grip is installed).
Remove the Grip
The first things to do is to remove the grip tape from the golf club [how to remove grip tape from golf club]. This will make it easier to cut the shaft. You can use a cutter to slice the grip from the top and slowly peel it off the club. The specific process can differ, which will depend on the material of the grip.
Measure the Shaft
With the grip now off the golf club, the next step is to take the appropriate measurement. Use a measuring tape and run it from the top to the bottom of the shaft. Mark the specific spot where the measurement ends. You can do this with a marker or by wrapping the tape around the tip. The measurements should be as precise as possible.
Cut the Shaft
Now comes the most important part of the task. Before cutting the shaft, make sure that it is in a stable position. Some might think that they can cut by holding the shaft with one hand, but this isn’t the case. For your safety and to make the cut more accurate, we recommend placing the golf club in a vise.
Wrap a Grip Tape
Once you are done cutting, the next step is to wrap it using your grip of choice. Pick a material you are comfortable with. This is important since it is the part that you will be holding, and hence, it will affect how you swing the club. Also, it must absorb vibration, making sure of your highest level of comfort, even during aggressive shots.
