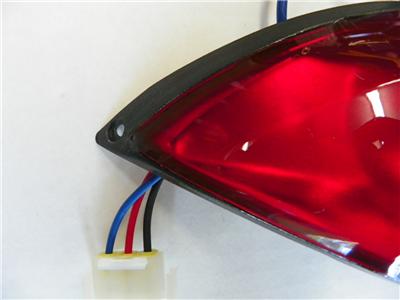

how to wire tail lights on golf cart

by Quinn Block Published 3 years ago Updated 2 years ago

How to Wire Lights to a Golf Cart: Step-by-Step Instructions

  • Step 1. Mount the Lights Disconnect the chassis black wire from the negative battery terminal on your golf cart. Then,...
  • Step 2. Mount the Toggle Switch Mount the toggle switch for the lights on the driver's side of the dash. Drill a 1/2...
  • Step 3. Connect the Electrical Connect one of the leads of the inline...

Full Answer

How to wire golf cart lights?

How to Wire Golf Cart Lights Step 1. Disconnect the negative battery terminal. Step 2. Mount the headlights as high on the cart as possible for best visibility. Mounting brackets that simply clamp... Step 3. Determine the best place to mount the toggle switch that will control your lights. The left ...

How do I Mount headlights on a golf cart?

Mount the headlights as high on the cart as possible for best visibility. Mounting brackets that simply clamp around a round structure, such as a bumper or roll bar, make this task simple.

How do you wire a toggle switch to test lights?

Tape over all connections with electrical tape and secure all wiring with nylon wire ties. Mount the toggle switch in the hole you drilled earlier. Reconnect the negative battery terminal. Turn the toggle switch to the "on" position to test your lights.

How do you wire a toggle switch headlight switch?

Extend the lead to the center terminal of the toggle switch. Use an insulated female spade terminal to connect the lead to the switch. Get a 16-gauge wire. Run it from the toggle switch at the second terminal all the way to the headlights. Use a solderless butt connector to connect the wire to the headlights. Secure the wires with nylon wire ties.


How many batteries does a golf cart have?

Go to the battery and disconnect the negative terminal. A golf cart can have up to six batteries, so disconnect the negative terminal from each of the batteries. The batteries can be found under the front seat.

Can you replace lights on a golf cart?

Replacing lights in a golf cart can be easy with the right tools. It's easy to replace or add lights to a golf cart. This technique can be used for any golf cart, whether it is powered by gas or electricity. Before beginning, gather all of your tools and materials in one spot that you can easily reach.
