If you want to know how to check O2 sensors with a Multimeter using a signal wires test then what you need to do is as follows: Check the engine to make sure it has cooled down. Switch the digital Multimeter to the voltmeter setting. Then you need to back probe the oxygen sensor’s signal voltage and ground wire.
Full Answer
What does the O2 sensor do on a Volkswagen Golf?

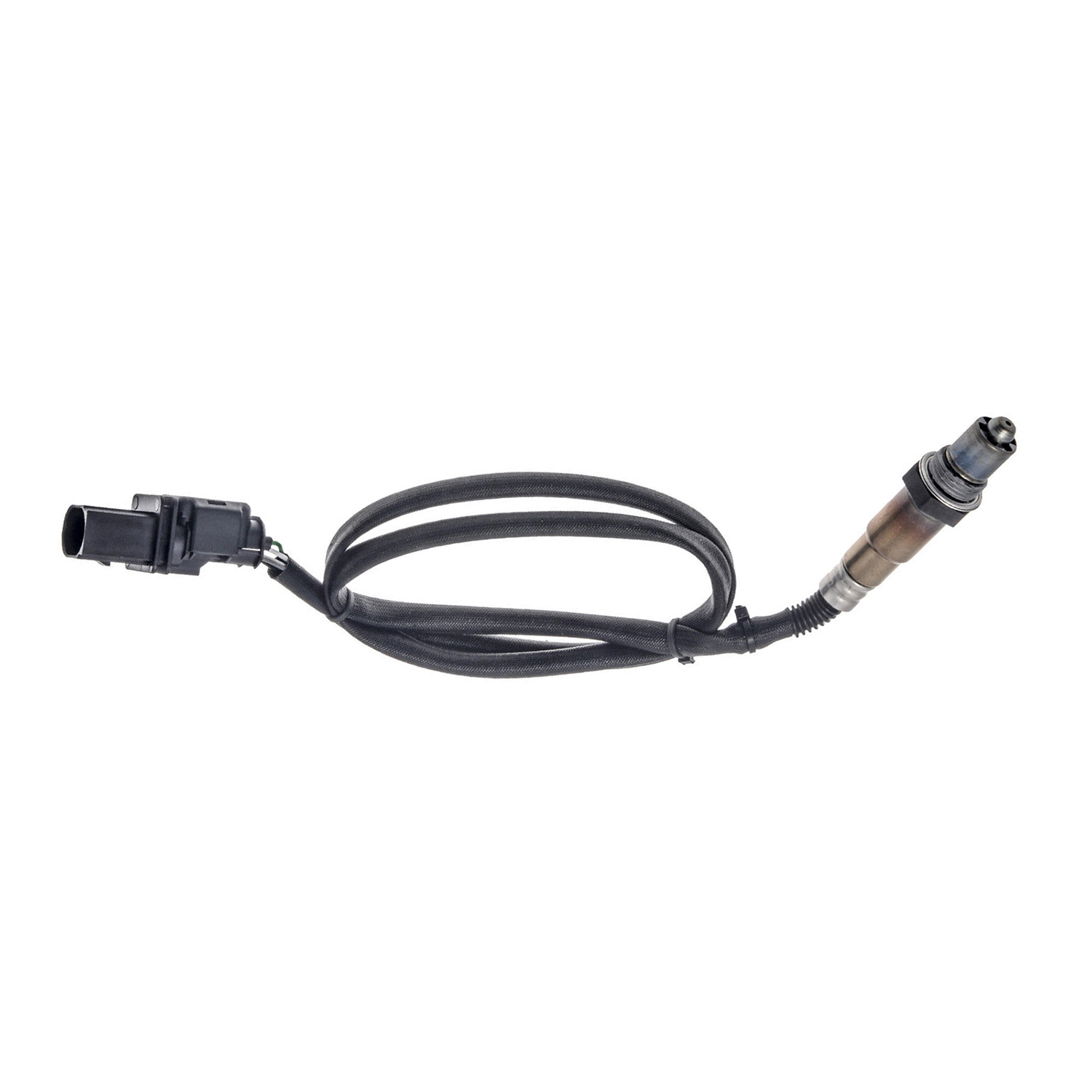

Your Golf’s oxygen sensors are responsible for helping to keep your engine running at optimal efficiency. The engine management computer uses the data from all of the O2 sensors to keep the air/fuel mixture optimized. A bad oxygen sensor can affect the mixture greatly.
How to test the O2 sensor on a car?
If the O2 sensor is in good condition then the sensor will react to the oxygen content and change volts quickly. The steps for using a scan tool are as follows: – You need to connect your scan tool and then start the engine.
What are the signs of a bad oxygen sensor on a golf?
Often enough, there won’t be any noticeable signs of a bad oxygen sensor. You’ll go to get an emissions check done, and your Golf fails the test. Without a check engine light, it can be tough to lock down exactly what would cause the vehicle to fail, but oxygen sensors are one of the more common causes.
What should the voltage be at the tip of an O2 sensor?
As long as you keep the propane flame at the tip of the sensor it’ll create voltage, and the instant you move the flame, the voltage will drop. Again, it should be nearly 1 volt with the flame at the sensor tip and near zero volts when the flame is moved away from the tip. A bad O2 sensor will almost always trigger your check engine light.

How do you test a diesel oxygen sensor?
2:407:04How to Test an Oxygen or O2 Sensor - Plus a Quick Guide on What Each ...YouTubeStart of suggested clipEnd of suggested clipYou want to first measure. The resistance. That's for the internal heater. And the sensor. And thenMoreYou want to first measure. The resistance. That's for the internal heater. And the sensor. And then compare that to to your spec make sure that's within spec.
How do you test if an 02 sensor is bad?
Here are some of the most common signs that your oxygen sensor is bad.A Glowing Check Engine Light. The bright orange Check Engine light in your dashboard will usually glow if you have a bad oxygen sensor. ... Bad Gas Mileage. ... An Engine That Sounds Rough. ... An Emissions Test Failure. ... An Older Vehicle.
Is there a way to test 02 sensors?
2:598:47Don't Buy Oxygen Sensors! How to test o2 sensor - YouTubeYouTubeStart of suggested clipEnd of suggested clipSo we're going to test these real quick. So first thing we're going to do is we're just going toMoreSo we're going to test these real quick. So first thing we're going to do is we're just going to check for voltage. Make sure that this oxygen sensor is getting voltage down to it. There we go okay my
Can I bench test an O2 sensor?
3:235:34O2 Bench test - YouTubeYouTubeStart of suggested clipEnd of suggested clipNow you can see this is actually just a simple of a bench test to tell you whether or not thatMoreNow you can see this is actually just a simple of a bench test to tell you whether or not that oxygen sensor is actually working now propane does get hot enough that it could actually damage.
How do I test a sensor with a multimeter?
0:302:36How to test a Car Sensor - YouTubeYouTubeStart of suggested clipEnd of suggested clipSet it to the M setting. Take our two leads. And we're gonna touch. Each side. And I'm getting allMoreSet it to the M setting. Take our two leads. And we're gonna touch. Each side. And I'm getting all over the place. Five eight nine between five and nine mmm.
How many ohms should a O2 sensor have?
The resistance can range from 10-25 ohms, but check the specs. If it is open or has low resistance, it is probably the sensor.
How do I test an O2 sensor with OBD2?
How to Test O2 Sensor Using an OBD2 Scan ToolInsert the OBD2 scan tool connector to the diagnostic link connector (DLC) on your vehicle. ... Turn on your vehicle's engine so that the scanner can communicate with the vehicle's onboard system. ... After the scanner boots, go to the menu and select 'Trouble Codes' or 'Codes'.More items...•
What voltage should an O2 sensor read?
0.1V to 0.9VThe voltage generated from the O2 sensor should be from 0.1V to 0.9V, with 0.9V on the rich side and 0.1V on the lean side. If your readings are within this range, the O2 sensor is functioning properly.
How do you test an O2 sensor with 4 wires?
0:313:43Oxygen sensor heater circuit testing universally should work 4 wire and ...YouTubeStart of suggested clipEnd of suggested clipSide your four wires it doesn't matter which oxygen sensor all that matters is the heater circuit isMoreSide your four wires it doesn't matter which oxygen sensor all that matters is the heater circuit is two wires are gonna be the same color.
How do you test a sensor?
Unplug the sensor and connect either leads to the DVOM probes. Read the Ohm or resistance values and compare them to those of the manufacturer. If they don't match, the sensor is defective. If the resistance is infinite, you have an open circuit within the sensor.
How do you test a 1 wire oxygen sensor?
0:156:59How To Test An Oxygen Sensor - Old Vs. New - YouTubeYouTubeStart of suggested clipEnd of suggested clipJust one wire this one has three wires because it has a heating element. In the sensor itself toMoreJust one wire this one has three wires because it has a heating element. In the sensor itself to perform the test you need the sensor clamped into a vise.
How do you test a 3 wire O2 sensor?
1:454:33How to Test Resistance of O2 Sensor Heater - YouTubeYouTubeStart of suggested clipEnd of suggested clipAnd then we got to probe the appropriate wires on the component side of the connector. ThisMoreAnd then we got to probe the appropriate wires on the component side of the connector. This connector right here you want to probe those wires on that connector going to the heater circuit.
What is oxygen sensor golf?
Your Golf’s oxygen sensors are responsible for helping to keep your engine running at optimal efficiency. The engine management computer uses the data from all of the O2 sensors to keep the air/fuel mixture optimized. A bad oxygen sensor can affect the mixture greatly. Without being able to optimize the air fuel ratio, ...
What is the first O2 sensor?
Sensor 1- Sensor 1 would be the first O2 sensor in the line of sensors starting with the exhaust manifold and making its way back to the exhaust pipe. An Oxygen sensor that is between the catalytic converter and the engine is known as an “upstream” sensor.
What is the oxygen sensor after the catalytic converter?
Oxygen sensors after the catalytic converter are “downstream sensors”. As a rule, the upstream sensor is more important for engine timing and air/fuel ratios. By using a OBDII scanner you can determine exactly which sensor is bad, and what is wrong with it.
What happens when an O2 sensor goes bad?
When an O2 (oxygen) sensor go bad, it’ll cause your Volkswagen Golf ‘s engine to run less efficiently.
How do you know if your oxygen sensor is bad?
One of the most common symptoms that an oxygen sensor has gone bad is exhaust that does not smell good. The smell is often described as “rotten eggs” or sulfuric. Either way, like with rotten food, “the nose knows”.
Does the oxygen sensor on a golf club come on?
Oxygen sensors can change the way that your Golf’s engine runs. Most of the time, the check engine light will come on. It’s a good thing that the check engine light would come on, as there is more than one oxygen sensor, and they can be difficult to get to and test.
Can a golf fail an emissions test?
Failed Emissions. Often enough, there won’t be any noticeable signs of a bad oxygen sensor. You’ll go to get an emissions check done, and your Golf fails the test. Without a check engine light, it can be tough to lock down exactly what would cause the vehicle to fail, but oxygen sensors are one of the more common causes.
How to adjust O2 sensor?
Follow these steps: Connect your scan tool and start the engine. Open the engine at a fast idle (2,500 RPM) for about two minutes to allow the oxygen sensors to adjust and warm up to its operating temperature.
How to connect a voltmeter to an O2 sensor?
Make sure your engine is switched off. Connect the red lead of the voltmeter to the O2 sensor’s signal wire using a back probe test lead. Take the black lead and connect it to a good ground. After connecting the leads, start the engine until it’s warmed up and reaches close-loop operation.
What to do if oxygen sensor doesn't work?
After replacing your oxygen sensor, try to visually inspect the old sensor to see if you can identify the problem. Scan Tool Testing. If you have a scan tool with you, you may also use it to test the performance of your upstream O2 sensor.
What happens if your O2 sensor is bad?
A bad O2 sensor will almost always trigger your check engine light. Before you start testing your O2 sensors, use a code reader or scan tool to get the diagnostic trouble code (or codes). These will help you identify the issue that’s affecting your vehicle.
Why is my voltmeter reading low?
A defective spark plug or an exhaust leak, for example, may cause a consistently low reading. Although a good voltmeter usually provides accurate results, this may require further analysis of other engine components. Most of the time, these symptoms could also be related to other malfunctions inside your engine.
Why is my fuel sensor white?
It may also be caused by silica deposits in your fuel. If you notice a white sandy or gritty deposit in your old sensor, this may mean an antifreeze or ethyl glycol contamination. This contamination is usually caused by a defective cylinder head or intake manifold gasket.
Why is my car sensor black?
Black sooty deposits in your old sensors are usually indicative of a rich air-fuel mixture. White chalky deposits indicate silica contamination. Usually, this is caused by using the wrong type of silicone sealant when servicing the engine. It may also be caused by silica deposits in your fuel.
