How many wheels on a golf cart?
Under state law, personal transportation vehicles (PTV) have a minimum of four wheels, has a maximum level ground speed of fewer than 20 miles per hour, a maximum gross vehicle weight of 1,375, and a capability of carrying no more than eight passengers. State law bans PTVs on roads with a maximum speed limit over 25 miles per hour.
How to measure a 5 lug wheel bolt pattern?
The easiest way to estimate the 5 lug bolt pattern, is to measure from the back of a hole to the center of the second hole. For a 4 lug wheel, measure center to center of two holes directly across from each other. Measuring a 6 bolt wheel requires you to measure center to center of two holes directly across from each other.
How to measure wheel go kart wheel bolt patterns?
- Light Duty American Hubs, measurement "A" = 2-13/16''
- Heavy Duty American Hubs, measurement "A" = 4''.
- Heavy Duty Metric Hubs, measurement "A" = 110mm or 115mm
Can you put car wheels on a golf cart?
You can put ANY size low profile tire on a golf cart with a 6” lift. However, 8” wheels with 18” tires would look pretty silly on a super tall 6” lift kit. 12”-14” rims, with 22”-25” tires are generally what golf cart owners with 6” lifts prefer.
What is the lug pattern on golf cart?
The bolt pattern is 4” x 4” (4 inches x 4 inches or 100mm x 100mm). This is standard on almost all golf carts.
What is a 4 on 4 bolt pattern?
A 4 on 4 inch bolt pattern is measured diagonally on center. The first number indicates the number of lug holes and the second number indicates the diameter of the circle that those holes sit on.
What lug pattern is EZGO?

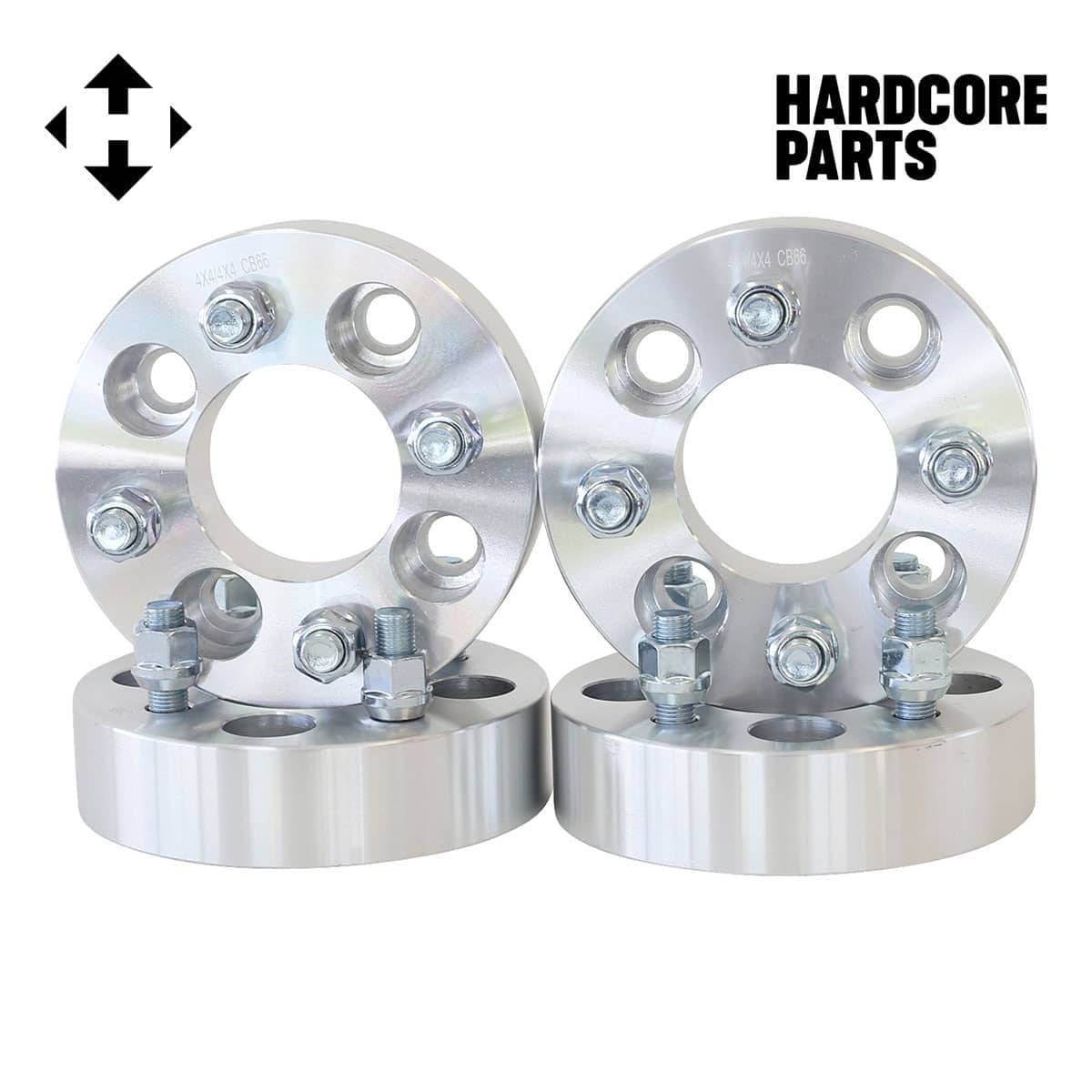

2 inch Golf Cart Wheel Spacers (4x4 Bolt Pattern, 62mm Bore, 1/2x20 Studs, Cone Seat Nuts) Compatible with EZ GO EZGO Club Car (Widens Track by 4 inches) 4x101.
What size are the bolts on a golf cart?
The 4×4 is the basic and standard size for every golf carting vehicle.
What is the most common 4 lug bolt pattern?
The Pattern The most common wheel patterns for 4x4 vehicles are five-, six-, and eight-lug. Traditionally domestic vehicles have simple fractional distances like 5-on-4 1/2, 5-on-5 1/2, and 8-on 6 1/2. Many modern and foreign wheels have metric distances (millimeters) like 5-on-135 and 8-on-170.
How do I measure a 4 lug bolt pattern?
For a 4 lug wheel, measure center to center of two holes directly across from each other. Measuring a 6 bolt wheel requires you to measure center to center of two holes directly across from each other. To measure an 8 lug bolt pattern, measure center to center of two holes directly across from each other.
Are all golf cart wheel bolt patterns the same?
The golf cart wheels sold on this site all have a bolt pattern of 4x4 (4 inches by 4 inches, or 101.6mm apart). This is standard on all golf carts (Yamaha, Club Car, EZGO, Par Car, STAR EV, Harley Davidson, etc.).
Can you put car tires on a golf cart?
0:143:28What are the Best Tires for My Club Car? | ASK DAVE | Golf Cart GarageYouTubeStart of suggested clipEnd of suggested clipMost golf carts come from the factory with a stock size 18 to 18 and a half inch tall tire. In orderMoreMost golf carts come from the factory with a stock size 18 to 18 and a half inch tall tire. In order to increase this tire height a club car will need a lift kit.
What has a 4x110 bolt pattern?
Let's face it: the 4x110 bolt pattern is most commonly associated with ATVs and for good reason. The most popular ATV brands like Honda, Suzuki Can Am, Polaris, Kawasaki and Arctic Cat all have models that ride on 4x110 bolt pattern wheels.
What size socket fits a golf cart lug nuts?
Deep Socket Lugs Standard 1/2"
What size are Yamaha Golf Cart lug nuts?
Yamaha Golf Cart Lug Nuts - 12mm x 1.25.
Do Yamaha golf carts use metric lug nuts?
16 Chrome Lug Nuts (Metric Threads 12mm-1.25, OD 3/4″) Fits ALL Yamaha Golf Carts ( Or any other cart with Metric Threads)
Sizing
Modern golf cart tires are tubeless and come in a wide variety of sizes and tread patterns. All tubeless golf cart tires have a thick ‘bead’ at the inner diameter of the tire on each side and air pressure pushes the bead against the wheel to form an air tight seal.
Tire Pressure
Your golf cart’s tire pressure is critical to long tire life. Proper tire pressure is usually indicated on the sidewall and will vary between brands or models of golf cart tires. Most golf car tires use somewhere between 15 to 25 PSI (pounds per square inch) with an average of about 20-22 PSI.
Tire Tread Patterns
Golf cart tire tread patterns vary from smooth (no tread at all) for greens mowers to straight rib and sawtooth for golf, turf, and street, to every type of knobby imaginable for off-road, mud, sand, and lifted application. We carry a full line of golf cart tires in our online store for golf/street use and for all types of off-road terrain.
Golf Cart Wheels
The rubber tires just described are useless without a golf cart wheel to which it is mounted. Golf cart wheels are generally made from steel or aluminum and can be painted or chromed. Wheels have rim flanges at their outer edges that provide a ‘seat’ for the ‘bead’ of the golf cart tire and a small hole for the valve stem.
What is offset on a wheel?
Wheel offset is the distance from the mounting surface of the wheel to the true center line of the rim. A positive offset means the mounting surface of the wheel is positioned in front of the true center line of the rim / tire assembly. This in effect brings the tire in to the fender well more.
What is a hub bore?
Hub Center Bore: Relates to the center hole in the wheel that centers the wheel on the hub of the car. Since most wheels are mass produced, they have a large center bore to accommodate several different vehicles. If this is the case, it is recommended that you use a hub ring. Hub rings are hard plastic or metal ring that fits between the wheel and the vehicle. This centers the wheel perfectly on the hub ensuring that there is no run out when the wheel is installed on to the vehicle. Without hub rings it is possible to get vibrations even if the wheel / tire assembly is perfectly balanced.
How many bolt holes are there in a go kart?
Racing wheels for go-karts most commonly have a 3-bolt pattern. Off-road, homemade and custom go-karts typically run on wheels that have between 4 to 8 bolt holes. Usually, go-karts use 3-lug, 4-lug, 5-lug and 6-lug wheels, so I’ll focus on these four bolt patterns when explaining how to measure them. Hover or click over the red exclamation mark ...
How to measure a 5 lug go kart wheel?
Select 2 bolts that have a 1 bolt spacing on either side. Now, start at the outer wall of the bolt hole and measure all the way to the center of the other bolt hole. This distance will give you the bolt circle diameter for a 5-lug go-kart wheel.
What are the dimensions of a go kart wheel?
US pattern go-kart wheels (also known as American go-kart wheels) use imperial units of measurement. That’s why you’ll see something like this: 3 1/4” x 2.5”.
Where are go kart wheels used?
US pattern go-kart wheels are mostly used by manufacturers in the United States. On the other hand, there are also metric go-kart wheels. As the name suggests, metric wheels use metric units of measurement and are most commonly used outside of the US, typically in Europe or other parts of the world.
