The Five Most Common Golf Cart Battery Packs
| Battery System Type | Voltage | Amps (Estimated) | Approx. Travel Distance |
| 6-6 Volts | 36 Volts | 1,350 | Est. 20-22 Miles |
| 4-12 Volts | 48 Volts | 600 | Est. 10-14 Miles |
| 6-8 Volts | 48 Volts | 1,020 | Est. 17-21 Miles |
| 8-6 Volts | 48 Volts | 1,800 | Est. 33-37 Miles |
What is a good battery for a golf cart?
Best Batteries for Your Golf Cart: Lithium-Ion. Lithium batteries offer many advantages over lead-acid and AGM batteries, such as an extended lifespan, significant weight reduction, increased efficiency, and an overall reduction in cost. These advantages make lithium batteries the best option for golf cart batteries.
What battery goes in a 48 volt golf cart?
Most golf carts arrive from the factory with lead acid 6 volt, 8 volt, or 12 volt batteries wired in series * to make a 36V or 48V system. For the longest run time, lowest maintenance costs, and longest lifespan we recommend upgrading to lithium iron phosphate (LiFePO4) batteries.
What voltage should golf cart batteries read?
These are the steps for equalizing your batteries:
- Verify that the batteries are fully charged.
- Disconnect any loads from the battery bank to protect any sensitive electronic components.
- Remove all the hydro caps from the cells.
- Set your charger to “Equalizing” voltage (15.5 volts for a 12-volt bank). ...
- The batteries should begin gassing and bubbling.
How do you fill the battery in a golf cart?
Step-by-step Guide
- Step 1. – Insert pump into jug of distilled water! ...
- Step 3. – Once hand pump bulb is primed remove the dust cover from the end of the fill line on your battery watering system.
- Step 4. – Squeezing the golf cart battery watering system hand pump with firm steady pressure to pump water into the battery cells.
- Step 5. ...
- Step 6. ...
What should a fully charged golf cart battery read?
Healthy batteries will indicate about 50 to 52 volts on the voltmeter. Most battery packs hold around 48 volts. Keep in mind that the high number doesn't mean that the batteries are instantly good.
What voltage should a fully charged 48V golf cart be?
The target voltage for a 48 volt charger for AGM or some flooded batteries is 2.4 to 2.45 volts per cell, which is 57.6 to 58.8 volts.
What should a 36 volt golf cart read at full charge?
The peak charging voltage for Gel batteries is 2.3 to 2.36 volts per cell, and for a 36 volt charger this works out to 41.4 to 42.5 volts, which is lower than a wet or AGM type battery needs for a full charge.
What voltage does a golf cart charge at?
You can charge an 8 volt golf cart battery using a 6 or 12 volts charger. For best results, charge only one battery at a time after disconnecting them from the golf cart.
Can a golf cart battery be overcharged?
Overcharging your golf cart batteries may damage them. It is best to use an automatic charger that turns itself off when a battery is fully charged. Some older models lack this important feature. If you must use a manual charger, don't forget to turn it off.
What is the voltage of a fully charged 48 volt lithium battery?
58.4 volts48V LiFePO4 Battery Voltage Chart They rarely make sense for small-scale projects. They are fully charged at 58.4 volts and fully discharged at 40 volts. They are made by connecting 16 3.2V LiFePO4 cells in series.
At what voltage is a 36 volt battery dead?
Voltage: most ebike kits are rated for a specific voltage range. A typical 36v ebike needs a battery that delivers power between 42v to 30v. A 36v pack, at 42v is fully 100% charged and holding as much energy as it can and at 30v it should shut down and stop giving power before causing permanent damage..
How do I know if my golf cart battery is bad?
1:3013:31Diagnosing Bad Golf Cart Batteries - YouTubeYouTubeStart of suggested clipEnd of suggested clipAnd you can see that this one is showing negative 1.12 which i mean is showing reversed polarityMoreAnd you can see that this one is showing negative 1.12 which i mean is showing reversed polarity anyway so that's kind of odd. But this one has very very low voltage. So with the golf cart batteries.
How long should it take to charge a 36 volt golf cart?
Charge your batteries for 8 to 10 hours with the proper style of golf cart battery charger. The best practice is to charge overnight after you are done using your cart for the day. Even if you only used the cart for 5 minutes, you'll want to give the golf cart batteries a good charge.
Should golf cart batteries be charged after every use?
Yes. New golf cart batteries should be charged every time they are used as this will extend their lifespan, help them retain their capacity for longer, and prevent discharge. It is vitally important to charge new golf cart batteries, even after their first use.
What amperage should I charge my golf cart batteries?
The ammeter on a 36-volt charger should show at least 15+ amps when the charger is plugged into the golf car, even if the batteries have not been used for a short while.
What should a 48 volt battery read when fully charged?
So you have 10x4. 2=42V for 36V battery fully charged, 13x4. 2=54.6V for 48V battery fully charged and 14x4. 2=58.8V for 52V battery fully charged.
What is the lowest voltage for 48V battery?
I believe the 48v bbs02 has a low voltage cutoff of 41v. Your battery BMS may have a different cutoff, and so your system should cutoff when the higher of the two is reached.
How do I know if my golf cart batteries are bad?
8 Signs You Need to Replace Your Golf Cart BatteriesCharge Times Are Out of Hand. Just like any rechargeable battery, the repeated cycles of draining and charging your battery can take a toll on it. ... No “Get Up and Go” ... You See Visual Signs. ... Driving Until They Die. ... People Are Always Running The Radio.
How long does it take to charge a 48V battery?
between 2.5 - 6 hoursFully charging a battery typically takes between 2.5 - 6 hours, depending on the type of battery charger. Here's how to work out how long a charger will take to charge your bike battery: Let's say you have a 48-volt battery with 10 amp hours* and a 2 amp charger.
How many volts are in a golf cart battery?
Now that we understand the differences between Amperage and Voltage, we can begin to break this down so we can locate the differences between various battery packs. For standard golf carts, we will typically see a Six Eight Volt Battery System. This can be visually determined by locating six batteries with 8 cells per battery. A cell is distinguished by a battery cap that is used for watering the batteries. With batteries used in Golf Carts, each cell will represent 2 Volts. Let’s take a look at the 5 most common battery packs we see in the market:
Why is it important to know the difference between golf cart batteries?
The reason understanding their differences is so important is due to the large expense of replacement batteries. By knowing their differences ahead of time, you will be able to decipher which battery pack is suitable for you when making your golf cart purchase.
How does amperage affect golf carts?
It determines how far you can travel before having to fill up the tank. Well, Amperage in a golf cart is like the gas tank in your car. It will determine how far you can travel on a single charge in an electric Golf Car. The more amperage in a battery pack, the further you can drive before having to charge. Click here to learn how ...
What is the relationship between horsepower and MPG?
To get a better idea of what amperage is like in a car, let us discuss the relationship between Horsepower and MPG. Horsepower within a car determines the acceleration and power of your car . If there is no fuel in the car though, then the vehicle is not going to go anywhere. That is the importance of MPG and also how big your gas tank is in your ...
Is voltage in a golf cart battery similar to horsepower?
Therefore, Voltage in a battery pack inside of an electric vehicle has to do with power. It does not have to do with fuel. Therefore, voltage in a battery pack within a golf cart will be comparable to the horsepower in a car.

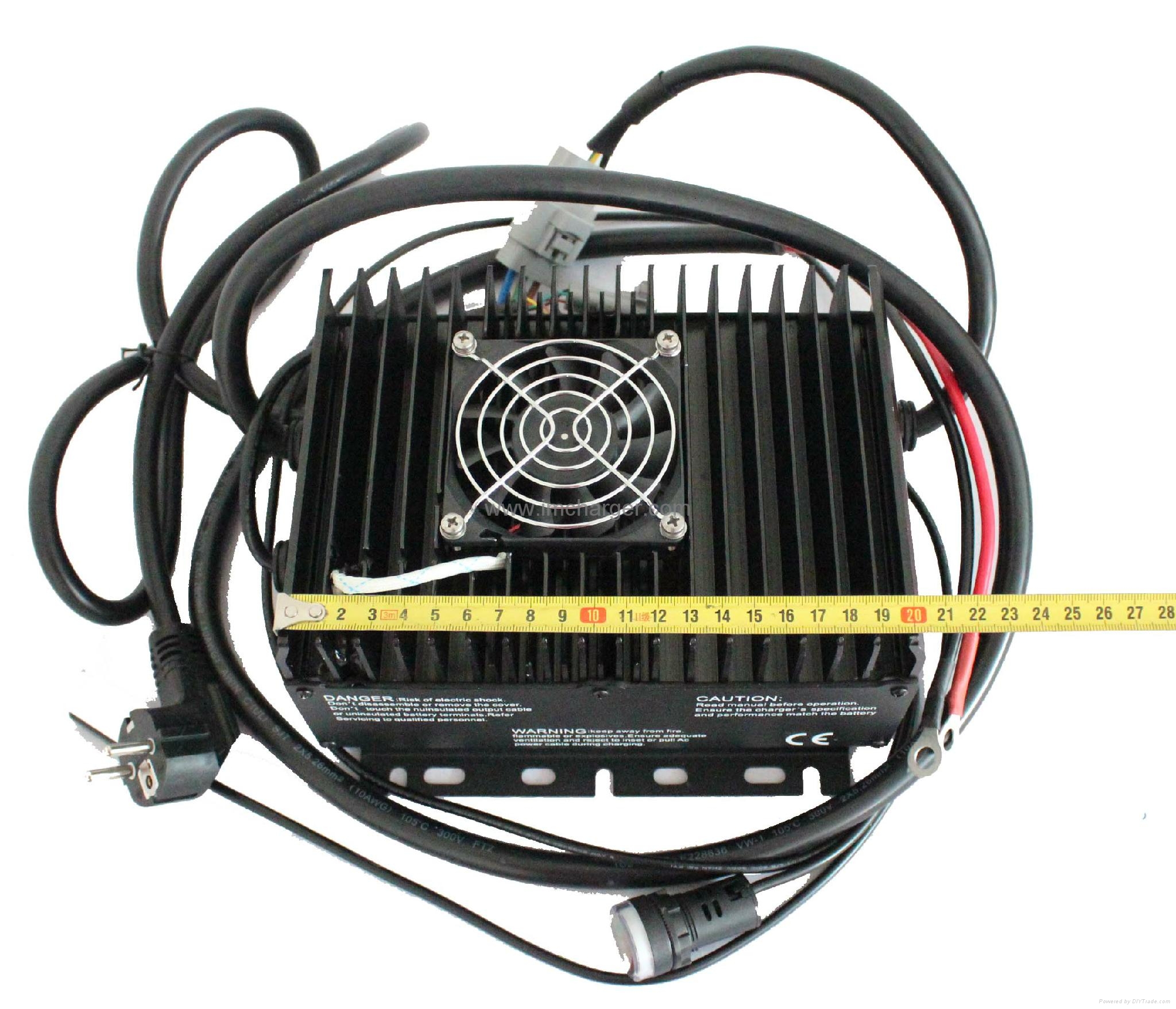

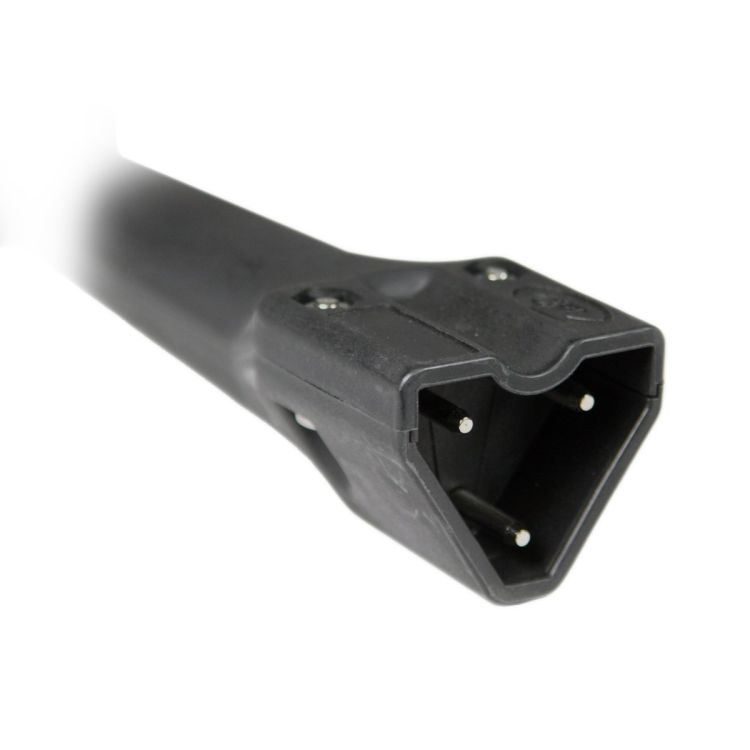

How many volts does a golf cart charger have?
There are about 8 different types of charger plugs that you can find across various golf cart models. While some of plugs are exclusively for either 36 volts or 48 volts carts, others will work with both voltages.
How to choose a golf cart battery charger?
How to Choose the Best golf Cart Battery Charger. You must choose a battery charger according to the voltage of your cart to prevent the possibility of damage to your batteries. Check the charging receptacle of your golf cart and select your charger accordingly.
How Long Does it Take to Charge a Golf Cart Battery?
A new golf cart battery that is fully discharged will take 2-4 hours to completely charge. On the other hand, a 5 year old battery may take up to 10 hours to fully charge.
How to turn off golf cart battery?
Turn the ignition key of the golf cart to the OFF position. Although there is no battery draw when the key is left on, doing this is considered to be a safe practice.
What is the power of a golf cart generator?
The generator can charge the batteries that supply the power to an electric motor responsible for moving the cart. The 48 volts system in a golf cart usually features an onboard computer (OBC) that controls the battery pack charging process and restricts the charging when the cart is moving.
How to keep golf cart from accumulating?
Keep the golf cart where there is good ventilation to prevent gases from accumulating during the charging process.
Why does my golf cart go into tow mode?
Your golf cart usually runs in tow mode when it does not have enough power to get moving on its own. One reason may be that the batteries are old and do not have the same power as new ones. If this happens with new batteries, the most likely reason is that they don’t have enough charge.
How many volts should a golf cart battery be?
For example – On a full charge a good set of golf cart batteries will allow you to surely play a few rounds of golf. Using a 48 volt Club Car for example you can play a round of golf with a new set of fully charged batteries and after round is complete the cart will still be above the 48 volt threshold on the battery banks capacity. One because the start / stop load not very demanding vs all out start stops continuously without letting the golf cart or batteries catch their breath per se… Though this is also because a fully charged 48 volt cart with say 6x 8 volt batteries will be around 51 volts not 48 volts.
Why is my golf cart battery undercharging?
Undercharging: Undercharging caused by using a cheap golf cart battery charging system ( One that does not apply enough amperage in the charging cycle) can cause lead sulfate to gradually build up and crystallize on the plates greatly reducing the. battery’s capacity and ability to be recharged.
What can reduce battery life?
Improper Maintenance: Low electrolytic fluid and corrosion on battery connections can greatly reduce battery life and performance.
What is the specific gravity of a battery?
If the specific gravity measures between 1.100 and 1.220, the battery must be. recharged. If the specific gravity is between 1.225 and 1.265, the battery is ok to test. If the hydrometer has a temperature correction chart, be sure to adjust the reading for the battery’s temperature.
What happens if you loosen a battery?
Incorrect Installation: Loose battery hold-downs cause excessive vibration, which can result in damage to the plates and internals of the battery. Especially important with new batteries as the lead has not cured yet and is very soft.
Do you need a volt meter before a load test?
Check voltage before each test with Digital Volt Meter or If you purchase the Load tester Pete recommends it has a volt meter on it to help facilitate a proper test.
How Do You Charge a 36 Volt Golf Cart Battery?
If your golf cart has a 36-volt battery pack, it will probably have three 12v individual batteries or six 6v batteries. If you don’t have the charger that came with your golf cart, or if you need to run a maintenance charge, you can charge each battery in the pack individually and charge it.
What Should My Golf Cart Charger Read when Fully Charged?
Modern cart battery chargers have LED lights to show the charge status. Most of these chargers will have a light displaying that the charger is plugged into the wall and another light indicating that the charger is working. Once the charge is complete, another light will turn on, generally in green next to a sign “charge complete”.
What is the Proper Way to Charge an Electric Golf Cart?
If your electric golf cart batteries are in good shape, the proper way to charge an electric golf cart is to plug it into the electric network using the charger that came with your golf cart. If your golf cart didn’t come with a charger, you should find one that matches your vehicle’s charging socket and voltage specifications.
How Do You Trick a Golf Cart Charger?
When your golf cart’s batteries are completely discharged, you will have to “trick” your golf cart charger by using an automotive battery charger to manually charge them, at least to the point where your cart charger will read some voltage. That’s how you trick a golf cart charger.
How to Bring Golf Cart Batteries Back to Life?
When your golf cart batteries are completely dead, the best way of bringing them back to life is by charging them manually with a car battery charger. This is because your golf cart chargers are not designed to detect very low voltages and a regular car battery charger will jumpstart the process.
Can You Overcharge Golf Cart Batteries?
Overcharging golf cart batteries is dangerous and can cause damage so it’s not recommended. Batteries have many chemical components that heat up every time you charge them. Overcharging a battery will overheat these chemicals, ruining the battery and the heat buildup may make it catch fire.
How many volts does a golf cart battery use?
Most modern-day golf cart batteries come in either 6, 8 or 12 volts (the voltage being the force needed to create an electrical current, indicating the strength of the battery).
How often should you charge golf cart batteries?
Golf cart batteries should be kept fully charged at all times – this means hooking them up to a charger as soon as you are finished using the cart. Regular charging will prevent damage to the battery and give it longer-lasting life.
Should your golf cart be turned on when charging?
No. You should turn your golf cart off when charging its batteries. Trying to charge a golf cart while it is running is a pointless exercise, as the battery will be draining while you’re trying to charge it. A golf cart should only be turned on once its batteries are fully charged.
Should golf carts be plugged in all the time?
No, you should not leave your golf cart plugged in all the time. While automatic battery chargers are designed to shut-off once at full capacity, leaving a battery connected to power for long periods leaves it susceptible to damage should the electrical circuit be overloaded.
Should golf cart batteries make noise when charging?
If your golf cart uses a standard 12 volt flooded lead acid battery, then it is quite normal to hear a bubbling sound when it’s charging. However, if your cart uses a sealed battery (such as a gel or AGM battery), then a hissing or bubbling sound may indicate damage.
How do I keep my golf cart batteries from dying or corroding?
To ensure long-lasting life for your golf cart batteries, make sure you: keep them fully charged at all times; keep the water level in your battery cells at an optimum level; and keep the terminal connections on your battery clean. Doing these three things will prevent your battery from corroding or dying.
What type of lead acid is used in golf cart batteries?
Golf cart batteries do come in different types and models – including Flooded Lead Acid; Gel Lead Acid; and AGM Lead Acid – so it’s important to seek clarification if you’re uncertain about which replacement to buy.
How many amps does a golf cart battery take to recharge?
To recharge, the batteries will require 90 ampere-hours + 20% to make up for any charge deficiency.
What Is The Best Golf Cart Battery?
Trojan T-105 batteries are the best-known premium battery and have nearly 100 years of manufacturing experience. Trojan Battery Company was founded in 1925 and developed the golf cart battery for the Autoette in 1952. The distinctive maroon color of the T-105 makes it easy to distinguish from its competitors.
How Much Does It Cost To Replace The Batteries In A Golf Cart?
The cost of replacing the battery pack typically runs from $800 to $1500 depending on the number of batteries needed and the brand you go with.
Why would my battery go bad?
As mentioned earlier, the electrolyte level must be kept at optimum levels or damage can be done to the plates inside. Incorrectly watering is the major cause of problems in batteries.
How to tell if your golf cart battery is bad?
Symptoms of a failing battery or batteries could include the following: 1 You may notice the range decreasing over time. The range should be about 2 rounds of golf. 2 A “Shutter” is when the cart feels like you are running across a corduroy road or someone is tapping the brake in a rapid staccato. This is a classic sign of low voltage. If this is experienced, your cart may be low on charge, the charger may not be functioning properly or you may have a battery issue. 3 On electric golf carts, the cart refusing to move at all on a charged set of batteries could be the controller not engaging when the voltage falls below a preset value. 4 It takes twice as long to charge your batteries as it did when you first had them installed. As the batteries age, they will not hold a charge as well as they used to. The charger has no way to know this and will continue to charge the batteries trying to get to a full charge – meaning it will take longer to charge the batteries than normal.
When do golf cart batteries discharge?
The state of charge or discharge golf batteries are in at the end of the day depends upon the type of play and the number of holes the golf cart was used for. The battery charger is designed to bring a normally discharged battery back to full or nearly full charge in a given time. When charging, allow enough time for a complete charge cycle.
How to tell if your golf cart is low voltage?
You may notice the range decreasing over time. The range should be about 2 rounds of golf. A “Shutter” is when the cart feels like you are running across a corduroy road or someone is tapping the brake in a rapid staccato. This is a classic sign of low voltage.
How many holes does a golf battery pack play?
In other words, a battery pack with a 60-minute discharge rating will usually run two rounds (36 holes) of golf before the pack needs to be re-charged. A pack that is rated at 15 minutes would normally play a 9-hole round; a 105-minute pack would play 3 18’s and a 9 before it would need to be re-charged, etc.
How many holes can you rent a golf car in one day?
The “30-minute rule” for one 2 person 18-hole round is an average, but it is used by golf courses to judge whether a golf car can be rented twice in one day, and by golf car manufacturers for warranty replacement purposes.
How many minutes of discharge time is a golf round?
The industry standard is that 30 minutes of discharge time = 1 normal, 2-person, 18-hole round of golf.
Can a golf car run below the cut off point?
Modern golf cars with electronic speed controllers will normally not allow the car to run below its cut-off point. If voltage in the battery pack drops below its cut-off point the controller will normally shut the car down until the voltage comes back up above the cut-off point.
