What Causes Golf Cart Battery Terminals to Melt?
- Loose or dirty connections. With repeated use, the connections of the battery terminals would have become loose,...
- Stalled motor. A stalled motor can cause the terminals of a battery to have a meltdown. It happens when a motor receives...
- Excessive internal resistance. The internal resistance of the cables used to connect...
Full Answer
Why are my golf cart battery cables melting?
A poor contact connection or a missing ground strap between the chassis and the engine may also result in the melting of your golf cart battery cables. Alternatively, corrosion of either of the above two can also be a reason for the battery cables to melt. A third reason is that the motor of your golf cart has a bad starter.
How to fix a golf cart battery that won’t turn on?
Check the type of wire connection and replace all automobile cables with those specifically intended for golf carts. Tighten all the loose connections. One main reason why your golf cart batteries get damaged is due to melting. As mentioned above, this can happen to either the cables or the terminals of the batteries.
How do you keep battery posts from melting on a golf cart?
To ensure that your battery posts don’t melt, replace the low-quality cables with cables that have at least 4 Gauge thickness and are specifically intended for golf carts. Dust or dirt accumulation on battery terminals can make the batteries operate at less than the expected efficiency.
Why does my golf cart battery smell bad when charging?
Don’t worry too much if your golf cart battery smells bad during charging. This foul odor which I often describe as “rotten” eggs is completely normal during the battery charging cycle. When you buy a new battery off the store shelf it will contain an extra high level of acid. It’s completely normal for gas to be released.
Why did my battery terminal melt on my golf cart?
Often, the bolt portion of this post melts down due to heat and breaks off. The number one cause of this issue is due to loose or corroded connections. No matter how tight you get your connections, they will eventually loosen due to the expansion and contraction which occurs through use.
What causes a golf cart battery to overheat?
Loose battery connections and dirty terminals are the main reason why your golf cart battery will get too hot. A battery that feels too hot while charging usually means that the water level is too low.
What causes battery to melt?
High resistance and high current flow will cause battery terminals to melt. When electrons are restricted to pass through, it will create heat. Depending on the amount of resistance buildup near battery, that much heat will be generated. Resistance can be too high to the point that terminals can melt.
Why is my golf cart battery smoking?
The average cart is powered by lead acid batteries which are positioned underneath the seat. It isn't uncommon to fold back the seat of the cart and find all 6 batteries desperately in need of fluid. When batteries run dry, they can smoke and even explode.
What happens if you add too much water to golf cart batteries?
Golf cart batteries produce electricity using electrolytes and water, which means you will need to occasionally add some more water. But be careful of the amount! Too much water can lead to the electrolytes overflowing. Too little water can cause sulfation, which damages the lead plates.
What does it mean when a battery is boiling?
If the machine is just used for a few minutes then charged again, these algorithms will force extra overcharge into the batteries, causing additional boiling, but also serving to equalize the pack. Solution: If this is not desired, run the machine until approximately 90% State of Charge before charging.
Why would battery cables smoke?
There is a faulty, high resistance (often due to corrosion, wire defect or break or loose mechanical connection) connection at the battery post and/or at the vehicle ground(s) at the frame.
How do I fix my battery from smoking?
If the battery starts smoking during charging, disconnect the charger immediately. The problem might be overcharging, which can only be stopped by disconnecting the charger and letting it cool. You should also check the charger to ensure it is in good condition.
How often should I add water to my golf cart batteries?
DO: You have to get your timing right. After charging your battery is when you want to add water. Adding water after charging prevents acid from spilling over. ... We recommend service once or twice a year. Always use distilled water so you don't add additional minerals into your battery.
Can golf cart batteries catch fire?
Golf cart batteries may catch on fire and while these situations are quite rare, they can occur. Most of the time, these fires are caused by the battery or the electrical elements of the cart. In some gasoline models, there is a chance that a fire may be caused by their operation.
Why do golf cart batteries melt?
Why Do Golf Cart Battery Terminals Melt. The terminal of a golf cart battery will usually melt when connections become loose or dirty. To avoid terminals melting, ensure you use the correct size wires, and that limps, nuts and bolts are tightened securely.
Why does water boil in golf cart batteries?
Why Water in Wet-Cell Batteries Keeps Boiling While Charging. There are multiple reasons for the water in wet cell batteries to boil. Sometimes, you may have more water in your golf cart batteries than what is needed. According to some studies, there should be a gap of ¼ inch above the plates.
Why is my cart hot after charging?
Using your cart with a dry battery will cause heat damage quickly! Maintaining optimal water levels is a must. If you find your batteries becoming hot soon after charging, it may indicate low water levels. Don’t forget to check the cable connections as well.
How far should the battery be from the plate on a golf cart?
According to some studies, there should be a gap of ¼ inch above the plates. Sometimes, your golf cart batteries are old and worn out. Such batteries fail to work efficiently and will eventually die. These factors will force your charger to add more pressure on the batteries to get them completely charged.
How much torque does a golf cart battery need?
According to the majority of the golf cart battery manufacturers, the torque required falls between 85 to 100 and 5-inch pounds.
What happens if you use a dry battery?
Remember it’s crucial that you regularly check the water level in your battery. There is a line marked on the tank that indicates how much water is needed. If the amount of water in your battery is too low, then you’re working with a dry battery. Using your cart with a dry battery will cause heat damage quickly!
What is a post on a golf cart?
The post is associated with the cell plates of the golf cart’s battery. This helps in the transferring of power from battery to the engine of the golf cart. Remember that leaving connections loose or dirty can easily lead to some resistance.
1. Excretion of Hydrogen Gas
When it comes to the main reason why golf cart batteries blow up, the answer is simple; golf cart batteries excrete a flammable and combustible fume known as hydrogen gas. Hydrogen gas is a by-product of batteries that occurs during a chemical reaction involving the water and sulfuric acid solution and lead plates.
2. Poor Quality Chargers
If you are using a charger that is poor in quality, you will be taking the risk of causing an overcharge to occur (which will be discussed further later in the article) and ultimately producing an explosion. Overcharging, along with blocked or clogged vent plugs, can cause the by-product hydrogen gas to accumulate within the cell.
3. Clogging in Vent Caps
Golf cart batteries require a vent in order to release the gases and fumes that form inside the pack, if the vent plugs or caps become clogged or blocked from dirt, corrosion, or dust, the accumulation of hydrogen gas is highly combustible.

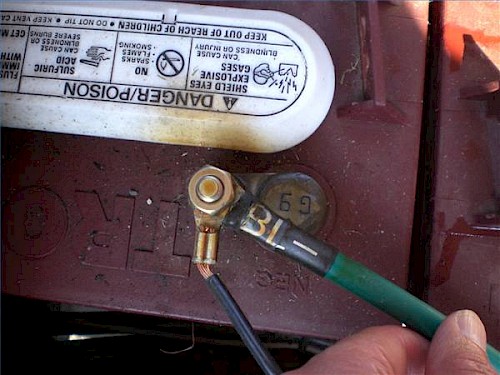

4. Frayed or Corroded Battery Cables
A very important part in proper maintenance for your golf cart batteries is ensuring that all cables connected to the battery have no fraying or corrosion.
5. Wet Battery Lids
At some point, your batteries will secrete some battery acid while charging. Hydrogen gas is produced at a rapid rate and causes bubbling and boiling as the acid spills over onto the lid of the batteries.
6. Sparks or Fire
Due to the combustibility of hydrogen gas, when it accumulates within the battery pack, a single spark or flame can cause the batteries to blow up. Once the amount of hydrogen gas inside a room reaches 4 percent, it becomes highly combustible.
7. Overcharging
Poor quality chargers can continue to charge your batteries past their initial stopping point, especially if you need to replace any of the batteries in the pack; it is always recommended that you change every battery within the pack in order to reduce the risk of unbalanced charging.
