Where is the fuse on a Yamaha golf cart controller?

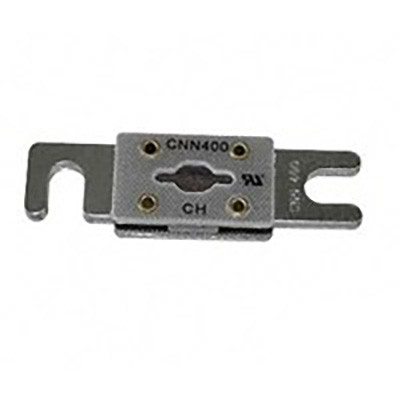

Golf carts with an Alltrax controller usually feature a 400-amp fuse fitted on the controller. This fuse must be connected to the positive terminal of the main battery pack. The fuse box in a 2014 Yamaha golf cart is located on the left side of the controller.
Where are the fuses on a G2 electric golf cart?
In a G2 electric cart, the fuses are present on the rear inner fender. This is on the front of the driver’s side of the cart. They’re round in shape and made of glass.
Where is the fuse for the battery charger located?
The fuse is located in the power circuit instead of the charging circuit. When a fuse is connected to the power circuit, it tends to blow out faster since the current rating will be more than 60 amps. It should be connected to the charger socket on one side and the main battery post on the other side.
Do golf carts have fuses and breakers?
Yes, all golf carts have fuses and breakers. Most controllers like Alltrax come with a fuse because having a fuse on the battery pack offers many advantages. One major advantage of having the fuse is that it offers protection against fire or a short.
Does a Yamaha golf cart have a fuse?
Yamaha typically places the fuses on its golf carts in the same location for each model. This choice is designed to create a uniform style between each of these models that makes it easier to work on them without running into any complications.
Where are fuses located on golf cart?
You can use your golf cart's service panel to help you find where the different fuses are located. The service panel is commonly located on the rear fender, although this will vary from model to model.
Where is the reset button on Yamaha electric golf cart?
It should have a small reset button (Usually it will be red) located near the main battery supply. Hit the reset button and then put the cover back on the motor. The next step would be to recharge your cart and try turning it on again. If it starts up then you're in luck!
Why is my Yamaha golf cart not working?
If your cart is sluggish or won't start, the battery may need to be charged. If it is charged, but still not working properly, make sure the battery terminal connections are clean and secure. You can use a mixture of baking soda and water to clean the terminals by removing corrosion and other debris.
Where is the fuse box?
Fuse boxes are commonly found in utility rooms, porches or under-the-stairs cupboards. You may also have one in your hallway or garage. Wherever your fuse board is located, you must have easy access to it.
Why does my electric golf cart have no power?
If you're lucky, the problem could be as simple as a loose wire or a broken coil. In some cases, corrosion can also be a factor. If you suspect a faulty solenoid, your best bet is to take your cart to a repair shop. A mechanic can diagnose the problem and replace the solenoid if necessary.
How do I reset my Yamaha golf cart?
Expose the motor (you'll probably need a screwdriver to remove the cover), and look for a red button. It is usually near the main power source, where most of the wires are connected. Once you've pressed the button to reset the motor, reassemble the cart, charge up the batteries, and give it a test run.
What causes a golf cart not to start?
As the main source of power to your electric golf cart, the batteries are commonly the cause for why your electric golf cart won't start. Acid-based batteries are typically used for electric golf carts and must be recharged in order to work properly.
Where is the solenoid located on a Yamaha electric golf cart?
0:095:38Replace Solenoid in Golf Cart - YouTubeYouTubeStart of suggested clipEnd of suggested clipCart um your solenoid could be located in a bunch of different places but almost always underneathMoreCart um your solenoid could be located in a bunch of different places but almost always underneath the seat.
Why does my gas golf cart have no power?
The main reason why a EZGO golf cart can lose power is because the battery is not charging due to loose cables or the corrosion of the connecting terminals. If they become loose or some of the electrical circuits' connecting wires snap, the battery loses power.
How do you fix a golf cart that won't move?
When the cart won't move, you have to be sure that the batteries are sending sufficient power to the circuit. You must check the fuse. Use the voltmeter to check the voltage at the key switch. In a cart with batteries rated at 48V, it must show 48V at the key switch.
How do you know if your golf cart motor is bad?
You have enough going on in your life without your golf car refusing to start when you turn the key in the ignition. If your golf car won't start, is slower than it used to be, or is experiencing other technical problems, you could have a bad motor on your hands.
