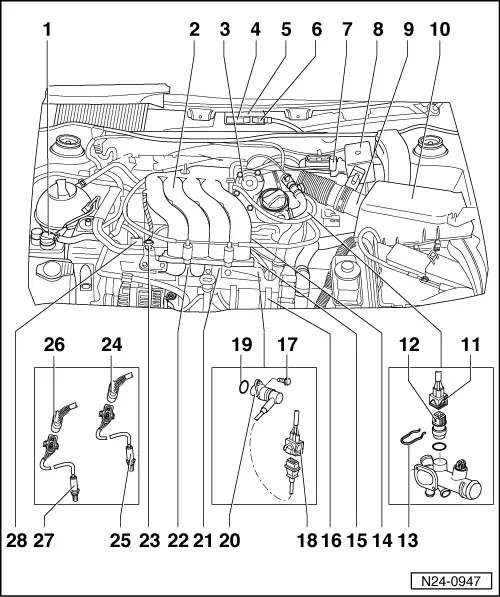

Where is the camshaft positioning sensor located?
The Camshaft Position sensor is typically located in the cylinder head of the engine and has a cylindrical portion that inserts into the head. The Crankshaft Position sensor is normally located in the timing cover or on the side of the block with a cylindrical portion that inserts into the block.
How do you test a camshaft position sensor on a VW?
0:515:05Diagnosing Bad Cam Sensor on VW 2.0 L Engine - YouTubeYouTubeStart of suggested clipEnd of suggested clipMake sure the negative lead is grounded. And let's check. All right so 5 volts that is the power.MoreMake sure the negative lead is grounded. And let's check. All right so 5 volts that is the power. And when you're looking at the connection you're looking at upside down so it's actually this way.
What does a faulty camshaft sensor do?
A failing camshaft position sensor begins losing its ability to quickly transfer data. Mismatched fuel delivery and ignition timing, even if off by a few milliseconds, will cause your vehicle to sputter, accelerate poorly, lack power, stall or even shut off.
What are the signs of a failing cam sensor?
If your vehicle idles roughly, stalls frequently, has a drop in engine power, stumbles frequently, has reduced gas mileage, or accelerates slowly, these are all signs your camshaft position sensor could be failing.
Can a car run without a camshaft position sensor?
The car doesn't run. The engine will either start or stall if it doesn't turn over. The engine will run poorly if the same sensor is unplugged and no signal is sent.
How do you reset a camshaft position sensor?
Unfortunately, there's no way to reset a camshaft position sensor. If you're having camshaft issues (check engine light on, acceleration trouble, sputtering and stalling, etc.), you'll have to replace the part entirely.
Do cars have 2 camshaft sensors?
Many modern engines have one camshaft sensor for each camshaft. This can mean up to four, although some cars will only have two. When you have an issue with your Check Engine light, there's a chance a good car insurance policy will pay for the necessary repairs.
Is it hard to replace a camshaft position sensor?
This should be done any time you work with sensors or electrical components. It may be easiest to remove and replace the camshaft sensor from under your vehicle, but it can also be done from the top by removing the air filter housing.
Will a bad camshaft sensor throw a code?
Answer: Usually a camshaft sensor intermittent failure can produce no code. But you'll notice a change in driveability performance at times. Sometimes it's possible to detect the failure with a scan tool.
Will disconnecting battery reset crankshaft sensor?
To reset the check engine light you can disconnect the battery via the negative battery terminal and let the vehicle sit for an hour before reconnecting the battery. This will drain all of the power from the electronics and clear any short term memory.
What's the difference between a camshaft sensor and a crankshaft sensor?
The main difference between camshaft and crankshaft position sensors is that the camshaft position sensor is used to find the position of the camshaft while the crankshaft position sensor is used to detect the position of the crankshaft and piston.
How much does it cost to replace a cam sensor?
Camshaft Position Sensor Replacement Cost To replace a camshaft position sensor, you can expect to pay anywhere from $95 to $200. Parts alone will run about $25 to $100. Labor costs will be in the range of $70 to $100 for professional replacement.
How do you test a VW crankshaft position sensor?
1:467:07How to Test Crankshaft and Camshaft Position Sensors - YouTubeYouTubeStart of suggested clipEnd of suggested clipBut you don't have to remove your sensor you can just do these tests on the car first things firstMoreBut you don't have to remove your sensor you can just do these tests on the car first things first you want to close you take a look at the plastic housing. Your sensor if you see any major cracks.
How many ohms should a camshaft sensor have?
Camshaft position sensor resistance test Set your multimeter to Ohms and touch your meter leads to the sensor terminal pins. If there is infinite resistance, the sensor is open and you need to replace it. On some models, you'll get a resistance value between 200 and 900 ohms. Consult your repair manual specifications.
How does a 2 wire cam sensor work?
0:062:42CAM or Camshaft Position Sensor Testing - YouTubeYouTubeStart of suggested clipEnd of suggested clipThe cam sensor lets the ACM know the camshafts rotational speed. And position there are three mainMoreThe cam sensor lets the ACM know the camshafts rotational speed. And position there are three main types of cam position sensors.
How do you test a 3 pin crank sensor?
1:428:29How to test a GM 3-wire crank sensor (hall effect type) - YouTubeYouTubeStart of suggested clipEnd of suggested clipB80 post and our test lights connected to positive touch. A test light on ground just to double-MoreB80 post and our test lights connected to positive touch. A test light on ground just to double-check yourself make sure the test light lights.
