EZGO Run/Tow Switch Location The Run/Tow switch in an EZGO TXT golf cart is located below the seat on the passenger side of the cart. The toggle switch is usually protected with a black cover above it. However, if the cart is a series drive model, the cart will not have a Run/Tow switch.
Where is the tow switch on an EZGO TXT golf cart?
The Run/Tow switch in an EZGO TXT golf cart is located below the seat on the passenger side of the cart. The toggle switch is usually protected with a black cover above it. However, if the cart is a series drive model, the cart will not have a Run/Tow switch.
What is the run/tow switch on a golf cart for?
The Run / Tow switch on most newer golf cart like the E-Z-Go PDS , RXV or Club Car IQ, Precedent models use a switch for protecting the On Board Computer (OBC). This toggle switch is used to temporarily “kill” the brain of the electric cart for towing, maintenance, and long-term storage.
Why won’t my EZGO golf cart go forward?
The main reason why a EZGO gas golf cart will not go forward is because of a locked up brake, or a faulty solenoid and accelerator. A defective Run/Tow or Forward/Reverse switch can also cause a EZGO to not move forward. You can check out the steps given below to address this problem.
How do you tow a golf cart when it dies?
Any time your cart dies or is in need to being towed, you MUST utilize the tow run switch and flip it to the “TOW” position. Otherwise, the cart will think it is rolling downhill and will try to activate the roll away feature described above. Basically, you’ll be trying to tow a cart which is fighting you to slow itself down.
Where is the tow run switch on a Club Car golf cart?
On the older Club cars, the tow/run switch is located at the top of the battery compartment toward the front under the seat and also at the top in the middle of the four twelve volt batteries. The later Precedents have the tow/run switch located in the lower middle in the rear of the battery compartment.
What does the run tow switch do on a golf cart?
TOW / RUN switches are basically kill switches designed to disable the golf cart. there are several reasons for this switch. Usually, a TOW / RUN switch is only used on electric golf carts, specifically those with a separately excited electrical system with regenerative braking.
Where is the micro switch on ezgo golf cart?
On EZGO gas golf carts, the accelerator micro switch is located behind the forward-reverse lever and right below the seats under the mat near the accelerator pedal.
Where is the EZGO speed controller located?
These speed controllers are located under the EZGO cart seat. Check the speed controller's attachment near the carburetor.
Does golf cart need to be in tow mode to charge?
Your golf cart needs to be charged in Run. Tow should only be used in long term storage or if you are going to remove the battery.
How do you tow a dead golf cart?
Any time your golf cart needs towed or dies, you must use the “tow-run” switch on the cart and switch it to the “TOW” position. You can typically find the tow-run switch inside of the battery compartment of the golf cart in plain sight.
How do you bypass a micro switch?
2:273:45How to create a jumper wire and bypass a safety switch in your Pellet ...YouTubeStart of suggested clipEnd of suggested clipSo I'm just going to use my jumper wire. And we're just going to plug in each end of the leads thatMoreSo I'm just going to use my jumper wire. And we're just going to plug in each end of the leads that went to the vacuum. Switch. Just like that. So now I have successfully bypassed my vacuum switch.
How does a micro switch work?

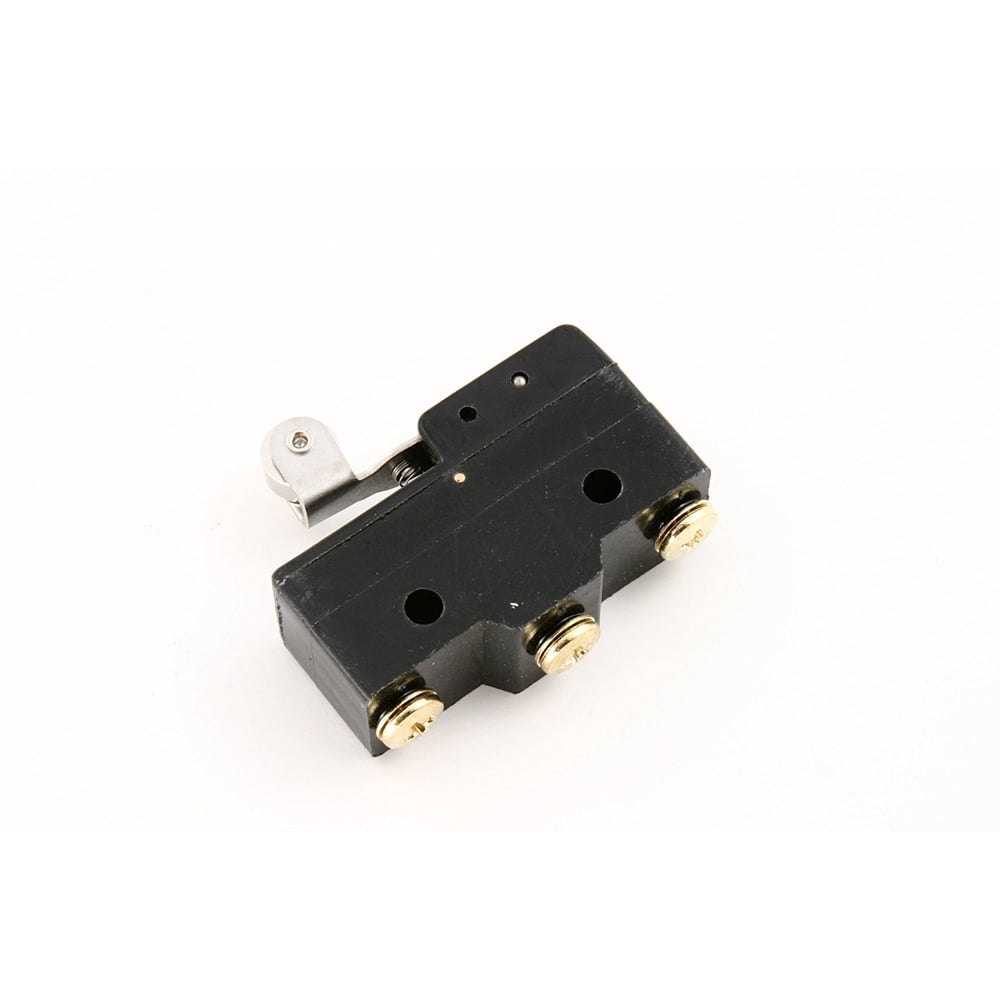

Micro Switches have an actuator which, when depressed, lifts a lever to move the contacts into the required position. Micro switches often make a “clicking” sound when pressed this informs the user of the actuation. Micro switches often contain fixing holes so that they can be easily mounted and secured into place.
How do you test a micro switch?
2:134:10Electric shower problems: How to test a microswitch. - YouTubeYouTubeStart of suggested clipEnd of suggested clipThis is the normal micro switch and normally. The power comes in the top connection. Here and whenMoreThis is the normal micro switch and normally. The power comes in the top connection. Here and when the buttons pressed it goes out here and off to the elements or whatever.
How do you reset a EZ Go golf cart controller?
Reset the battery cable Unplug the negative battery cable (the black wire) before beginning any work on the speed controller. Once disconnected, you should remove the speed controller cover and then reconnect the negative cable.
Where is the speed sensor located on a golf cart?
The speed sensor in a Club Car Precedent golf cart is located on the back of the motor. To remove the sensor, unplug the cables behind the motor. You can use a 5/16-inch socket to remove the pigtail connector and pop off the plastic housing that encases the speed sensor.
How do I know if my EZGO controller is bad?
Press the accelerator and watch to see if the voltage increases. It should increase from a reading of 0 to the full voltage of the battery. If the motor is not turning, the problem may be in the directional switch or motor. If there is no voltage, the controller is bad and must be replaced.
How do you tow a gas golf cart?
0:582:017F Towing - YouTubeYouTubeStart of suggested clipEnd of suggested clipUnder the seat into the toe position. This will allow the rear wheels to freely roll. Once allMoreUnder the seat into the toe position. This will allow the rear wheels to freely roll. Once all vehicles are connected disengage the parking brake of each vehicle that is being towed.
Should I charge my golf cart after every use?
1) Charge your batteries fully after each period of use. The best practice is to charge overnight after you are done using your cart for the day. Even if you only used the cart for 5 minutes, you'll want to give the golf cart batteries a good charge.
What is the run/tow switch on a golf cart?
This toggle switch is used to temporarily “kill” the brain of the electric cart for towing, maintenance, and long-term storage.
Why do you flip the cart switch to the tow position?
If you want to leave your cart at a second home, or anywhere not on charge for a long period of time, you should flip this switch to the “TOW” position to conserve battery life and prevent the amp draw from the controller.
What happens when a tow/run switch is in the run position?
Tow/Run Switch: When the Tow/Run switch is in the RUN position, the vehicle will function normally. When the switch is in the TOW position, power to the OBC and controller is shut off, disabling the vehicle operating circuit.
What to do if a golf cart fails to run?
Also, if the cart ever fails to run and needs to be towed, you should switch this toggle over to the “TOW” position to stop any damage to your golf cart. Flipping the switch to “TOW” when your are working on the electrical system of the car or before any batteries are connected or disconnected. Place Run/Tow switch in TOW position ...
Tow Run
The tow run switch, also sometimes called a tow maintenance switch, is present in many brands and models of modern golf carts. This switch is only installed into golf carts with a separately excited motor which produces regenerative braking. They are not used in traditional golf carts with a series wound motor.
Separately Excited Systems
The tow run switches are used in golf carts with separately excited motor and corresponding controller. The electronic speed controllers used in this application have a bit of logic memory within, similar to your automobile’s stereo when it saves your favorite preset stations.
Roll Away Feature
There is also another use for the tow run switches used in golf carts with a sepex controllers and motors. Most carts with this type of system also have a special feature built into the programming of the controller, called the “Roll Away” feature.
