Where is the voltage regulator in a golf cart?
The voltage regulator in a golf cart is often found under the cart seat; near the battery. It is generally quite small and compact. Most electric golf carts use 12-volt batteries for their operation. As the name indicates, a voltage regulator is capable of controlling the voltage flow that returns from the magneto.
How to replace the voltage regulator on a car?
Replacing the voltage regulator can be done in a few steps. For the sake of safety, always wear your safety glasses and work gloves. To begin, you must first disconnect the battery and charger to avoid any electrical shock. To do this, find and open the battery hatch cover, which is usually located under the seat or under the front hood.
How to check a golf cart battery voltage?
Connect the voltmeter to the battery and get the golf cart running. You can consider applying the hand brake to prevent rolling. Check if the voltage rating is between 14 volts and 16 volts. If it’s less than this range, remove the wire above the starter generator after stopping the cart.
How to test the voltage regulator of your gas club car?
Check if the voltmeter reading is between 14 volts and 16 volts. If it continues to be 12 volts, it indicates that the voltage regulator is faulty. You can follow the steps given below to test the voltage regulator of your gas club car. Connect the voltmeter to the battery and get the golf cart running.
Where is the voltage regulator located?
On most vehicles, the voltage regulator is either located inside of the alternator or mounted to it. But vintage vehicles often have an external voltage regulator, which may be mounted to the fender well, firewall, etc. It's also important to note that some modern vehicles do not have a voltage regulator at all.
How do you test a voltage regulator on a Yamaha golf cart?
Once the new voltage regulator is installed, it is time to test whether it is running correctly. Use a voltmeter and connect it to the terminals of the battery. The reading should be 12.6 volts, provided that there is no spin. Then, press the acceleration pedal on the golf cart.
What does a Yamaha voltage regulator do?
The regulator keeps the voltage coming out of it to a specific amount, which will protect the boats batteries from that damage that overcharging can cause. Seeing that the alternator or stator will produce up to 26 VDC or even more sometimes! If left unchecked by the regulator.
How do I check the voltage on my golf cart?
0:426:18How to Test Golf Cart Batteries - Troubleshooting Batteries - YouTubeYouTubeStart of suggested clipEnd of suggested clipThe battery voltage can be buy tested by probing with a simple voltmeter by pushing the probesMoreThe battery voltage can be buy tested by probing with a simple voltmeter by pushing the probes deeply into the lead not in not into the stainless steel put into the lead.
How do I know if my voltage regulator is bad on my golf cart?
Use a jumper and connect it from the ground of the cart to the stud of the starter generator. If the voltage is 15VDC or more, then the voltage regulator is faulty.
What keeps the battery charged on a gas golf cart?
A golf cart starter primarily serves two functions; turning over the engine to start the cart and act as a key link in getting the battery charged. The starter has enough current to crank the engine. The generator converts the alternating current to direct current and recharges the battery.
What are the symptoms of a faulty regulator rectifier?
Key Signs to Look For You won't have any trouble diagnosing the faulty regulator rectifier if the battery is the cause. You'll note signs right away like poor starts, fluctuating meter readings, and dimmed headlights. around 13 volts, the bike will start to drain the battery.
How do you check a voltage regulator?
Follow these steps to test your voltage regulator:Step 1: Set The Multimeter To Voltage. Ensure your multimeter is on the voltage setting. ... Step 2: Connect The Multimeter To Your Battery. ... Step 3: Check The Multimeter. ... Step 4: Turn Your Vehicle On. ... Step 5: Rev The Engine. ... Step 6: Check The Multimeter Again.
How do I know if my regulator rectifier is bad?
Probably, the most common symptom associated with a bad regulator is flickering, dimming, or pulsing lights. To be more specific, you may notice that the vehicle's: Headlights fluctuate between bright and dim, without you doing anything. High beam isn't working as expected.
What do you do if your golf cart won't charge?
Golf Cart Won't ChargeCheck our outlet to make sure that you're getting power to your electrical outlet.Check the water level in your batteries, using distilled water to refill only. ... Check for corrosion or any loose cables on the batteries.Check the condition of your charger's cables (AC and DC cables).More items...
What should the voltage be on a golf cart battery?
Healthy batteries will indicate about 50 to 52 volts on the voltmeter. Most battery packs hold around 48 volts. Keep in mind that the high number doesn't mean that the batteries are instantly good. This measured value doesn't take the load or cart's power consumption into consideration.
How do I know if my golf cart solenoid is bad?
If your golf cart fails to turn on when you turn the key on, this is the most obvious sign of solenoid failure. The solenoid clicks a little with the ignition system in regular operation; in most cases, a failing solenoid will not snap.
Where is the voltage regulator on a golf cart?
The voltage regulator of your golf cart is usually located under the cart seat along with the batteries. It’s fitted in place using latches or bolts. In an EzGo golf cart, the voltage regulator is often located inside a black plastic shield that is shaped like a pyramid and has three wires of different colors.

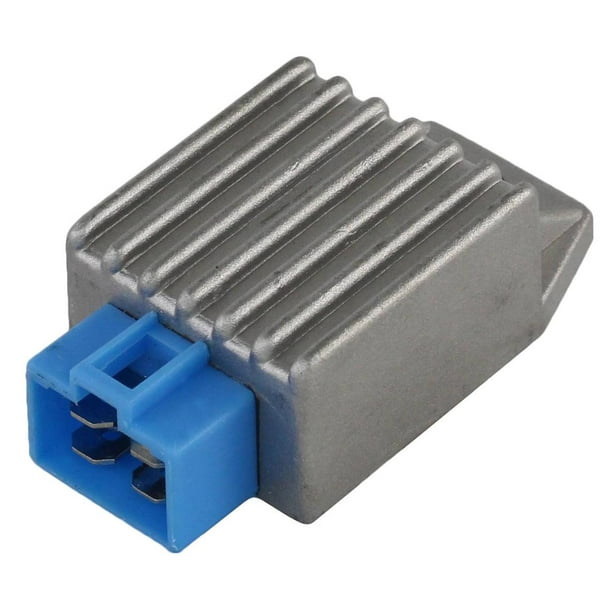

What is a golf car voltage regulator?
A golf car voltage regulator is one of the most important parts of a golf cart. The voltage regulator helps to limit and regulate the power that is sent to a golf cart battery for its recharge. When you start your golf cart, the starter generator performs the role of a starter motor and causes the engine to start.
Why is My Voltage Regulator Overheating?
Some reasons why the voltage regulator of the golf cart is getting overheated could be as follows.
Why is my golf cart battery not charging?
In most cases, a motor problem is likely to be due to a faulty voltage regulator. Having a faulty voltage regulator can lead to other problems as well, such as overcharge causing electrical components to burn out or inability of the golf cart battery to retain a charge.
How to check voltage on gas club car?
You can follow the steps given below to test the voltage regulator of your gas club car. Connect the voltmeter to the battery and get the golf cart running. You can consider applying the hand brake to prevent rolling. Check if the voltage rating is between 14 volts and 16 volts.
How many volts should a starter generator be?
Check if the voltage rating is between 14 volts and 16 volts. If it’s less than this range, remove the wire above the starter generator after stopping the cart.
How to keep a golf cart from rolling forward?
You might want to additionally keep wheel chocks before the front tires so that the cart does not roll forward. Keep a jack below the frame at the back of the golf cart.
What to do if your golf cart is not charging?
Safety glasses. If you are experiencing problems with your golf cart motor, you may need to replace the voltage regulator. A faulty voltage regulator can lead to many problems, including an overcharge which can burn out numerous electrical components or having a golf cart battery that will not hold a charge at all.
How to read voltage on a car?
It's time to use your voltage meter. Connect the meter to the battery poles and then start your engine whilst being careful not to spin. You want the voltage to read over 12.6. Now slowly increase your engine speed. You should find that your voltage increases until you hit around a thousand revolutions per minute (RPM). From that point, the reading will stay in one place. This should be 13. volts, though it is fine if it remains in the spectrum of .5 volts higher or lower than this.
Special offers and product promotions
Amazon Business: Make the most of your Amazon Business account with exclusive tools and savings. Login now
Product description
There was a problem filtering reviews right now. Please try again later.
How to troubleshoot a 2008 Yamaha golf cart controller?
You can troubleshoot the 2008 Yamaha golf cart controller using the following steps: Press the accelerator and check whether the voltage increases up to the full voltage of the battery. If it does not increase, then there is a problem with the controller or the batteries. Examine the batteries and check if they are dead.
Why has my Yamaha golf cart controller just died?
The controller on a Yamaha golf cart can die when the battery voltage is too high , or because of loose wiring in the charger.
How do I test my Yamaha g16 speed controller?
To test the Yamaha g16’s speed controller, check the voltage reading while pressing the accelerator. Test other components such as the batteries, the charger, and the solenoid for their smooth functioning.
What causes a golf cart speed controller to fail?
A faulty solenoid can cause major problems for a golf cart speed controller. Yamaha G22 also faces similar problems like G9 and G16.
What are the problems with a G16 golf cart speed controller?
The most common problems with a G16 golf cart speed controller is overheating and voltage issues.
Why is my Yamaha YDRE speed controller not working?
Generally, defective batteries and the motor are major causes of all the problems of a speed controller on a Yamaha YDRE.
Why is my Yamaha controller hot?
The primary reason why a Yamaha golf cart controller gets too hot is because of overuse. When the golf cart is used for long periods of time, the controller can start overheating.
How many volts should a starter generator output?
It should peak at about 15 volts (the maximum output of the Starter/Generator’s charge ability). If it does increase, then the Starter/Generator is alright. If it doesn’t, there is a problem with the Starter/Generator.
How many volts should a jumper have before it is shorted?
Before the jumper is shorted to ground, the voltage at B+ should, of course, reflect the charge state of the battery (around 12 volts), but when the jumper is touched to ground (which is what the Voltage Regulator does in instantaneous bursts), the voltage at B+ should rise as the motor’s speed is increased.
How to test a starter generator?
In order to test the function of the Starter/Generator and the Voltage Regulator, the wire attached to DF can be removed and while a meter is used to monitor the voltage B+, DF can be shorted to ground (with a jumper) with the motor running. Before the jumper is shorted to ground, the voltage at B+ should, of course, reflect the charge state of the battery (around 12 volts), but when the jumper is touched to ground (which is what the Voltage Regulator does in instantaneous bursts), the voltage at B+ should rise as the motor’s speed is increased. It should peak at about 15 volts (the maximum output of the Starter/Generator’s charge ability). If it does increase, then the Starter/Generator is alright. If it doesn’t, there is a problem with the Starter/Generator. If the voltage does increase, but the voltage at B+ doesn’t increase when the wire is re-attached to DF as the speed of the motor is increased, the Voltage Regulator is the culprit.
