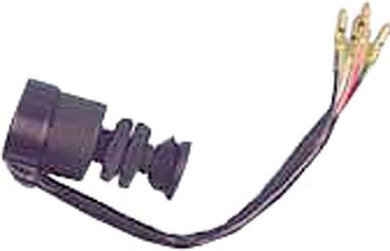

To start up the golf cart, look for the ignition switch, which is positioned next to the steering wheel. Examine the interior of the ignition switch to ensure that nothing is jammed or trapped in the aperture of the switch. Blow into the ignition switch to aid in the removal of any dust and dirt that may have accumulated there.
How do I troubleshoot the 2001 Yamaha golf cart controller?
You can troubleshoot the 2001 Yamaha golf cart controller using the following steps: Check the body of the controller. Examine if there are any scratches. Check the wiring and examine whether proper connections are established.
How to start a golf cart with a bad ignition?
Find the ignition wire on your golf cart. This runs from your ignition switch to the starter solenoid. Check this over for corrosion on either end and make sure you’ve got a tight connection. If the connections use a spade lug, pull the connection loose, wipe off the terminal, and plug it back in again. Try to start the cart now.
How do you test a Yamaha golf cart solenoid?
How to Test Yamaha Golf Cart Solenoid First, disconnect the two small wires connecting the solenoid. Take a jumper cable and connect them from the positive and negative posts of the battery pack to the two posts on the solenoid that you just disconnected.
How do you troubleshoot a golf cart?
On gasoline carts, check the battery that turns the engine over to make sure it is charged. On Electric carts, the battery pack should be checked for a full charge. If there is no click when the pedal is pushed, then there is no solenoid activity. How Do You Troubleshoot a Gasoline Golf Cart? How Do You Troubleshoot An Electric Golf Cart?
Why does my Yamaha golf cart not start?
As the main source of power to your electric golf cart, the batteries are commonly the cause for why your electric golf cart won't start. Acid-based batteries are typically used for electric golf carts and must be recharged in order to work properly.
How do you turn an electric golf car on?
0:5910:29Consumer Golf Cart Operation and Maintenance Basics - YouTubeYouTubeStart of suggested clipEnd of suggested clipTo start the vehicle turn the key to the on position. And make sure nothing is in your immediate.MoreTo start the vehicle turn the key to the on position. And make sure nothing is in your immediate. Path. Check the vehicles direction by placing the forward reverse switch in the desired.
Where is the micro switch on a Yamaha golf cart?
In a golf cart, you're going to find a large number of these switches throughout its build. For example, there is a micro switch located on the accelerator pedal. This switch activates when you push the pedal and sends a signal to the solenoid.
Is there a reset button on Yamaha electric golf cart?
Electric golf cart motors have a reset button on their chassis which is designed to put your motor back into its original factory state.
How do electric golf carts work?
The electric motor receives electric current through the electrical system to move faster or slow down. When the electric motor receives the electric current, it turns the wheel to get the golf cart to move. The more current it produces, the faster it turns!
How do you start a golf cart that won't start?
First, try this: turn the key switch on, hit the accelerator, and check for a clicking noise. If you don't hear clicking, it's time to take a look at your cart's batteries. Make sure the battery is fully charged and the terminals are cleaned and secure. Next, see how the water level in the battery is holding up.
What does the micro switch do on a golf cart?
Microswitches are used in many golf cart applications. They are used at the accelerator pedal to provide a signal to the solenoid that you have depressed the pedal and are ready to go. In an electric golf cart, the solenoid sends power to the controller to move the cart.
How does a micro switch work?
Micro Switches have an actuator which, when depressed, lifts a lever to move the contacts into the required position. Micro switches often make a “clicking” sound when pressed this informs the user of the actuation. Micro switches often contain fixing holes so that they can be easily mounted and secured into place.
How do you test a micro switch on a golf cart?
Using a jumper wire, jump the power from the 48V positive terminal to the small positive terminal on the solenoid. Turn the key of the cart to the ON position and press the accelerator. Check if the wheels are turning normally. If the wheels aren't turning, recheck the jumper connections and try steps 3 and 4 again.
What would cause an electric golf cart not to move?
Solenoid Wear When there is a disruption in the flow of the electrical current, your cart will not operate. A common reason for current disruption is solenoid wear. Each time the solenoid activates as you press down on the gas pedal, the solenoid compounds down onto a thin metal contact plate.
Why does my electric golf cart have no power?
The main reason why a Club Car golf cart has no power is due to a faulty regulator or bad battery. One of the most common reasons could be a bad regulator and the connections to the regulator needs to be checked. The solenoid must have at least 12V charge while being operational which needs to be validated.
Where is the reset button on golf cart motor?
First, you'll want to reset your motor. It should have a small reset button (Usually it will be red) located near the main battery supply. Hit the reset button and then put the cover back on the motor. The next step would be to recharge your cart and try turning it on again. If it starts up then you're in luck!
How do you start an ezgo electric golf cart?
0:112:14How To Start a Golf Cart - YouTubeYouTubeStart of suggested clipEnd of suggested clipForward neutral and reverse okay so what we do is we take the key. We move it to on we don't goMoreForward neutral and reverse okay so what we do is we take the key. We move it to on we don't go anywhere we're actually on a slight hill.
How do you work an EZ Go golf cart?
To safely start an E‑Z‑GO vehicle, turn the key to “on” – select “forward” or “reverse” – release the parking brake – then SLOWLY depress the accelerator pedal. NEVER drive any E‑Z‑GO vehicle under the influence of drugs or alcohol. NEVER leave children unattended or allow children to play on the vehicle.
What would cause an electric golf cart not to move?
Solenoid Wear When there is a disruption in the flow of the electrical current, your cart will not operate. A common reason for current disruption is solenoid wear. Each time the solenoid activates as you press down on the gas pedal, the solenoid compounds down onto a thin metal contact plate.
Where is the controller on ezgo golf cart?
All EZ-GO speed controllers are equipped with a maintenance switch that needs to be flipped before you begin work on repairing the problem. You will likely find the switch under the seat of your golf car,t but if you're having trouble finding it, consult your owner's manual.
What does absence of spin mean on Yamaha golf cart?
The absence of a spin in this test could mean your Yamaha golf cart’s battery pack is failing.
Why is my Yamaha golf cart not clicking?
Check the controller if you find that your Yamaha golf cart’s solenoid is not clicking after you have installed a new set of batteries. This can happen and you must first check the controller.
Why My Yamaha Golf Cart Solenoid Clicks but Won’t Move?
The main cause of a Yamaha golf cart clicking but not moving, is a faulty controller or solenoid.
How to check solenoid on a G9 golf cart?
The solenoid can be checked using an old screwdriver to jump the terminals. Your G9 Yamaha golf cart’s key must be in the start position. If the starter turns when you do this, your solenoid needs to be replaced. You must be careful while doing this crude test; there could be sparks when the two terminals touch.
How to connect a battery to a solenoid?
Take a jumper cable and connect them from the positive and negative posts of the battery pack to the two posts on the solenoid that you just disconnected.
Why do you need a wiring diagram?
A clear wiring diagram will help in ensuring that the cables are properly reconnected if you remove them for testing. In the solenoid, for example, the contacts inside can get jammed over a period. These have to be checked, cleaned, and re-fixed. If it still doesn’t work it has to be replaced.
How to troubleshoot a 2008 Yamaha golf cart controller?
You can troubleshoot the 2008 Yamaha golf cart controller using the following steps: Press the accelerator and check whether the voltage increases up to the full voltage of the battery. If it does not increase, then there is a problem with the controller or the batteries. Examine the batteries and check if they are dead.
Why has my Yamaha golf cart controller just died?
The controller on a Yamaha golf cart can die when the battery voltage is too high , or because of loose wiring in the charger.
How do I test my Yamaha g16 speed controller?
To test the Yamaha g16’s speed controller, check the voltage reading while pressing the accelerator. Test other components such as the batteries, the charger, and the solenoid for their smooth functioning.
What causes a golf cart speed controller to fail?
A faulty solenoid can cause major problems for a golf cart speed controller. Yamaha G22 also faces similar problems like G9 and G16.
What are the problems with a G16 golf cart speed controller?
The most common problems with a G16 golf cart speed controller is overheating and voltage issues.
Why is my Yamaha YDRE speed controller not working?
Generally, defective batteries and the motor are major causes of all the problems of a speed controller on a Yamaha YDRE.
Why is my Yamaha controller hot?
The primary reason why a Yamaha golf cart controller gets too hot is because of overuse. When the golf cart is used for long periods of time, the controller can start overheating.
How Do You Troubleshoot a Gasoline Golf Cart?
Check the fuel level, regardless of what the gauge says. I have seen a stuck fuel tank float baffle a mechanic for three hours while looking for a reason for a “full” tank not delivering the fuel.
Why won't my golf cart start?
Your golf cart won’t start if there is a problem with the fuel, airflow, or electrical system. Any one of these areas can cause your golf cart to fail to start. Try these steps to troubleshoot and pinpoint the exact failure point.
How Do You Know When Golf Cart Batteries Are Going Bad?
As batteries start to lose their health and take longer to accelerate, you find that you can’t hit the top speed anymore or have problems climbing hills.
Why Does The Golf Cart Battery Drain When Everything Is Off?
Disconnect the negative battery cable ground wire and connect your multimeter set to measure the voltage between the battery terminal and the ground wire. If you’ve turned everything off and are still getting a reading, then you have a faulty component in the electrical system. At this point, we’ll need to start pulling fuses and disconnecting things one of the time to find out what is draining the battery.
How Do I Know If My Golf Cart Solenoid Is Bad?
Older golf carts used a series of solenoids to drive the cart forward and backward and set the speed of that motion.
How to tell if a golf cart is bad?
Symptoms Of A Bad Solenoid 1 The first and most obvious symptom is the golf cart won’t start. If it is a gas-powered cart, the engine doesn’t turn over, and if it is an electric cart, the cart doesn’t move. 2 The engine on the gas-powered cart starts, but the starter doesn’t disengage after starting. When the contacts weld together, the power to the starter never stops and will result in destroying the starter, the wiring, or the flywheel. 3 The relay clicks and works sometimes, and sometimes it doesn’t. This can be a faulty wire connection, but can also mean the solenoid is beginning to fail. 4 The golf cart solenoid doesn’t click when the accelerator is pressed. This again can be faulty wiring or a failed solenoid. 5 The golf cart solenoid clicks, but nothing happens. This will sometimes be the result of burned contacts or contacts no longer coming in contact with each other as shown in the illustration at the bottom of this page. This can also be the result of not enough voltage amps reaching the solenoid control connection due to a low battery.
Why does my golf cart not click?
This can be a faulty wire connection, but can also mean the solenoid is beginning to fail. The golf cart solenoid doesn’t click when the accelerator is pressed. This again can be faulty wiring or a failed solenoid.
