- Mount the Lights Disconnect the chassis black wire from the negative battery terminal on your golf cart. ...

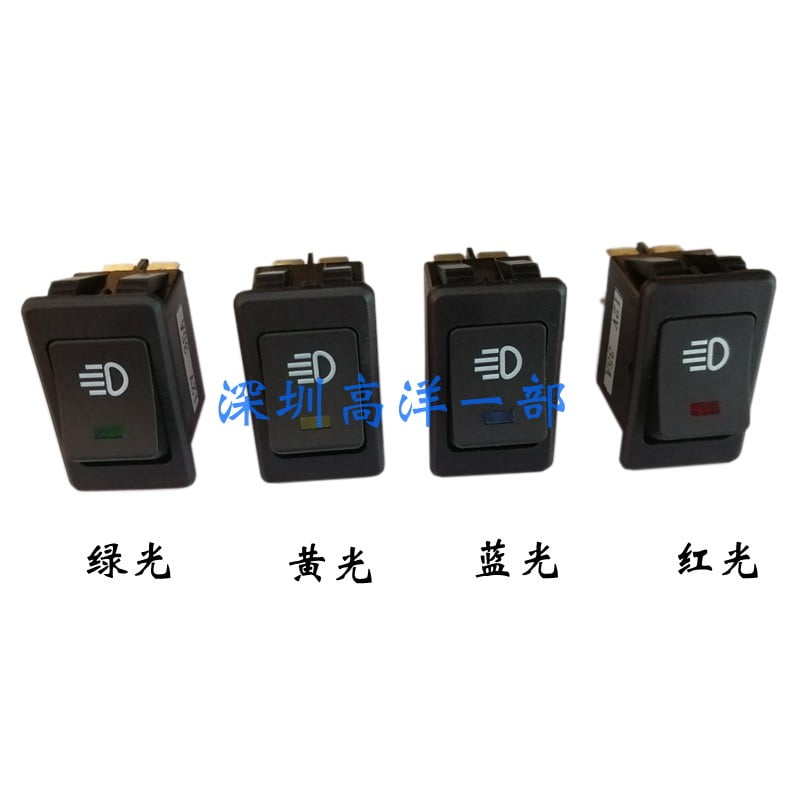

- Mount the Toggle Switch Mount the toggle switch for the lights on the driver's side of the dash. ...
- Connect the Electrical Connect one of the leads of the inline fuse holders to the positive terminal of the battery with a ring terminal. ...
- Wire the Lights Use 16-gauge wire and connect the second terminal of the toggle switch to the headlights' positive connection with a butt connector.
- Secure the Wiring Cover all of the connections with electrical tape and then secure the wiring to the body of the golf cart with nylon wire ties.
- Set the Toggle Switch
Where can I find golf cart wiring diagrams?
Cartaholics has all gas golf cart wiring diagrams and all electric golf cart wiring diagrams in the Resource Sections of the Forum. Cartaholics also has a Golf Cart Battery Charger Wiring Diagram for all model golf cart battery chargers.
How do you turn on a turn signal on a golf cart?
Golf cart turn signal switch with horn on 7 wire pete s carts. The lights work as far as turning on and doing as they should in that sense. Just remove the blue or orange jumper leads and connect your turn signal adapter leads.
How do you Mount headlights on a golf cart?
Go to the battery and disconnect the negative terminal. A golf cart can have up to six batteries, so disconnect the negative terminal from each of the batteries. The batteries can be found under the front seat. Mount the headlights. For best visibility, try to mount them as high as possible. Use the mounting brackets to clamp the headlights.
How do you wire a toggle switch headlight switch?
Extend the lead to the center terminal of the toggle switch. Use an insulated female spade terminal to connect the lead to the switch. Get a 16-gauge wire. Run it from the toggle switch at the second terminal all the way to the headlights. Use a solderless butt connector to connect the wire to the headlights. Secure the wires with nylon wire ties.
How do you hook up a light switch to a golf cart?
How to Wire Lights to a Golf Cart: Step-by-Step InstructionsMount the Lights. Disconnect the chassis black wire from the negative battery terminal on your golf cart. ... Mount the Toggle Switch. Mount the toggle switch for the lights on the driver's side of the dash. ... Wire the Lights. ... Secure the Wiring. ... Set the Toggle Switch.
How do you wire lights on a Club Car golf cart?
9:1112:18Club Car DS Golf Cart Light Kit Install - YouTubeYouTubeStart of suggested clipEnd of suggested clipSo you can get to the back side of it. Then you can install your light switch with the nut on theMoreSo you can get to the back side of it. Then you can install your light switch with the nut on the back. Then you can reconnect your wires to the back of the light switch.
How do you wire lights on a Yamaha golf cart?
3:558:17Light Kit for Yamaha® Drive® | How to Install Video | Madjax® Golf Cart ...YouTubeStart of suggested clipEnd of suggested clipLight in a long end goes to the passenger side tail light we want to do feed the long end over yourMoreLight in a long end goes to the passenger side tail light we want to do feed the long end over your passenger tire wheel. And connect that to your rear taillight.
How do you get 12 volts on a 36 volt golf cart?
0:032:32How to Isolate 12 Volts in a Series of Golf Cart Batteries - YouTubeYouTubeStart of suggested clipEnd of suggested clipBecause the two wires that run down to the motor. Or the solenoid. And motor. Come off of theseMoreBecause the two wires that run down to the motor. Or the solenoid. And motor. Come off of these terminals.
How do you wire 12 volt lights on a 48 volt golf cart?
0:061:09How to install golf cart 48 volt converter - YouTubeYouTubeStart of suggested clipEnd of suggested clipNegative goes to your negative side and these your black and yellow will be your positive andMoreNegative goes to your negative side and these your black and yellow will be your positive and negative going out to your lights. Or. Whatever else you're trying to power at 12 volts.
How do you install LED lights on a golf cart?
0:094:01LEDGlow | How To Install Million Color Golf Cart Add-On LightsYouTubeStart of suggested clipEnd of suggested clipPlace an included double-sided adhesive strip onto the back of the tube. And attach the tube to theMorePlace an included double-sided adhesive strip onto the back of the tube. And attach the tube to the dash panel of the golf. Cart.
Can you add lights to Yamaha golf cart?
Yamaha Golf Cart Light Kits We not only sell complete light kits, but we also have just the bezels, headlights, or tail lights alone. All of our complete light kits have templates for cutting and all necessary hardware included for easy installation.
How do you put lights on a gas golf cart?
7:0512:18golf cart auxiliary LED lights how to install - YouTubeYouTubeStart of suggested clipEnd of suggested clipAnd you just hand thread it in initially. There's four total bolts two for each side. And then onceMoreAnd you just hand thread it in initially. There's four total bolts two for each side. And then once you've got those hand tightened in you can adjust it to aim however you want the light to be aimed.
How do I fix the lights on my EZ Go golf cart?
How to Fix EZGO RXV headlights not workingFirst, check all the wires used to establish a circuit connection.Check if the wires are torn or not connected properly.Use the DVOM to check the amount of power going to the fuse.If there is no power, then the fuse is blown.More items...
Can you pull 12 volts off a 36 volt system?
Yes, hook positive wire to positive post on one battery and the negative to the nagative on the same battery. But, best to use a 36v to 12 volt converter. Golf cart shops sell them everyday.... Yes, pick a positive and start with the same battery and start checking negatives until you get 12V.
What are the 4 terminals on a golf cart motor?
If you're unsure if it is working, it is simple to test. There are four terminals on a solenoid: usually two large and two small. The small terminals are connected to the battery, and the large terminals are connected to the motor. Disconnect all wires from the two large terminals.
How do you install a 12 volt outlet on a golf cart?
Pull the wire all through the body of the cart and up into the battery container. Now, attach the negative wire to the negative – usually black – terminal on your 12-volt battery. Drag the positive wire through the cart in the same way and connect it to the positive terminal.
How to test a light switch?
Test the lights by turning the toggle switch to the on position. If the lights do not come on, check your wiring and battery terminals.
How many batteries does a golf cart have?
Go to the battery and disconnect the negative terminal. A golf cart can have up to six batteries, so disconnect the negative terminal from each of the batteries. The batteries can be found under the front seat.
How to connect a fuser to a battery?
Take the inline fuser holder and connect one end of the lead to the positive battery terminal. You will need a solderless ring terminal to connect these pieces.
How to secure wires in a house?
Secure the wires with nylon wire ties. It is very important to make sure the wires are secured. Make sure to put electrical tape over the connections.
Can you replace lights on a golf cart?
Replacing lights in a golf cart can be easy with the right tools. It's easy to replace or add lights to a golf cart. This technique can be used for any golf cart, whether it is powered by gas or electricity. Before beginning, gather all of your tools and materials in one spot that you can easily reach.
How To Wire Golf Cart Lights
If you want to drive your golf car on the street, in low light, or at night, you need lights. Most golf carts don’t come with lights, so you’ll need to install lights. Fortunately, it isn’t too hard—here’s how to wire golf cart lights to your vehicle.
Step 1
Locate your golf car’s battery and disconnect the negative terminal from the battery. If the car has multiple batteries, disconnect all negative terminals.
Step 2
Mount the headlights as high as possible on the golf cart using the mounting brackets. It’s best to mount the headlights either on the front bumper or rollbar on the top of your vehicle.
Step 3
Determine where you’ll mount the toggle switch for the lights. Most people mount the toggle switch on the left side of the dashboard for easy access, but it’s possible to mount it elsewhere if a different location works better for you. Drill a ½-inch hole to mount the switch.
Step 4
Take one lead of the inline fuse holder and connect it to the positive battery terminal using a solderless ring terminal.
Step 5
Use a butt connector to attach the other lead of the inline fuse holder to the center terminal of the toggle switch. You’ll need to use a female spade terminal to connect the lead to the switch.
Step 6
Use a 16-gauge wire to connect the second terminal of the toggle switch to the headlights. Connect the wire and the headlights using solderless butt connectors.
